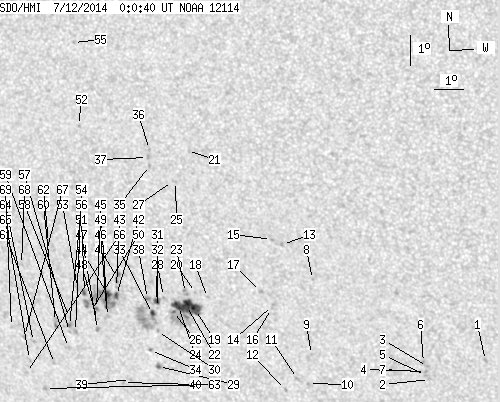

SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.96 | 219.55 | 23.12 | 134.81 | -20.15 | 148.02 | -27.12 | 133.37 | 0.5900 | 293.9 | 33.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.09 | -21.64 | 159.48 | -15.66 | 149.77 | 0.5002 | 786.0 | 603.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.32 | 157.48 | -17.66 | 147.50 | 0.5244 | 647.0 | 448.3 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -21.88 | 157.47 | -17.67 | 146.99 | 0.5191 | 828.0 | 656.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.05 | 157.38 | -17.76 | 147.05 | 0.5220 | 776.0 | 674.0 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -22.19 | 157.36 | -17.78 | 147.18 | 0.5238 | 613.0 | 516.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.75 | 157.35 | -17.79 | 146.66 | 0.5185 | 856.0 | 740.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.06 | 157.17 | -17.97 | 146.76 | 0.5237 | 574.0 | 485.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -19.05 | 153.87 | -21.27 | 138.48 | 0.5193 | 765.0 | 544.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -21.57 | 153.47 | -21.67 | 141.20 | 0.5503 | 722.0 | 587.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.56 | 153.20 | -21.94 | 142.06 | 0.5634 | 731.0 | 567.9 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -22.40 | 152.83 | -22.31 | 141.42 | 0.5649 | 728.0 | 585.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -22.79 | 152.34 | -22.80 | 141.29 | 0.5735 | 615.0 | 501.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -17.92 | 152.99 | -22.15 | 135.78 | 0.5164 | 547.0 | 591.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -19.96 | 152.35 | -22.79 | 137.76 | 0.5438 | 763.0 | 594.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -17.77 | 152.63 | -22.51 | 135.11 | 0.5186 | 703.0 | 605.8 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -20.06 | 152.29 | -22.85 | 137.84 | 0.5454 | 602.0 | 556.8 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -19.50 | 151.99 | -23.15 | 136.73 | 0.5427 | 761.0 | 577.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -19.76 | 150.07 | -25.07 | 134.86 | 0.5647 | 676.0 | 546.0 | |
| 8.90 | 51.20 | 5.37 | 31.05 | -20.17 | 149.57 | -25.57 | 134.86 | 0.5738 | 947.7 | 242.3 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -19.60 | 149.67 | -25.47 | 134.21 | 0.5674 | 671.0 | 602.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -14.95 | 150.08 | -25.06 | 127.90 | 0.5207 | 481.0 | 509.8 | |
| 8.90 | -19.00 | 5.38 | -19.00 | -20.05 | 149.27 | -25.87 | 134.37 | 0.5757 | 957.9 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.46 | -19.61 | 149.31 | -25.83 | 133.84 | 0.5712 | 707.0 | 718.4 | |
| 6.99 | -19.00 | 4.24 | -19.00 | -20.09 | 148.97 | -26.17 | 134.12 | 0.5791 | 769.7 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -15.97 | 149.52 | -25.62 | 128.87 | 0.5360 | 588.0 | 498.9 | |
| 0.54 | -19.00 | 0.33 | -19.00 | -20.26 | 148.76 | -26.38 | 134.12 | 0.5829 | 396.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -15.97 | 149.42 | -25.72 | 128.76 | 0.5372 | 663.0 | 603.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -19.77 | 148.48 | -26.66 | 133.19 | 0.5812 | 503.0 | 585.3 | |
| 0.91 | 2.00 | 0.57 | 1.25 | -22.14 | 147.83 | -27.31 | 135.58 | 0.6093 | 706.1 | 578.8 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -20.96 | 148.04 | -27.10 | 134.28 | 0.5965 | 498.0 | 369.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -20.15 | 148.20 | -26.94 | 133.39 | 0.5876 | 348.0 | 347.7 | |
| 1.91 | 5.17 | 1.16 | 3.16 | -19.95 | 148.20 | -26.94 | 133.13 | 0.5858 | 857.1 | 611.7 | |
| 2.09 | 33.41 | 1.28 | 20.57 | -20.35 | 147.97 | -27.17 | 133.44 | 0.5917 | 674.8 | 21.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -21.61 | 147.65 | -27.49 | 134.72 | 0.6063 | 589.0 | 388.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -15.48 | 148.67 | -26.47 | 127.25 | 0.5416 | 785.0 | 587.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -14.96 | 148.75 | -26.39 | 126.52 | 0.5365 | 679.0 | 519.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -15.22 | 148.64 | -26.50 | 126.82 | 0.5399 | 718.0 | 626.8 | |
| 0.00 | 2.81 | 0.00 | 1.72 | -19.86 | 147.89 | -27.25 | 132.69 | 0.5882 | 722.0 | 648.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -22.62 | 146.68 | -28.46 | 135.04 | 0.6248 | -806.0 | -672.8 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -22.73 | 146.39 | -28.75 | 134.90 | 0.6285 | -728.0 | -635.2 | |
| 0.00 | 4.45 | 0.00 | 2.73 | -19.19 | 146.91 | -28.23 | 130.85 | 0.5926 | 590.0 | 635.4 | |
| 1.82 | 37.13 | 1.12 | 23.08 | -19.80 | 146.76 | -28.38 | 131.51 | 0.5994 | 625.7 | -188.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -19.53 | 146.81 | -28.33 | 131.20 | 0.5966 | 620.0 | 505.0 | |
| 3.63 | -42.00 | 2.25 | -42.00 | -19.74 | 146.44 | -28.70 | 131.13 | 0.6023 | 598.8 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.87 | -20.51 | 146.28 | -28.86 | 131.99 | 0.6104 | -454.0 | -359.9 | |
| 0.82 | -42.00 | 0.51 | -42.00 | -20.18 | 146.31 | -28.83 | 131.59 | 0.6073 | -957.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.37 | -20.96 | 145.81 | -29.33 | 132.14 | 0.6191 | -917.0 | -739.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -20.63 | 145.88 | -29.26 | 131.77 | 0.6155 | -752.0 | -610.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -20.26 | 145.93 | -29.21 | 131.33 | 0.6120 | -799.0 | -614.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -20.37 | 145.68 | -29.46 | 131.24 | 0.6155 | -525.0 | -522.4 | |
| 1.00 | 2.91 | 0.62 | 1.81 | -19.74 | 145.59 | -29.55 | 130.33 | 0.6112 | -751.0 | -526.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -14.27 | 146.31 | -28.83 | 123.15 | 0.5603 | 738.0 | 599.7 | |
| 0.00 | 2.45 | 0.00 | 1.53 | -19.58 | 145.36 | -29.78 | 129.91 | 0.6124 | -693.0 | -656.4 | |
| 0.00 | 2.54 | 0.00 | 1.62 | -21.06 | 144.96 | -30.18 | 131.49 | 0.6285 | -733.0 | -613.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -11.62 | 146.48 | -28.66 | 119.06 | 0.5396 | 691.0 | 539.8 | |
| 0.45 | 2.09 | 0.29 | 1.33 | -20.87 | 144.78 | -30.36 | 131.08 | 0.6288 | -948.8 | -794.4 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -21.07 | 144.73 | -30.41 | 131.30 | 0.6309 | -578.0 | -498.3 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -20.60 | 144.84 | -30.30 | 130.79 | 0.6260 | -817.0 | -654.3 | |
| 0.00 | 2.27 | 0.00 | 1.46 | -21.61 | 144.57 | -30.57 | 131.84 | 0.6370 | -591.0 | -476.9 | |
| 0.00 | 4.45 | 0.00 | 2.84 | -20.75 | 144.27 | -30.87 | 130.49 | 0.6331 | -757.0 | -664.4 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -22.18 | 143.89 | -31.25 | 131.97 | 0.6483 | -635.0 | -578.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -18.12 | 144.57 | -30.57 | 127.25 | 0.6095 | -812.0 | -657.1 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -23.05 | 143.32 | -31.82 | 132.55 | 0.6608 | -661.0 | -511.0 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -21.46 | 143.26 | -31.88 | 130.53 | 0.6489 | -802.0 | -671.6 | |
| 0.00 | 2.09 | 0.00 | 1.37 | -22.08 | 142.95 | -32.19 | 131.05 | 0.6568 | -505.0 | -372.5 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -22.53 | 142.71 | -32.43 | 131.41 | 0.6626 | -714.0 | -538.3 | |
| 0.00 | 2.00 | 0.00 | 1.30 | -21.30 | 142.95 | -32.19 | 130.08 | 0.6509 | -624.0 | -421.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -18.89 | 143.40 | -31.74 | 127.30 | 0.6280 | -838.0 | -637.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -20.98 | 142.53 | -32.61 | 129.33 | 0.6528 | -570.0 | -526.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
