SDO HMI 2014-07-12 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.69 | 243.47 | 22.27 | 149.01 | -20.29 | 147.92 | -26.67 | 134.03 | 0.5867 | 174.2 | 39.3 | |
|
previous
or next observation for the same group /

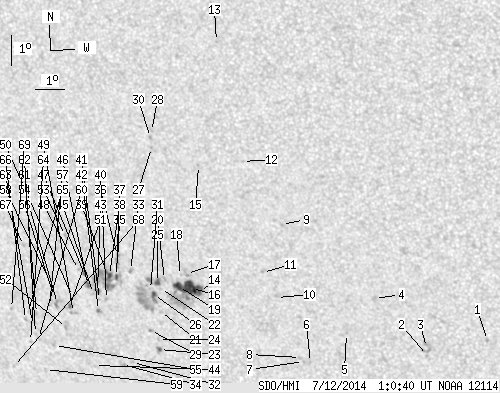

back to the solar disc SDO HMI 2014-07-12 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.98 | -21.62 | 159.48 | -15.11 | 150.62 | 0.4960 | 843.0 | 600.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.17 | 157.36 | -17.23 | 147.97 | 0.5192 | 619.0 | 520.3 | |
| 0.00 | 7.17 | 0.00 | 4.14 | -21.90 | 157.36 | -17.23 | 147.67 | 0.5159 | 388.0 | 627.1 | |
| 0.00 | 2.27 | 0.00 | 1.31 | -20.28 | 155.78 | -18.81 | 143.46 | 0.5099 | 824.0 | 505.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -21.49 | 154.65 | -19.94 | 143.36 | 0.5338 | 546.0 | 378.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -22.50 | 153.22 | -21.37 | 142.72 | 0.5578 | 682.0 | 539.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -22.48 | 152.98 | -21.61 | 142.38 | 0.5596 | 621.0 | 517.6 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -22.34 | 152.90 | -21.69 | 142.12 | 0.5589 | 306.0 | 368.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -17.90 | 152.89 | -21.70 | 136.33 | 0.5116 | 733.0 | 597.6 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -20.34 | 152.37 | -22.22 | 138.97 | 0.5423 | 647.0 | 613.4 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -19.51 | 152.00 | -22.59 | 137.44 | 0.5373 | 720.0 | 624.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.88 | 151.80 | -22.79 | 131.97 | 0.5031 | 702.0 | 523.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -12.05 | 151.32 | -23.26 | 125.07 | 0.4739 | 791.0 | 711.5 | |
| 1.73 | 57.11 | 1.04 | 34.50 | -20.25 | 149.65 | -24.94 | 135.66 | 0.5682 | 784.2 | 179.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -16.05 | 150.25 | -24.33 | 130.42 | 0.5221 | 623.0 | 602.1 | |
| 16.71 | -14.00 | 10.05 | -14.00 | -20.12 | 149.38 | -25.20 | 135.20 | 0.5696 | 963.4 | 999999 | |
| 0.00 | 3.81 | 0.00 | 2.29 | -19.62 | 149.29 | -25.30 | 134.44 | 0.5659 | 590.0 | 667.6 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -19.70 | 149.06 | -25.53 | 134.29 | 0.5689 | 659.0 | 566.3 | |
| 5.45 | -14.00 | 3.29 | -14.00 | -20.07 | 148.93 | -25.66 | 134.64 | 0.5738 | 790.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -19.85 | 148.46 | -26.13 | 133.85 | 0.5765 | 843.0 | 669.6 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -20.93 | 148.11 | -26.47 | 134.90 | 0.5900 | 269.0 | 281.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -20.15 | 148.26 | -26.33 | 134.04 | 0.5814 | 372.0 | 340.8 | |
| 0.82 | 3.27 | 0.51 | 2.03 | -22.22 | 147.82 | -26.77 | 136.22 | 0.6049 | 655.3 | 486.5 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -21.88 | 147.85 | -26.74 | 135.84 | 0.6014 | 449.0 | 404.8 | |
| 2.27 | 8.72 | 1.38 | 5.30 | -19.96 | 148.19 | -26.40 | 133.71 | 0.5803 | 852.4 | 653.9 | |
| 1.91 | 35.86 | 1.16 | 21.97 | -20.36 | 147.97 | -26.62 | 134.01 | 0.5863 | 684.7 | 14.8 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -15.52 | 148.68 | -25.91 | 127.89 | 0.5355 | 761.0 | 620.0 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -15.00 | 148.75 | -25.84 | 127.16 | 0.5303 | 682.0 | 534.5 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -21.58 | 147.62 | -26.97 | 135.22 | 0.6010 | 458.0 | 360.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -15.19 | 148.69 | -25.90 | 127.40 | 0.5327 | 773.0 | 634.7 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -20.20 | 147.89 | -26.70 | 133.72 | 0.5856 | 415.0 | 347.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -22.70 | 146.71 | -27.88 | 135.70 | 0.6199 | -788.0 | -607.1 | |
| 0.00 | 2.27 | 0.00 | 1.39 | -19.59 | 147.27 | -27.31 | 132.28 | 0.5865 | 808.0 | 579.9 | |
| 0.00 | 2.63 | 0.00 | 1.67 | -22.78 | 146.32 | -28.27 | 135.42 | 0.6244 | -623.0 | -570.4 | |
| 0.00 | 3.81 | 0.00 | 2.33 | -19.34 | 146.85 | -27.74 | 131.52 | 0.5888 | 734.0 | 584.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -19.10 | 146.89 | -27.70 | 131.24 | 0.5863 | 724.0 | 713.7 | |
| 1.27 | 45.94 | 0.78 | 28.39 | -19.81 | 146.72 | -27.87 | 132.02 | 0.5942 | 595.6 | -28.1 | |
| 2.00 | -37.00 | 1.23 | -37.00 | -19.78 | 146.47 | -28.12 | 131.74 | 0.5966 | 569.0 | 999999 | |
| 0.27 | -37.00 | 0.17 | -37.00 | -19.65 | 146.38 | -28.20 | 131.49 | 0.5964 | 608.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -20.59 | 146.20 | -28.39 | 132.55 | 0.6064 | -468.0 | -495.3 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -20.60 | 145.93 | -28.65 | 132.31 | 0.6092 | -712.0 | -635.9 | |
| 0.45 | 2.09 | 0.28 | 1.31 | -20.97 | 145.82 | -28.77 | 132.68 | 0.6135 | -864.0 | -729.9 | |
| 0.82 | 2.09 | 0.51 | 1.30 | -20.30 | 145.92 | -28.67 | 131.90 | 0.6067 | -684.6 | -504.9 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -22.85 | 145.24 | -29.35 | 134.49 | 0.6354 | -436.0 | -393.1 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -20.40 | 145.75 | -28.84 | 131.88 | 0.6094 | -666.0 | -576.5 | |
| 1.36 | -37.00 | 0.85 | -37.00 | -20.11 | 145.59 | -29.00 | 131.34 | 0.6086 | -813.1 | 999999 | |
| 1.09 | 2.91 | 0.68 | 1.81 | -19.75 | 145.55 | -29.04 | 130.83 | 0.6059 | -779.6 | -570.7 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -19.62 | 145.36 | -29.23 | 130.48 | 0.6070 | -863.0 | -745.0 | |
| 0.00 | 2.27 | 0.00 | 1.44 | -21.07 | 144.86 | -29.73 | 131.92 | 0.6241 | -608.0 | -616.4 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -20.53 | 144.94 | -29.65 | 131.30 | 0.6188 | -695.0 | -684.0 | |
| 0.54 | 1.82 | 0.34 | 1.15 | -20.87 | 144.75 | -29.84 | 131.57 | 0.6236 | -923.2 | -786.9 | |
| 0.00 | 2.00 | 0.00 | 1.27 | -21.59 | 144.48 | -30.11 | 132.23 | 0.6323 | -670.0 | -560.0 | |
| 0.00 | 1.73 | 0.00 | 1.07 | -18.50 | 145.09 | -29.50 | 128.73 | 0.6007 | -713.0 | -566.7 | |
| 0.00 | 4.36 | 0.00 | 2.77 | -20.79 | 144.32 | -30.27 | 131.07 | 0.6273 | -741.0 | -748.1 | |
| 0.00 | 1.91 | 0.00 | 1.23 | -22.22 | 143.87 | -30.72 | 132.48 | 0.6435 | -597.0 | -558.0 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -20.39 | 144.22 | -30.37 | 130.47 | 0.6251 | -519.0 | -423.8 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -20.87 | 144.00 | -30.59 | 130.89 | 0.6312 | -593.0 | -535.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -19.93 | 144.17 | -30.42 | 129.82 | 0.6220 | -604.0 | -487.1 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -23.06 | 143.31 | -31.28 | 133.02 | 0.6557 | -630.0 | -452.7 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -22.01 | 143.31 | -31.28 | 131.73 | 0.6473 | -533.0 | -473.4 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -21.16 | 143.44 | -31.15 | 130.77 | 0.6393 | -725.0 | -535.7 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -21.84 | 143.23 | -31.36 | 131.45 | 0.6467 | -339.0 | -319.2 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -21.47 | 143.21 | -31.38 | 130.97 | 0.6440 | -653.0 | -560.4 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -22.12 | 142.97 | -31.62 | 131.58 | 0.6516 | -603.0 | -537.4 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -21.07 | 143.15 | -31.44 | 130.41 | 0.6415 | -592.0 | -488.8 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -21.38 | 142.96 | -31.63 | 130.64 | 0.6458 | -577.0 | -497.5 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -18.89 | 143.45 | -31.14 | 127.82 | 0.6216 | -804.0 | -598.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -23.00 | 142.07 | -32.52 | 131.92 | 0.6672 | -551.0 | -432.3 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -21.02 | 142.51 | -32.08 | 129.82 | 0.6477 | -658.0 | -582.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
