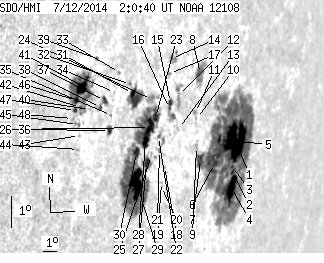

SDO HMI 2014-07-12 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 167.07 | 852.01 | 213.78 | 1113.68 | -7.11 | 240.99 | 66.95 | 260.62 | 0.9248 | 49.0 | 90.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.49 | 449.93 | 72.09 | 671.88 | -7.21 | 244.22 | 70.18 | 260.95 | 0.9465 | 512.6 | 250.0 | |
| 1.54 | -1.00 | 2.37 | -1.00 | -8.20 | 244.32 | 70.28 | 259.91 | 0.9478 | 493.1 | 999999 | |
| 1.09 | -1.00 | 1.66 | -1.00 | -8.01 | 244.25 | 70.21 | 260.10 | 0.9472 | 587.3 | 999999 | |
| 16.07 | -1.00 | 24.86 | -1.00 | -8.68 | 244.43 | 70.39 | 259.43 | 0.9487 | 335.8 | 999999 | |
| 2.09 | -1.00 | 2.95 | -1.00 | -7.08 | 242.76 | 68.72 | 260.90 | 0.9380 | 823.9 | 999999 | |
| 3.54 | -1.00 | 5.00 | -1.00 | -7.81 | 242.58 | 68.54 | 260.10 | 0.9375 | 885.2 | 999999 | |
| 6.81 | -1.00 | 9.06 | -1.00 | -7.63 | 241.36 | 67.32 | 260.12 | 0.9298 | 368.6 | 999999 | |
| 0.00 | 18.34 | 0.00 | 23.41 | -4.90 | 240.65 | 66.61 | 262.96 | 0.9231 | 468.0 | 351.1 | |
| 0.00 | 2.45 | 0.00 | 3.20 | -7.17 | 240.89 | 66.85 | 260.55 | 0.9265 | 530.0 | 503.7 | |
| 0.00 | 0.73 | 0.00 | 0.93 | -6.29 | 240.65 | 66.61 | 261.46 | 0.9242 | 497.0 | 441.9 | |
| 0.00 | 2.18 | 0.00 | 2.78 | -6.09 | 240.52 | 66.49 | 261.66 | 0.9232 | 537.0 | 466.2 | |
| 0.00 | 9.81 | 0.00 | 11.80 | -5.47 | 239.10 | 65.06 | 262.14 | 0.9129 | 302.0 | 279.6 | |
| 0.00 | 1.27 | 0.00 | 1.55 | -6.51 | 239.34 | 65.30 | 261.04 | 0.9155 | 317.0 | 356.9 | |
| 0.64 | 6.45 | 0.74 | 7.56 | -4.29 | 238.38 | 64.34 | 263.34 | 0.9067 | -527.3 | -298.5 | |
| 2.09 | 11.17 | 2.46 | 13.23 | -5.66 | 238.56 | 64.52 | 261.87 | 0.9092 | -191.0 | 61.2 | |
| 0.64 | -15.00 | 0.75 | -15.00 | -5.84 | 238.52 | 64.48 | 261.66 | 0.9091 | -307.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.95 | -4.75 | 238.31 | 64.27 | 262.83 | 0.9066 | -382.0 | -236.9 | |
| 0.00 | 0.54 | 0.00 | 0.65 | -7.64 | 238.61 | 64.57 | 259.71 | 0.9115 | -125.0 | -89.7 | |
| 0.00 | 0.91 | 0.00 | 1.08 | -8.13 | 238.54 | 64.50 | 259.17 | 0.9114 | 296.0 | 148.5 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -8.26 | 238.57 | 64.54 | 259.03 | 0.9118 | 206.0 | 228.0 | |
| 0.00 | 1.36 | 0.00 | 1.59 | -7.11 | 238.11 | 64.07 | 260.21 | 0.9073 | -24.0 | 26.7 | |
| 0.54 | 6.63 | 0.63 | 7.74 | -6.67 | 237.93 | 63.89 | 260.67 | 0.9056 | -208.0 | 10.3 | |
| 3.90 | 202.22 | 4.46 | 225.44 | -6.06 | 237.58 | 63.54 | 261.29 | 0.9024 | -369.3 | -380.4 | |
| 0.00 | 7.90 | 0.00 | 8.87 | -5.47 | 237.19 | 63.15 | 261.88 | 0.8989 | -245.0 | -281.2 | |
| 0.00 | 2.09 | 0.00 | 2.40 | -7.23 | 237.58 | 63.54 | 260.00 | 0.9036 | -200.0 | -147.7 | |
| 10.99 | -23.00 | 12.39 | -23.00 | -6.34 | 237.23 | 63.19 | 260.93 | 0.9001 | -663.2 | 999999 | |
| 4.63 | 9.90 | 5.27 | 11.25 | -7.46 | 237.29 | 63.25 | 259.70 | 0.9017 | -365.9 | -300.3 | |
| 7.72 | -23.00 | 8.67 | -23.00 | -6.73 | 237.04 | 63.00 | 260.47 | 0.8991 | -671.7 | 999999 | |
| 23.79 | -23.00 | 26.62 | -23.00 | -8.02 | 236.75 | 62.72 | 259.01 | 0.8983 | -671.2 | 999999 | |
| 5.18 | -23.00 | 5.71 | -23.00 | -7.07 | 236.51 | 62.47 | 260.01 | 0.8954 | -788.7 | 999999 | |
| 3.36 | 24.15 | 3.60 | 26.06 | -5.21 | 235.87 | 61.83 | 261.99 | 0.8884 | 578.5 | 369.9 | |
| 0.00 | 1.73 | 0.00 | 1.84 | -4.92 | 235.69 | 61.65 | 262.29 | 0.8867 | 461.0 | 376.5 | |
| 0.00 | 1.27 | 0.00 | 1.32 | -4.50 | 234.92 | 60.88 | 262.65 | 0.8801 | 484.0 | 435.7 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -5.10 | 234.69 | 60.66 | 261.94 | 0.8788 | 494.0 | 461.7 | |
| 0.00 | 1.00 | 0.00 | 1.03 | -5.81 | 234.62 | 60.59 | 261.13 | 0.8790 | 445.0 | 430.9 | |
| 2.72 | 4.72 | 2.81 | 4.88 | -6.27 | 234.58 | 60.55 | 260.61 | 0.8792 | 573.3 | 415.8 | |
| 2.27 | 6.81 | 2.30 | 6.89 | -5.31 | 234.10 | 60.06 | 261.61 | 0.8741 | 484.6 | 390.8 | |
| 1.00 | -37.00 | 1.01 | -37.00 | -5.51 | 233.89 | 59.85 | 261.35 | 0.8726 | 392.6 | 999999 | |
| 0.45 | 1.27 | 0.45 | 1.26 | -3.98 | 233.43 | 59.39 | 263.04 | 0.8669 | -361.6 | -310.3 | |
| 0.00 | 1.27 | 0.00 | 1.25 | -5.53 | 233.22 | 59.18 | 261.22 | 0.8669 | 487.0 | 365.3 | |
| 13.98 | 66.65 | 13.55 | 64.56 | -4.79 | 232.69 | 58.66 | 261.99 | 0.8615 | -690.0 | -257.7 | |
| 0.64 | -41.00 | 0.62 | -41.00 | -5.44 | 232.67 | 58.63 | 261.24 | 0.8620 | -343.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.98 | -6.31 | 232.76 | 58.72 | 260.26 | 0.8639 | -373.0 | -386.0 | |
| 0.00 | 1.18 | 0.00 | 1.16 | -6.74 | 232.78 | 58.74 | 259.76 | 0.8646 | -484.0 | -340.8 | |
| 0.00 | 2.45 | 0.00 | 2.38 | -5.96 | 232.58 | 58.54 | 260.63 | 0.8619 | -590.0 | -436.8 | |
| 2.63 | -41.00 | 2.53 | -41.00 | -5.21 | 232.40 | 58.36 | 261.47 | 0.8594 | -739.6 | 999999 | |
| 1.27 | 2.18 | 1.22 | 2.10 | -5.51 | 232.39 | 58.35 | 261.11 | 0.8596 | -657.5 | -596.9 | |
| 0.00 | 1.09 | 0.00 | 1.05 | -5.75 | 232.25 | 58.21 | 260.81 | 0.8587 | -371.0 | -479.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
