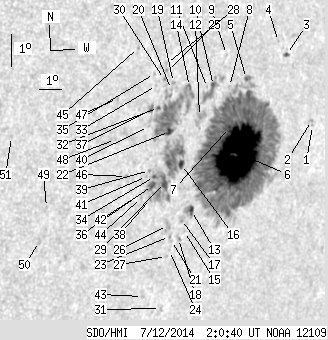

SDO HMI 2014-07-12 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.25 | 1050.50 | 139.81 | 785.46 | -7.91 | 221.21 | 47.17 | 255.73 | 0.7515 | 694.6 | 294.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.81 | -7.33 | 225.42 | 51.39 | 257.58 | 0.7958 | 536.0 | 443.5 | |
| 0.00 | 1.63 | 0.00 | 1.33 | -7.17 | 225.35 | 51.31 | 257.76 | 0.7947 | 538.0 | 486.4 | |
| 1.36 | 2.45 | 1.06 | 1.91 | -5.05 | 223.86 | 49.82 | 260.10 | 0.7749 | 546.9 | 432.6 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -4.62 | 223.44 | 49.40 | 260.55 | 0.7695 | 545.0 | 546.7 | |
| 1.00 | 745.59 | 0.75 | 566.29 | -5.69 | 222.06 | 48.02 | 258.86 | 0.7562 | -554.5 | 338.2 | |
| 158.09 | -5.00 | 120.15 | -5.00 | -8.01 | 222.00 | 47.96 | 255.84 | 0.7607 | 1089.6 | 999999 | |
| 0.27 | -5.00 | 0.20 | -5.00 | -7.17 | 221.46 | 47.42 | 256.78 | 0.7528 | 1200.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -5.89 | 221.30 | 47.27 | 258.41 | 0.7481 | 197.0 | 128.8 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -4.89 | 221.07 | 47.03 | 259.68 | 0.7433 | -349.0 | -354.7 | |
| 1.73 | 16.62 | 1.26 | 12.17 | -5.83 | 220.57 | 46.54 | 258.32 | 0.7396 | -229.2 | -115.7 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -5.87 | 220.31 | 46.27 | 258.19 | 0.7367 | -494.0 | -449.0 | |
| 0.00 | 13.35 | 0.00 | 9.73 | -6.76 | 220.06 | 46.02 | 256.94 | 0.7358 | 200.0 | 179.8 | |
| 3.36 | 9.53 | 2.48 | 7.04 | -9.69 | 220.14 | 46.10 | 253.10 | 0.7446 | 721.0 | 565.1 | |
| 1.00 | 160.54 | 0.72 | 114.89 | -5.80 | 219.51 | 45.47 | 258.07 | 0.7272 | -330.6 | 436.8 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -10.33 | 219.94 | 45.91 | 252.19 | 0.7444 | 194.0 | 202.5 | |
| 3.27 | -14.00 | 2.37 | -14.00 | -8.22 | 219.46 | 45.42 | 254.81 | 0.7327 | 775.3 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.60 | -9.95 | 219.74 | 45.70 | 252.62 | 0.7409 | 408.0 | 314.4 | |
| 0.00 | 2.36 | 0.00 | 1.74 | -10.54 | 219.72 | 45.68 | 251.84 | 0.7425 | -309.0 | -213.3 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -5.64 | 218.80 | 44.76 | 258.10 | 0.7184 | -462.0 | -327.6 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -5.85 | 218.73 | 44.69 | 257.79 | 0.7181 | -487.0 | -445.8 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -10.59 | 219.41 | 45.38 | 251.67 | 0.7393 | -244.0 | -285.5 | |
| 3.63 | -14.00 | 2.59 | -14.00 | -7.16 | 218.79 | 44.75 | 256.03 | 0.7221 | 958.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -10.46 | 219.30 | 45.26 | 251.80 | 0.7376 | 30.0 | -79.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -10.90 | 219.38 | 45.35 | 251.25 | 0.7400 | -525.0 | -442.7 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -5.25 | 218.50 | 44.46 | 258.55 | 0.7139 | -553.0 | -492.5 | |
| 0.00 | 6.72 | 0.00 | 4.89 | -10.10 | 219.15 | 45.11 | 252.21 | 0.7348 | -143.0 | -79.9 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -11.09 | 219.29 | 45.25 | 250.97 | 0.7395 | -254.0 | -313.1 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -5.04 | 218.44 | 44.40 | 258.84 | 0.7127 | -486.0 | -375.7 | |
| 5.36 | 47.31 | 3.85 | 33.90 | -8.74 | 218.79 | 44.75 | 253.90 | 0.7266 | 66.7 | -70.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -5.53 | 218.40 | 44.36 | 258.15 | 0.7133 | -598.0 | -554.3 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -12.73 | 219.37 | 45.33 | 248.88 | 0.7460 | -431.0 | -422.8 | |
| 0.64 | 2.45 | 0.45 | 1.73 | -6.38 | 218.22 | 44.19 | 256.92 | 0.7134 | -541.6 | -510.5 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -5.70 | 218.07 | 44.03 | 257.82 | 0.7098 | -605.0 | -471.1 | |
| 1.18 | -29.00 | 0.84 | -29.00 | -8.53 | 218.33 | 44.29 | 254.02 | 0.7206 | -563.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -5.32 | 217.95 | 43.91 | 258.31 | 0.7075 | -595.0 | -532.0 | |
| 3.18 | -29.00 | 2.26 | -29.00 | -8.81 | 218.28 | 44.24 | 253.63 | 0.7209 | -662.2 | 999999 | |
| 1.18 | 4.36 | 0.83 | 3.05 | -6.43 | 217.93 | 43.89 | 256.77 | 0.7100 | -640.5 | -610.6 | |
| 0.00 | 1.73 | 0.00 | 1.23 | -9.21 | 218.26 | 44.22 | 253.08 | 0.7218 | -479.0 | -442.7 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -8.33 | 218.08 | 44.04 | 254.21 | 0.7171 | -651.0 | -561.4 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -6.95 | 217.86 | 43.82 | 256.02 | 0.7106 | -207.0 | -191.6 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -8.51 | 217.98 | 43.94 | 253.93 | 0.7165 | -593.0 | -537.6 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -8.98 | 217.96 | 43.92 | 253.29 | 0.7177 | -560.0 | -468.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -12.31 | 218.48 | 44.44 | 249.07 | 0.7347 | -640.0 | -457.1 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -9.16 | 217.86 | 43.82 | 253.01 | 0.7171 | -586.0 | -543.7 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -4.48 | 217.20 | 43.17 | 259.29 | 0.6964 | -613.0 | -555.7 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -8.47 | 217.12 | 43.08 | 253.69 | 0.7062 | -684.0 | -581.0 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -6.02 | 216.45 | 42.42 | 256.90 | 0.6910 | -468.0 | -411.6 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -7.29 | 216.51 | 42.47 | 255.12 | 0.6952 | -428.0 | -359.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -9.28 | 213.92 | 39.89 | 251.31 | 0.6704 | -448.0 | -534.8 | |
| 0.00 | 2.81 | 0.00 | 1.88 | -10.34 | 213.79 | 39.76 | 249.74 | 0.6729 | -389.0 | -333.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -7.00 | 212.27 | 38.23 | 253.99 | 0.6413 | -226.0 | -298.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
