SDO HMI 2014-07-12 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.49 | 143.03 | 21.17 | 82.51 | 6.26 | 204.71 | 30.68 | 275.56 | 0.5114 | -254.9 | -183.0 | |
|
previous
or next observation for the same group /

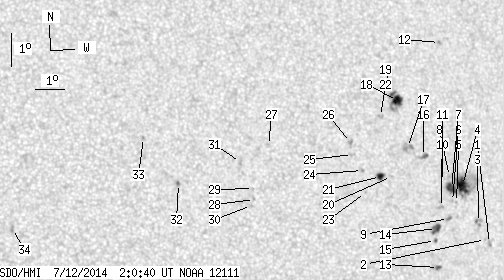

back to the solar disc SDO HMI 2014-07-12 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.61 | 4.10 | 207.27 | 33.24 | 271.34 | 0.5489 | -755.0 | -615.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 4.23 | 207.13 | 33.10 | 271.57 | 0.5469 | -758.0 | -558.8 | |
| 0.00 | 5.27 | 0.00 | 3.10 | 4.76 | 206.91 | 32.87 | 272.54 | 0.5435 | -765.0 | -648.0 | |
| 10.99 | 52.58 | 6.44 | 30.82 | 5.91 | 206.39 | 32.36 | 274.69 | 0.5362 | -915.8 | -405.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 5.40 | 206.14 | 32.11 | 273.74 | 0.5323 | -730.0 | -610.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 5.43 | 206.00 | 31.96 | 273.82 | 0.5302 | -659.0 | -521.5 | |
| 6.72 | -4.00 | 3.92 | -4.00 | 5.83 | 205.99 | 31.95 | 274.57 | 0.5302 | -1029.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 6.20 | 205.94 | 31.90 | 275.27 | 0.5297 | -311.0 | -270.2 | |
| 0.00 | 2.18 | 0.00 | 1.27 | 4.92 | 205.83 | 31.79 | 272.85 | 0.5275 | -838.0 | -779.9 | |
| 0.00 | 2.45 | 0.00 | 1.42 | 5.27 | 205.59 | 31.56 | 273.51 | 0.5241 | -782.0 | -640.1 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 5.42 | 205.60 | 31.57 | 273.80 | 0.5243 | -742.0 | -641.4 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 10.30 | 205.96 | 31.92 | 282.96 | 0.5359 | -827.0 | -688.4 | |
| 1.36 | 3.72 | 0.79 | 2.16 | 3.44 | 205.40 | 31.36 | 270.00 | 0.5215 | 748.3 | 636.3 | |
| 4.81 | 7.08 | 2.79 | 4.10 | 4.63 | 205.38 | 31.34 | 272.30 | 0.5209 | -902.3 | -678.7 | |
| 0.54 | 1.73 | 0.32 | 1.00 | 4.27 | 205.33 | 31.29 | 271.59 | 0.5201 | 223.3 | 151.8 | |
| 0.00 | 4.18 | 0.00 | 2.41 | 6.84 | 205.05 | 31.01 | 276.59 | 0.5170 | -819.0 | -766.7 | |
| 0.00 | 7.17 | 0.00 | 4.12 | 7.14 | 204.50 | 30.46 | 277.24 | 0.5091 | -842.0 | -698.9 | |
| 6.99 | 19.16 | 4.01 | 10.99 | 8.58 | 204.26 | 30.23 | 280.13 | 0.5076 | 821.4 | 635.1 | |
| 1.54 | -18.00 | 0.89 | -18.00 | 8.77 | 204.10 | 30.06 | 280.54 | 0.5056 | 781.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 6.27 | 203.87 | 29.83 | 275.60 | 0.4989 | -709.0 | -524.1 | |
| 3.54 | 5.27 | 2.01 | 3.00 | 6.29 | 203.48 | 29.45 | 275.67 | 0.4930 | -842.5 | -605.3 | |
| 0.00 | 2.72 | 0.00 | 1.55 | 8.12 | 203.62 | 29.58 | 279.34 | 0.4972 | 885.0 | 665.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 5.82 | 202.93 | 28.89 | 274.76 | 0.4843 | -709.0 | -553.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 6.49 | 202.86 | 28.83 | 276.16 | 0.4838 | -809.0 | -681.3 | |
| 0.00 | 2.00 | 0.00 | 1.13 | 6.99 | 202.55 | 28.51 | 277.24 | 0.4795 | 394.0 | 456.1 | |
| 0.00 | 2.18 | 0.00 | 1.23 | 7.36 | 202.50 | 28.47 | 278.02 | 0.4793 | 882.0 | 710.0 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 7.36 | 199.67 | 25.63 | 278.62 | 0.4357 | 520.0 | 462.1 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 5.73 | 199.10 | 25.07 | 274.93 | 0.4249 | 660.0 | 561.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 6.07 | 199.09 | 25.05 | 275.72 | 0.4249 | 633.0 | 489.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 5.55 | 198.99 | 24.96 | 274.51 | 0.4230 | 611.0 | 532.8 | |
| 0.00 | 3.00 | 0.00 | 1.63 | 6.87 | 198.69 | 24.65 | 277.70 | 0.4196 | 893.0 | 751.3 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 6.29 | 196.58 | 22.54 | 276.72 | 0.3854 | 973.0 | 803.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 7.73 | 195.50 | 21.46 | 280.83 | 0.3707 | 777.0 | 651.8 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 5.06 | 191.13 | 17.09 | 274.11 | 0.2948 | 814.0 | 627.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
