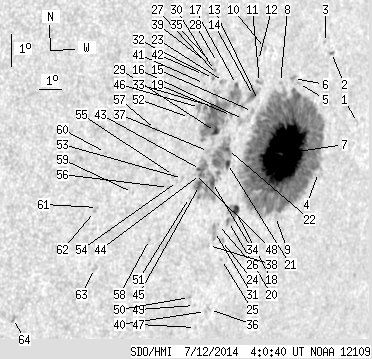

SDO HMI 2014-07-12 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.10 | 1038.93 | 141.96 | 792.48 | -7.93 | 221.08 | 48.14 | 255.97 | 0.7625 | 637.6 | 278.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.14 | -7.26 | 225.48 | 52.54 | 257.91 | 0.8074 | 436.0 | 439.9 | |
| 0.54 | 2.00 | 0.44 | 1.60 | -5.01 | 223.88 | 50.94 | 260.37 | 0.7868 | 578.3 | 480.6 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -4.68 | 223.55 | 50.61 | 260.71 | 0.7828 | 623.0 | 470.4 | |
| 0.00 | 1.73 | 0.00 | 1.40 | -8.72 | 223.79 | 50.85 | 255.71 | 0.7932 | -50.0 | -60.7 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -5.88 | 222.39 | 49.45 | 258.94 | 0.7724 | 289.0 | 211.7 | |
| 0.00 | 2.54 | 0.00 | 1.96 | -5.71 | 222.13 | 49.19 | 259.10 | 0.7693 | -531.0 | -455.9 | |
| 156.58 | 712.41 | 121.70 | 553.17 | -8.03 | 221.98 | 49.04 | 256.10 | 0.7726 | 1093.3 | 345.3 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -5.80 | 221.54 | 48.60 | 258.84 | 0.7629 | -194.0 | -151.3 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -9.99 | 221.96 | 49.02 | 253.62 | 0.7772 | 144.0 | 81.4 | |
| 0.00 | 1.91 | 0.00 | 1.43 | -4.71 | 220.73 | 47.79 | 260.08 | 0.7517 | -488.0 | -350.7 | |
| 0.00 | 3.18 | 0.00 | 2.38 | -5.75 | 220.56 | 47.62 | 258.68 | 0.7519 | -128.0 | 6.2 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -5.07 | 220.45 | 47.51 | 259.55 | 0.7491 | -495.0 | -354.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -6.31 | 220.58 | 47.64 | 257.95 | 0.7533 | 393.0 | 441.3 | |
| 1.73 | 16.35 | 1.29 | 12.17 | -6.14 | 220.33 | 47.39 | 258.11 | 0.7501 | -233.3 | -233.1 | |
| 0.00 | 2.45 | 0.00 | 1.83 | -6.64 | 220.35 | 47.41 | 257.46 | 0.7514 | 179.0 | 154.0 | |
| 0.00 | 10.08 | 0.00 | 7.49 | -6.86 | 219.97 | 47.03 | 257.06 | 0.7476 | 260.0 | 242.5 | |
| 1.09 | 102.54 | 0.80 | 74.52 | -5.76 | 219.52 | 46.58 | 258.41 | 0.7400 | -334.9 | 331.5 | |
| 4.09 | 12.17 | 3.08 | 9.16 | -9.70 | 220.05 | 47.11 | 253.40 | 0.7558 | 747.9 | 446.1 | |
| 0.00 | 2.09 | 0.00 | 1.53 | -6.71 | 219.41 | 46.47 | 257.11 | 0.7409 | 458.0 | 441.7 | |
| 0.00 | 3.09 | 0.00 | 2.32 | -10.03 | 219.79 | 46.85 | 252.89 | 0.7539 | 577.0 | 418.9 | |
| 2.82 | 103.26 | 2.08 | 75.63 | -8.20 | 219.43 | 46.49 | 255.15 | 0.7449 | 875.8 | 279.4 | |
| 1.45 | -21.00 | 1.07 | -21.00 | -7.76 | 219.37 | 46.43 | 255.71 | 0.7431 | 898.7 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.50 | -5.63 | 218.93 | 45.99 | 258.42 | 0.7329 | 175.0 | 42.8 | |
| 0.00 | 2.91 | 0.00 | 2.18 | -10.62 | 219.58 | 46.64 | 252.07 | 0.7534 | -353.0 | -222.3 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -11.22 | 219.71 | 46.77 | 251.33 | 0.7566 | -523.0 | -421.2 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -10.10 | 219.35 | 46.41 | 252.65 | 0.7493 | 356.0 | 328.4 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -5.40 | 218.64 | 45.70 | 258.66 | 0.7290 | -324.0 | -283.6 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -5.03 | 218.61 | 45.67 | 259.16 | 0.7278 | -337.0 | -266.7 | |
| 3.72 | -17.00 | 2.71 | -17.00 | -7.17 | 218.75 | 45.81 | 256.32 | 0.7345 | 994.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -5.27 | 218.50 | 45.56 | 258.80 | 0.7270 | -514.0 | -428.8 | |
| 0.00 | 6.45 | 0.00 | 4.80 | -10.31 | 219.21 | 46.27 | 252.33 | 0.7484 | -40.0 | -46.0 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -5.52 | 218.48 | 45.54 | 258.46 | 0.7273 | -598.0 | -523.0 | |
| 1.63 | -17.00 | 1.18 | -17.00 | -6.39 | 218.53 | 45.59 | 257.30 | 0.7299 | -79.7 | 999999 | |
| 4.18 | -21.00 | 3.06 | -21.00 | -8.76 | 218.85 | 45.91 | 254.24 | 0.7399 | 45.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.17 | -5.05 | 218.39 | 45.45 | 259.08 | 0.7253 | -479.0 | -418.6 | |
| 0.00 | 1.82 | 0.00 | 1.38 | -12.79 | 219.51 | 46.57 | 249.27 | 0.7595 | -446.0 | -352.1 | |
| 0.00 | 2.45 | 0.00 | 1.78 | -7.78 | 218.53 | 45.59 | 255.44 | 0.7335 | 405.0 | 369.3 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -10.74 | 219.02 | 46.08 | 251.71 | 0.7476 | -506.0 | -421.4 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -4.97 | 218.08 | 45.14 | 259.10 | 0.7214 | -620.0 | -511.6 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -12.85 | 219.34 | 46.40 | 249.14 | 0.7579 | -517.0 | -377.1 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -5.65 | 218.10 | 45.16 | 258.18 | 0.7232 | -591.0 | -475.5 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -5.37 | 218.03 | 45.09 | 258.55 | 0.7217 | -605.0 | -518.9 | |
| 1.82 | -21.00 | 1.32 | -21.00 | -8.33 | 218.25 | 45.31 | 254.62 | 0.7318 | -344.0 | 999999 | |
| 1.00 | -21.00 | 0.72 | -21.00 | -8.48 | 218.27 | 45.33 | 254.42 | 0.7326 | -705.7 | 999999 | |
| 3.45 | -21.00 | 2.51 | -21.00 | -8.83 | 218.28 | 45.34 | 253.97 | 0.7336 | -643.3 | 999999 | |
| 0.00 | 4.72 | 0.00 | 3.38 | -6.39 | 217.96 | 45.02 | 257.14 | 0.7233 | -690.0 | -592.3 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -13.34 | 219.01 | 46.07 | 248.39 | 0.7560 | -406.0 | -351.6 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -8.47 | 218.01 | 45.07 | 254.35 | 0.7295 | -576.0 | -516.6 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -12.63 | 218.79 | 45.85 | 249.21 | 0.7513 | -407.0 | -430.3 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -12.36 | 218.51 | 45.57 | 249.44 | 0.7473 | -622.0 | -527.7 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -9.18 | 217.90 | 44.96 | 253.37 | 0.7303 | -537.0 | -468.2 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -6.68 | 217.55 | 44.61 | 256.63 | 0.7193 | -416.0 | -361.4 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -8.57 | 217.50 | 44.56 | 254.05 | 0.7239 | -476.0 | -410.3 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -8.65 | 217.30 | 44.36 | 253.87 | 0.7217 | -583.0 | -470.7 | |
| 0.00 | 1.73 | 0.00 | 1.23 | -8.45 | 217.09 | 44.15 | 254.07 | 0.7188 | -727.0 | -585.5 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -8.82 | 216.93 | 43.99 | 253.52 | 0.7180 | -718.0 | -613.5 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -6.98 | 216.13 | 43.19 | 255.78 | 0.7032 | -616.0 | -463.8 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -10.42 | 216.37 | 43.43 | 251.16 | 0.7167 | -511.0 | -387.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -8.90 | 215.41 | 42.47 | 252.87 | 0.7004 | -476.0 | -521.0 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -7.59 | 214.12 | 41.18 | 254.23 | 0.6805 | -506.0 | -518.5 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -9.30 | 214.02 | 41.08 | 251.77 | 0.6850 | -663.0 | -562.4 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -9.42 | 213.91 | 40.97 | 251.56 | 0.6841 | -685.0 | -568.4 | |
| 0.00 | 2.82 | 0.00 | 1.93 | -11.22 | 214.20 | 41.26 | 249.17 | 0.6943 | -630.0 | -511.2 | |
| 0.00 | 3.18 | 0.00 | 2.10 | -12.66 | 211.16 | 38.22 | 245.69 | 0.6646 | -607.0 | -496.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
