SDO HMI 2014-07-12 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.03 | 1023.57 | 133.61 | 789.62 | -7.96 | 221.09 | 48.70 | 256.07 | 0.7685 | 685.6 | 285.1 | |
|
previous
or next observation for the same group /

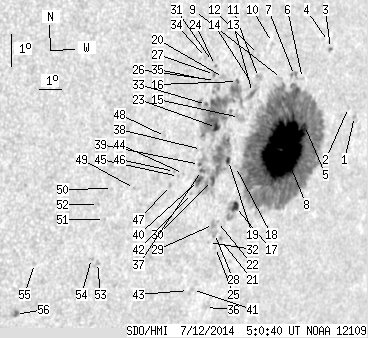

back to the solar disc SDO HMI 2014-07-12 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.38 | -7.20 | 225.38 | 52.99 | 258.09 | 0.8119 | 499.0 | 361.1 | |
| 0.00 | 1.18 | 0.00 | 0.99 | -6.90 | 225.03 | 52.64 | 258.38 | 0.8077 | 88.0 | 144.1 | |
| 0.54 | 1.63 | 0.44 | 1.32 | -5.01 | 223.87 | 51.48 | 260.47 | 0.7925 | 568.7 | 449.6 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -4.79 | 223.75 | 51.36 | 260.73 | 0.7909 | 401.0 | 375.7 | |
| 0.27 | 709.47 | 0.22 | 557.34 | -7.34 | 222.91 | 50.52 | 257.35 | 0.7868 | 308.0 | 341.4 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -5.86 | 222.61 | 50.22 | 259.13 | 0.7806 | 272.0 | 300.1 | |
| 0.00 | 4.27 | 0.00 | 3.34 | -5.75 | 222.21 | 49.82 | 259.19 | 0.7761 | -189.0 | -257.2 | |
| 149.96 | -5.00 | 117.90 | -5.00 | -8.03 | 222.01 | 49.62 | 256.25 | 0.7788 | 1135.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -5.81 | 221.60 | 49.21 | 258.97 | 0.7696 | -393.0 | -206.0 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -4.67 | 221.06 | 48.67 | 260.33 | 0.7615 | -309.0 | -202.1 | |
| 0.00 | 5.18 | 0.00 | 3.91 | -5.72 | 220.52 | 48.13 | 258.84 | 0.7575 | -403.0 | -77.7 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -5.00 | 220.44 | 48.05 | 259.75 | 0.7552 | -423.0 | -323.9 | |
| 0.00 | 9.17 | 0.00 | 6.91 | -6.17 | 220.29 | 47.90 | 258.19 | 0.7559 | -260.0 | -184.3 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -5.86 | 220.21 | 47.82 | 258.58 | 0.7543 | -332.0 | -377.8 | |
| 0.00 | 8.72 | 0.00 | 6.53 | -6.92 | 219.79 | 47.40 | 257.09 | 0.7520 | 186.0 | 171.8 | |
| 0.82 | 118.08 | 0.61 | 86.70 | -5.79 | 219.57 | 47.17 | 258.51 | 0.7469 | -350.3 | 270.3 | |
| 4.90 | 15.35 | 3.74 | 11.67 | -9.70 | 220.05 | 47.66 | 253.57 | 0.7619 | 729.4 | 480.9 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -8.44 | 219.83 | 47.44 | 255.12 | 0.7561 | 278.0 | 288.4 | |
| 2.09 | 85.65 | 1.56 | 63.48 | -8.23 | 219.48 | 47.09 | 255.28 | 0.7517 | 871.9 | 374.2 | |
| 0.00 | 3.36 | 0.00 | 2.46 | -5.63 | 218.92 | 46.53 | 258.56 | 0.7391 | 66.0 | -25.1 | |
| 0.00 | 2.09 | 0.00 | 1.58 | -10.71 | 219.56 | 47.17 | 252.12 | 0.7594 | -388.0 | -276.7 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -10.13 | 219.31 | 46.92 | 252.78 | 0.7550 | 176.0 | 208.4 | |
| 3.81 | -16.00 | 2.80 | -16.00 | -7.17 | 218.79 | 46.39 | 256.48 | 0.7412 | 963.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -5.24 | 218.52 | 46.13 | 258.98 | 0.7337 | -499.0 | -436.6 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -10.95 | 219.38 | 46.99 | 251.75 | 0.7582 | -533.0 | -401.3 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -5.71 | 218.57 | 46.18 | 258.37 | 0.7352 | -466.0 | -427.5 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -5.52 | 218.51 | 46.11 | 258.61 | 0.7341 | -626.0 | -529.8 | |
| 0.00 | 4.00 | 0.00 | 3.01 | -10.50 | 219.24 | 46.85 | 252.28 | 0.7554 | 119.0 | -59.2 | |
| 0.00 | 4.00 | 0.00 | 3.00 | -10.22 | 219.14 | 46.75 | 252.61 | 0.7534 | -130.0 | -87.5 | |
| 2.82 | -19.00 | 2.09 | -19.00 | -8.82 | 218.85 | 46.46 | 254.32 | 0.7462 | 29.9 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -5.11 | 218.38 | 45.99 | 259.12 | 0.7317 | -441.0 | -442.8 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -10.77 | 219.02 | 46.63 | 251.86 | 0.7538 | -543.0 | -416.3 | |
| 0.54 | -16.00 | 0.40 | -16.00 | -6.43 | 218.25 | 45.86 | 257.31 | 0.7332 | -581.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -4.97 | 218.10 | 45.71 | 259.24 | 0.7282 | -603.0 | -426.9 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -5.65 | 218.12 | 45.73 | 258.33 | 0.7299 | -649.0 | -574.5 | |
| 0.00 | 2.09 | 0.00 | 1.60 | -12.84 | 219.35 | 46.96 | 249.34 | 0.7638 | -428.0 | -329.1 | |
| 0.73 | -19.00 | 0.53 | -19.00 | -8.48 | 218.30 | 45.91 | 254.60 | 0.7392 | -627.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -7.82 | 218.21 | 45.82 | 255.44 | 0.7363 | 377.0 | 271.0 | |
| 0.64 | 8.08 | 0.46 | 5.92 | -8.29 | 218.19 | 45.79 | 254.82 | 0.7373 | -351.4 | 159.9 | |
| 3.91 | -19.00 | 2.86 | -19.00 | -8.79 | 218.22 | 45.83 | 254.17 | 0.7390 | -633.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -12.23 | 218.61 | 46.22 | 249.84 | 0.7539 | -432.0 | -319.5 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -9.18 | 217.97 | 45.58 | 253.57 | 0.7374 | -610.0 | -522.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -12.26 | 218.44 | 46.04 | 249.75 | 0.7521 | -120.0 | -180.3 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -8.54 | 217.52 | 45.13 | 254.28 | 0.7303 | -494.0 | -456.0 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -8.62 | 217.31 | 44.92 | 254.10 | 0.7282 | -578.0 | -491.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -8.45 | 217.11 | 44.72 | 254.26 | 0.7254 | -712.0 | -600.4 | |
| 0.00 | 1.73 | 0.00 | 1.24 | -8.88 | 217.00 | 44.61 | 253.64 | 0.7254 | -688.0 | -579.7 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -7.34 | 216.57 | 44.18 | 255.60 | 0.7159 | -478.0 | -427.4 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -8.90 | 215.46 | 43.07 | 253.08 | 0.7074 | -606.0 | -525.4 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -8.85 | 214.53 | 42.13 | 252.80 | 0.6962 | -638.0 | -585.2 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -9.81 | 214.33 | 41.94 | 251.40 | 0.6972 | -440.0 | -409.3 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -9.33 | 214.01 | 41.62 | 251.94 | 0.6916 | -677.0 | -549.9 | |
| 0.00 | 1.91 | 0.00 | 1.32 | -11.16 | 214.26 | 41.87 | 249.52 | 0.7013 | -576.0 | -491.0 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -11.02 | 213.99 | 41.60 | 249.59 | 0.6976 | -575.0 | -484.7 | |
| 0.00 | 1.82 | 0.00 | 1.21 | -11.07 | 211.66 | 39.27 | 248.48 | 0.6701 | -38.0 | -117.8 | |
| 0.00 | 4.72 | 0.00 | 3.15 | -12.65 | 211.17 | 38.78 | 245.99 | 0.6712 | -837.0 | -529.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
