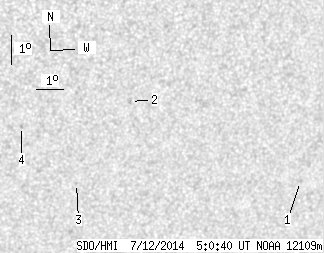

SDO HMI 2014-07-12 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.27 | 0.00 | 3.21 | -20.86 | 198.15 | 25.75 | 224.10 | 0.5822 | -256.2 | -141.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.95 | -22.32 | 203.99 | 31.60 | 228.14 | 0.6531 | 514.0 | 437.4 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -19.38 | 197.09 | 24.69 | 225.19 | 0.5576 | -55.0 | -120.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -22.09 | 195.61 | 23.22 | 220.02 | 0.5703 | -649.0 | -521.7 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -20.10 | 193.36 | 20.97 | 219.71 | 0.5281 | -835.0 | -715.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
