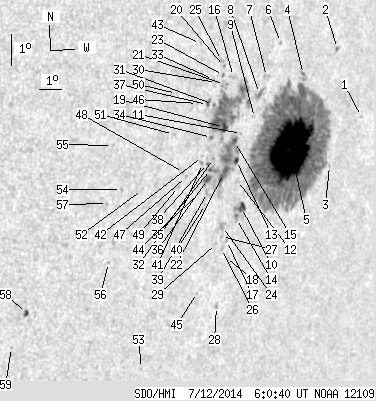

SDO HMI 2014-07-12 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.38 | 986.86 | 145.35 | 770.94 | -7.95 | 221.13 | 49.29 | 256.26 | 0.7748 | 695.4 | 276.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.09 | -7.20 | 225.41 | 53.56 | 258.21 | 0.8175 | 558.0 | 444.3 | |
| 0.45 | 2.00 | 0.37 | 1.64 | -5.01 | 223.88 | 52.03 | 260.58 | 0.7983 | 618.0 | 419.4 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -8.64 | 224.03 | 52.19 | 256.14 | 0.8066 | -359.0 | -287.9 | |
| 0.45 | 4.72 | 0.36 | 3.74 | -5.72 | 222.29 | 50.44 | 259.36 | 0.7828 | -393.6 | -40.2 | |
| 156.05 | 709.60 | 124.15 | 563.98 | -8.00 | 221.99 | 50.14 | 256.43 | 0.7842 | 1154.8 | 325.7 | |
| 0.00 | 1.54 | 0.00 | 1.19 | -4.66 | 221.08 | 49.23 | 260.45 | 0.7677 | -321.0 | -287.4 | |
| 0.00 | 2.82 | 0.00 | 2.15 | -5.68 | 220.52 | 48.68 | 259.01 | 0.7636 | -355.0 | -57.9 | |
| 0.00 | 6.81 | 0.00 | 5.19 | -6.19 | 220.26 | 48.41 | 258.28 | 0.7617 | -359.0 | -242.9 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -6.93 | 220.12 | 48.28 | 257.30 | 0.7618 | 371.0 | 335.7 | |
| 4.63 | 9.36 | 3.56 | 7.19 | -9.72 | 219.97 | 48.13 | 253.68 | 0.7670 | 720.0 | 482.6 | |
| 0.00 | 0.55 | 0.00 | 0.41 | -7.40 | 219.59 | 47.74 | 256.55 | 0.7569 | 510.0 | 454.3 | |
| 0.00 | 2.91 | 0.00 | 2.21 | -8.86 | 219.63 | 47.79 | 254.68 | 0.7611 | 240.0 | 218.4 | |
| 2.36 | 80.21 | 1.79 | 60.04 | -8.23 | 219.48 | 47.64 | 255.45 | 0.7578 | 882.4 | 344.2 | |
| 0.00 | 3.27 | 0.00 | 2.51 | -10.06 | 219.81 | 47.96 | 253.20 | 0.7661 | 623.0 | 546.5 | |
| 2.27 | -13.00 | 1.71 | -13.00 | -7.63 | 219.30 | 47.46 | 256.17 | 0.7543 | 847.2 | 999999 | |
| 0.00 | 4.18 | 0.00 | 3.10 | -5.60 | 219.00 | 47.16 | 258.75 | 0.7463 | 311.0 | 85.5 | |
| 0.00 | 1.91 | 0.00 | 1.46 | -10.73 | 219.48 | 47.63 | 252.24 | 0.7645 | -374.0 | -295.0 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -11.27 | 219.55 | 47.70 | 251.58 | 0.7668 | -87.0 | -167.6 | |
| 4.00 | 95.74 | 2.97 | 71.12 | -7.17 | 218.78 | 46.94 | 256.63 | 0.7473 | 987.7 | 363.1 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -5.27 | 218.56 | 46.72 | 259.09 | 0.7405 | -455.0 | -392.4 | |
| 0.00 | 5.63 | 0.00 | 4.15 | -5.83 | 218.62 | 46.77 | 258.36 | 0.7424 | -615.0 | -452.6 | |
| 6.72 | -13.00 | 5.04 | -13.00 | -8.61 | 218.95 | 47.10 | 254.80 | 0.7529 | 328.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.20 | -5.55 | 218.54 | 46.70 | 258.71 | 0.7409 | -584.0 | -504.4 | |
| 0.00 | 5.90 | 0.00 | 4.48 | -10.28 | 219.20 | 47.36 | 252.73 | 0.7602 | -97.0 | -46.9 | |
| 0.00 | 2.09 | 0.00 | 1.53 | -5.08 | 218.41 | 46.56 | 259.31 | 0.7384 | -407.0 | -397.5 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -10.97 | 219.30 | 47.45 | 251.88 | 0.7633 | -327.0 | -428.2 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -10.59 | 219.22 | 47.38 | 252.34 | 0.7613 | -260.0 | -239.1 | |
| 0.00 | 1.82 | 0.00 | 1.41 | -12.82 | 219.49 | 47.65 | 249.63 | 0.7709 | -482.0 | -417.8 | |
| 0.00 | 0.55 | 0.00 | 0.41 | -10.80 | 219.03 | 47.19 | 252.01 | 0.7599 | -516.0 | -439.7 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -5.75 | 218.25 | 46.41 | 258.37 | 0.7380 | -589.0 | -540.1 | |
| 0.36 | -19.00 | 0.27 | -19.00 | -6.42 | 218.19 | 46.35 | 257.45 | 0.7389 | -547.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -8.11 | 218.42 | 46.57 | 255.29 | 0.7456 | 364.0 | 336.9 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -5.65 | 218.11 | 46.26 | 258.47 | 0.7361 | -429.0 | -407.1 | |
| 0.55 | 2.09 | 0.40 | 1.54 | -7.45 | 218.23 | 46.39 | 256.11 | 0.7418 | -168.2 | -63.6 | |
| 0.73 | -13.00 | 0.54 | -13.00 | -8.45 | 218.33 | 46.49 | 254.82 | 0.7456 | -587.6 | 999999 | |
| 3.27 | -13.00 | 2.42 | -13.00 | -8.76 | 218.25 | 46.40 | 254.39 | 0.7455 | -648.8 | 999999 | |
| 0.64 | 3.54 | 0.46 | 2.58 | -6.41 | 217.92 | 46.08 | 257.40 | 0.7357 | -624.9 | -616.9 | |
| 0.36 | 1.36 | 0.27 | 1.01 | -8.25 | 218.17 | 46.33 | 255.03 | 0.7432 | -423.0 | -278.2 | |
| 0.00 | 3.00 | 0.00 | 2.23 | -9.17 | 218.32 | 46.47 | 253.88 | 0.7474 | -396.0 | -296.9 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -9.54 | 218.29 | 46.45 | 253.39 | 0.7481 | -492.0 | -414.9 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -8.24 | 217.94 | 46.10 | 254.97 | 0.7406 | -520.0 | -418.0 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -8.02 | 217.91 | 46.07 | 255.25 | 0.7397 | -275.0 | -216.2 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -4.50 | 217.43 | 45.58 | 259.85 | 0.7257 | -412.0 | -421.1 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -9.18 | 217.91 | 46.07 | 253.74 | 0.7429 | -511.0 | -531.8 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -12.32 | 218.49 | 46.65 | 249.89 | 0.7588 | -654.0 | -470.7 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -6.35 | 217.48 | 45.63 | 257.35 | 0.7304 | -586.0 | -465.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -8.61 | 217.29 | 45.45 | 254.28 | 0.7342 | -473.0 | -457.2 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -8.48 | 217.14 | 45.29 | 254.41 | 0.7321 | -817.0 | -682.1 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -8.91 | 216.98 | 45.14 | 253.79 | 0.7316 | -612.0 | -564.1 | |
| 0.00 | 1.64 | 0.00 | 1.16 | -6.00 | 216.52 | 44.68 | 257.57 | 0.7183 | -129.0 | -231.8 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -7.27 | 216.53 | 44.69 | 255.85 | 0.7218 | -517.0 | -411.3 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -8.92 | 215.43 | 43.58 | 253.23 | 0.7136 | -501.0 | -443.0 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -14.63 | 216.54 | 44.70 | 246.17 | 0.7462 | -526.0 | -408.5 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -8.88 | 214.53 | 42.68 | 252.97 | 0.7029 | -564.0 | -507.4 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -7.48 | 213.97 | 42.13 | 254.72 | 0.6917 | -407.0 | -391.9 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -11.16 | 214.35 | 42.51 | 249.79 | 0.7087 | -664.0 | -506.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -9.29 | 214.00 | 42.16 | 252.20 | 0.6979 | -657.0 | -557.6 | |
| 1.54 | 3.27 | 1.04 | 2.20 | -12.62 | 211.22 | 39.38 | 246.35 | 0.6782 | -702.1 | -526.1 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -13.68 | 210.82 | 38.97 | 244.67 | 0.6784 | 335.0 | 352.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
