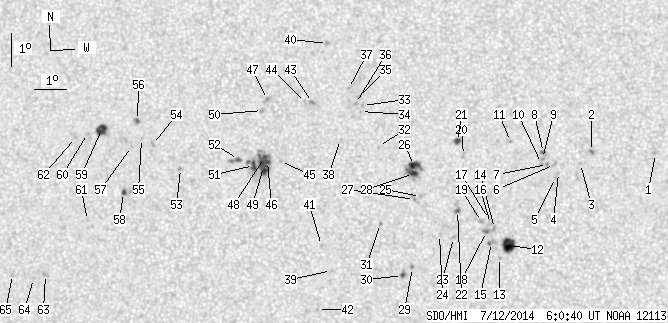

SDO HMI 2014-07-12 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.50 | 198.22 | 28.51 | 99.99 | 7.93 | 162.88 | -8.96 | 92.43 | 0.1730 | -341.0 | -292.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.69 | 172.61 | 0.76 | 350.79 | 0.0824 | -706.0 | -602.6 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 8.75 | 170.63 | -1.21 | 14.30 | 0.0850 | -1073.0 | -928.4 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.38 | 170.29 | -1.55 | 19.48 | 0.0806 | -849.0 | -639.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 8.11 | 169.62 | -2.23 | 28.49 | 0.0810 | -717.0 | -520.3 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.96 | 169.53 | -2.32 | 30.42 | 0.0795 | -1111.0 | -900.6 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 8.35 | 169.49 | -2.35 | 28.38 | 0.0858 | -922.0 | -700.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.35 | 169.28 | -2.57 | 30.53 | 0.0876 | -1130.0 | -894.8 | |
| 0.00 | 2.73 | 0.00 | 1.36 | 8.72 | 169.15 | -2.69 | 29.66 | 0.0942 | -1007.0 | -831.2 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 8.54 | 169.12 | -2.72 | 30.94 | 0.0918 | -1098.0 | -900.5 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.38 | 169.09 | -2.75 | 32.12 | 0.0898 | -1121.0 | -766.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 9.05 | 168.13 | -3.71 | 36.20 | 0.1088 | -995.0 | -795.6 | |
| 12.26 | 14.90 | 6.09 | 7.40 | 5.88 | 168.09 | -3.75 | 63.76 | 0.0729 | -1183.1 | -692.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.51 | 167.82 | -4.03 | 69.80 | 0.0748 | -842.0 | -716.8 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 6.39 | 167.66 | -4.19 | 60.44 | 0.0838 | -891.0 | -770.0 | |
| 0.00 | 3.72 | 0.00 | 1.85 | 5.97 | 167.57 | -4.28 | 65.56 | 0.0818 | -1089.0 | -848.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.55 | 167.53 | -4.31 | 59.60 | 0.0870 | -865.0 | -751.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 6.67 | 167.50 | -4.34 | 58.58 | 0.0885 | -880.0 | -857.3 | |
| 0.55 | 3.45 | 0.27 | 1.72 | 6.30 | 167.41 | -4.43 | 62.75 | 0.0868 | -1104.2 | -884.6 | |
| 0.00 | 3.18 | 0.00 | 1.58 | 6.61 | 167.26 | -4.59 | 60.54 | 0.0917 | -973.0 | -719.5 | |
| 0.00 | 3.00 | 0.00 | 1.50 | 8.62 | 166.68 | -5.16 | 48.05 | 0.1202 | -244.0 | -246.0 | |
| 2.36 | 3.63 | 1.18 | 1.81 | 9.05 | 166.49 | -5.35 | 46.51 | 0.1276 | 1104.9 | 857.1 | |
| 0.73 | 4.63 | 0.36 | 2.31 | 6.94 | 166.51 | -5.33 | 61.18 | 0.1057 | -1214.5 | -864.3 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 6.11 | 166.40 | -5.44 | 68.91 | 0.1016 | -1036.0 | -784.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 6.20 | 165.97 | -5.88 | 69.53 | 0.1091 | -730.0 | -656.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 7.36 | 165.37 | -6.48 | 62.51 | 0.1267 | -971.0 | -769.7 | |
| 5.63 | 22.07 | 2.82 | 11.04 | 8.30 | 165.17 | -6.68 | 57.00 | 0.1378 | -1123.7 | -800.7 | |
| 0.00 | 4.00 | 0.00 | 2.00 | 7.27 | 165.18 | -6.66 | 63.80 | 0.1288 | -999.0 | -686.9 | |
| 3.91 | -26.00 | 1.95 | -26.00 | 8.06 | 165.14 | -6.70 | 58.64 | 0.1360 | -1204.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.19 | 165.15 | -6.70 | 80.01 | 0.1185 | 933.0 | 815.6 | |
| 1.18 | 3.82 | 0.59 | 1.90 | 4.95 | 164.84 | -7.00 | 82.40 | 0.1231 | 1134.7 | 832.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.53 | 164.14 | -7.70 | 71.76 | 0.1408 | 989.0 | 801.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 8.88 | 164.04 | -7.80 | 57.70 | 0.1595 | -438.0 | -395.9 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.13 | 163.51 | -8.33 | 53.22 | 0.1789 | 1052.0 | 735.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 9.94 | 163.45 | -8.39 | 54.25 | 0.1779 | 941.0 | 700.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 10.37 | 163.38 | -8.46 | 52.55 | 0.1832 | 840.0 | 710.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.19 | 163.29 | -8.55 | 53.65 | 0.1826 | 1004.0 | 787.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.64 | 163.06 | -8.78 | 52.37 | 0.1904 | 846.0 | 619.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 9.08 | 162.85 | -8.99 | 60.15 | 0.1788 | -818.0 | -584.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 5.08 | 162.64 | -9.20 | 83.23 | 0.1611 | -980.0 | -707.4 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 12.02 | 162.36 | -9.49 | 49.11 | 0.2143 | 1050.0 | 812.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.84 | 162.32 | -9.52 | 78.92 | 0.1684 | -924.0 | -736.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 3.89 | 162.22 | -9.62 | 90.62 | 0.1675 | -802.0 | -471.9 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 10.20 | 161.94 | -9.90 | 57.39 | 0.2018 | 1063.0 | 919.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 10.20 | 161.72 | -10.12 | 57.95 | 0.2050 | 709.0 | 664.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 8.39 | 160.99 | -10.85 | 67.57 | 0.2025 | -921.0 | -717.8 | |
| 2.18 | 42.60 | 1.10 | 21.59 | 8.38 | 160.58 | -11.26 | 68.29 | 0.2089 | -1254.3 | -689.2 | |
| 0.00 | 2.82 | 0.00 | 1.43 | 10.28 | 160.52 | -11.32 | 60.36 | 0.2232 | -1081.0 | -868.1 | |
| 3.00 | -46.00 | 1.52 | -46.00 | 8.50 | 160.48 | -11.36 | 67.91 | 0.2112 | -1030.8 | 999999 | |
| 10.26 | -46.00 | 5.20 | -46.00 | 8.23 | 160.46 | -11.38 | 69.18 | 0.2099 | -1219.2 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 9.94 | 160.38 | -11.47 | 62.02 | 0.2228 | -985.0 | -775.2 | |
| 3.45 | -46.00 | 1.75 | -46.00 | 8.25 | 160.15 | -11.70 | 69.55 | 0.2151 | -1052.6 | 999999 | |
| 1.09 | 5.54 | 0.55 | 2.82 | 8.43 | 159.67 | -12.18 | 69.50 | 0.2237 | -909.2 | -677.0 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 8.13 | 157.84 | -14.00 | 72.99 | 0.2516 | 1030.0 | 770.8 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 8.85 | 156.93 | -14.92 | 71.31 | 0.2697 | 945.0 | 822.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.03 | 156.57 | -15.28 | 71.07 | 0.2763 | 947.0 | 663.5 | |
| 0.91 | 2.36 | 0.47 | 1.22 | 9.57 | 156.41 | -15.43 | 69.36 | 0.2816 | 1052.2 | 828.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 8.78 | 156.26 | -15.59 | 72.25 | 0.2801 | 937.0 | 726.2 | |
| 1.45 | 4.91 | 0.75 | 2.53 | 7.37 | 156.06 | -15.79 | 77.36 | 0.2778 | 1041.0 | 741.4 | |
| 7.54 | 10.17 | 3.91 | 5.28 | 9.28 | 155.27 | -16.57 | 71.52 | 0.2981 | 1068.6 | 774.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 9.15 | 154.83 | -17.02 | 72.35 | 0.3046 | 933.0 | 677.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 6.49 | 154.93 | -16.91 | 81.02 | 0.2939 | 838.0 | 605.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 9.02 | 154.44 | -17.40 | 73.08 | 0.3101 | 950.0 | 740.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 4.82 | 153.63 | -18.21 | 86.88 | 0.3132 | 821.0 | 697.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 4.69 | 153.25 | -18.59 | 87.32 | 0.3195 | 906.0 | 631.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 4.79 | 152.57 | -19.28 | 87.04 | 0.3308 | 591.0 | 469.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
