SDO HMI 2014-07-12 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.26 | 234.14 | 17.94 | 139.70 | -20.09 | 147.98 | -23.86 | 136.93 | 0.5567 | 178.0 | 113.8 | |
|
previous
or next observation for the same group /

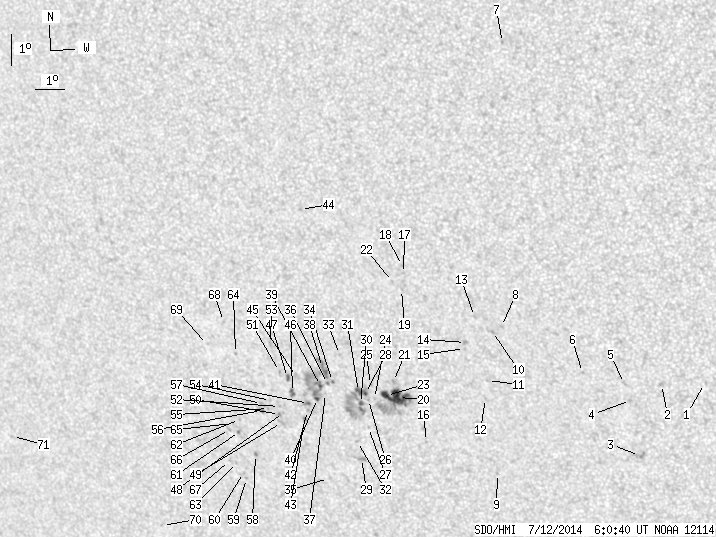

back to the solar disc SDO HMI 2014-07-12 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.55 | 0.00 | 0.30 | -19.47 | 159.81 | -12.03 | 153.70 | 0.4453 | 419.0 | 549.0 | |
| 0.00 | 3.36 | 0.00 | 1.87 | -19.53 | 158.38 | -13.46 | 151.14 | 0.4564 | 804.0 | 542.9 | |
| 0.00 | 5.72 | 0.00 | 3.26 | -21.93 | 157.41 | -14.43 | 152.06 | 0.4954 | 793.0 | 679.3 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -20.08 | 157.30 | -14.55 | 149.88 | 0.4720 | 800.0 | 577.3 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -19.51 | 157.15 | -14.70 | 148.98 | 0.4658 | 746.0 | 660.6 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.17 | 155.77 | -16.07 | 146.28 | 0.4728 | 556.0 | 365.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.63 | 153.95 | -17.89 | 125.42 | 0.3743 | 751.0 | 553.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -17.71 | 153.20 | -18.64 | 140.33 | 0.4789 | 818.0 | 647.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -22.64 | 152.43 | -19.42 | 145.44 | 0.5430 | 574.0 | 539.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -17.88 | 152.88 | -18.97 | 140.09 | 0.4841 | 811.0 | 681.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -19.51 | 152.51 | -19.33 | 141.76 | 0.5061 | 715.0 | 723.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.11 | 152.37 | -19.48 | 142.33 | 0.5143 | 573.0 | 472.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -17.40 | 152.32 | -19.52 | 138.61 | 0.4842 | 649.0 | 596.3 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -18.27 | 151.91 | -19.93 | 139.25 | 0.4979 | 789.0 | 621.3 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -18.47 | 151.86 | -19.99 | 139.44 | 0.5007 | 606.0 | 427.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -21.62 | 150.09 | -21.75 | 141.19 | 0.5519 | 455.0 | 410.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -16.06 | 150.06 | -21.78 | 133.54 | 0.4940 | 861.0 | 715.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -15.80 | 150.06 | -21.79 | 133.14 | 0.4914 | 734.0 | 601.7 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -16.58 | 149.93 | -21.92 | 134.16 | 0.5007 | 583.0 | 507.1 | |
| 14.81 | 53.23 | 8.72 | 31.45 | -20.16 | 149.33 | -22.51 | 138.41 | 0.5435 | 972.9 | 283.8 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -19.63 | 149.24 | -22.61 | 137.59 | 0.5390 | 853.0 | 739.0 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -16.33 | 149.65 | -22.19 | 133.43 | 0.5012 | 651.0 | 490.2 | |
| 5.36 | -20.00 | 3.17 | -20.00 | -20.10 | 148.92 | -22.93 | 137.83 | 0.5470 | 810.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -20.21 | 148.48 | -23.37 | 137.45 | 0.5525 | 533.0 | 445.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -19.75 | 148.41 | -23.44 | 136.76 | 0.5485 | 776.0 | 634.8 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -20.25 | 148.26 | -23.59 | 137.24 | 0.5551 | 531.0 | 457.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -21.20 | 148.10 | -23.75 | 138.27 | 0.5662 | 483.0 | 292.4 | |
| 1.00 | 43.87 | 0.59 | 26.21 | -20.06 | 148.18 | -23.66 | 136.90 | 0.5538 | 965.9 | 144.7 | |
| 0.00 | 3.54 | 0.00 | 2.15 | -22.26 | 147.66 | -24.19 | 139.08 | 0.5811 | 588.0 | 483.1 | |
| 1.09 | -28.00 | 0.65 | -28.00 | -20.40 | 147.95 | -23.90 | 137.07 | 0.5595 | 703.2 | 999999 | |
| 2.36 | -28.00 | 1.40 | -28.00 | -20.00 | 147.94 | -23.90 | 136.54 | 0.5556 | 759.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -21.68 | 147.62 | -24.23 | 138.33 | 0.5757 | 559.0 | 343.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -18.78 | 147.46 | -24.38 | 134.35 | 0.5486 | 652.0 | 554.2 | |
| 0.36 | 1.36 | 0.22 | 0.81 | -19.69 | 147.07 | -24.78 | 135.13 | 0.5614 | 882.8 | 692.6 | |
| 0.00 | 0.55 | 0.00 | 0.34 | -22.98 | 146.31 | -25.53 | 138.47 | 0.6007 | -506.0 | -594.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -19.76 | 146.88 | -24.97 | 135.02 | 0.5641 | 770.0 | 648.8 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -20.10 | 146.75 | -25.10 | 135.32 | 0.5686 | 339.0 | 277.4 | |
| 0.00 | 11.54 | 0.00 | 6.89 | -19.23 | 146.79 | -25.06 | 134.21 | 0.5600 | 710.0 | 550.6 | |
| 1.00 | 33.61 | 0.60 | 20.22 | -19.84 | 146.61 | -25.23 | 134.83 | 0.5675 | 572.9 | 85.0 | |
| 1.00 | -39.00 | 0.60 | -39.00 | -20.28 | 146.43 | -25.41 | 135.20 | 0.5735 | -880.9 | 999999 | |
| 0.64 | 2.73 | 0.39 | 1.65 | -20.45 | 146.07 | -25.77 | 135.05 | 0.5788 | -772.9 | -605.4 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -20.69 | 145.99 | -25.85 | 135.28 | 0.5818 | -693.0 | -615.7 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -21.00 | 145.83 | -26.02 | 135.49 | 0.5864 | -883.0 | -755.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.09 | 146.75 | -25.10 | 126.53 | 0.5141 | 721.0 | 565.8 | |
| 0.00 | 3.54 | 0.00 | 2.14 | -19.56 | 145.80 | -26.04 | 133.58 | 0.5733 | 152.0 | 204.6 | |
| 1.64 | 4.18 | 0.99 | 2.54 | -20.10 | 145.56 | -26.29 | 134.05 | 0.5808 | -837.8 | -671.7 | |
| 1.00 | 2.82 | 0.61 | 1.70 | -19.61 | 145.47 | -26.38 | 133.29 | 0.5771 | -907.2 | -744.2 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -20.79 | 145.10 | -26.74 | 134.46 | 0.5917 | -518.0 | -560.7 | |
| 0.00 | 2.82 | 0.00 | 1.73 | -21.13 | 144.96 | -26.88 | 134.76 | 0.5962 | -729.0 | -617.5 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -20.86 | 144.94 | -26.90 | 134.39 | 0.5939 | -1010.0 | -814.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -19.41 | 145.21 | -26.63 | 132.77 | 0.5781 | -744.0 | -649.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -20.59 | 144.99 | -26.85 | 134.10 | 0.5910 | -808.0 | -693.2 | |
| 0.00 | 2.36 | 0.00 | 1.42 | -18.49 | 145.05 | -26.80 | 131.34 | 0.5716 | -820.0 | -619.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -20.40 | 144.70 | -27.14 | 133.55 | 0.5922 | -797.0 | -695.5 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -20.67 | 144.57 | -27.27 | 133.78 | 0.5959 | -759.0 | -662.0 | |
| 0.00 | 2.36 | 0.00 | 1.46 | -20.75 | 144.30 | -27.54 | 133.60 | 0.5994 | -915.0 | -721.8 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -20.51 | 144.35 | -27.50 | 133.34 | 0.5968 | -706.0 | -551.4 | |
| 0.00 | 1.64 | 0.00 | 1.03 | -22.25 | 143.76 | -28.08 | 134.98 | 0.6181 | -820.0 | -749.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -23.08 | 143.24 | -28.61 | 135.49 | 0.6306 | -602.0 | -493.8 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -22.88 | 143.17 | -28.67 | 135.18 | 0.6294 | -636.0 | -518.2 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -21.48 | 143.33 | -28.51 | 133.60 | 0.6156 | -900.0 | -763.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -21.08 | 143.42 | -28.42 | 133.17 | 0.6112 | -643.0 | -518.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -22.55 | 142.98 | -28.86 | 134.60 | 0.6283 | -754.0 | -630.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -18.87 | 143.71 | -28.13 | 130.53 | 0.5892 | -723.0 | -573.7 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -21.22 | 143.13 | -28.72 | 133.08 | 0.6154 | -649.0 | -538.4 | |
| 0.00 | 2.00 | 0.00 | 1.26 | -21.43 | 142.97 | -28.87 | 133.19 | 0.6187 | -508.0 | -432.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -22.49 | 142.73 | -29.11 | 134.29 | 0.6302 | -688.0 | -513.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -17.82 | 143.46 | -28.38 | 128.84 | 0.5832 | -648.0 | -391.0 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -18.61 | 142.73 | -29.11 | 129.25 | 0.5976 | -517.0 | -445.8 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -24.84 | 139.51 | -32.33 | 134.27 | 0.6801 | -353.0 | -317.5 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -22.01 | 134.28 | -37.56 | 126.99 | 0.7099 | -372.0 | -396.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
