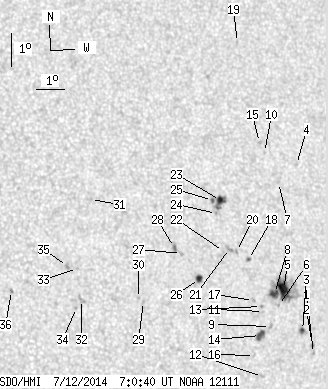

SDO HMI 2014-07-12 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.99 | 125.27 | 19.19 | 74.64 | 6.41 | 204.94 | 33.64 | 275.55 | 0.5553 | -294.6 | -127.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.84 | 3.94 | 207.44 | 36.14 | 271.14 | 0.5907 | -709.0 | -602.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 4.19 | 207.42 | 36.12 | 271.55 | 0.5903 | -835.0 | -667.2 | |
| 1.54 | 3.45 | 0.94 | 2.11 | 4.66 | 207.06 | 35.77 | 272.35 | 0.5852 | -891.2 | -692.0 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 9.73 | 207.31 | 36.01 | 280.97 | 0.5925 | -640.0 | -480.4 | |
| 13.35 | 51.14 | 8.08 | 30.96 | 5.94 | 206.44 | 35.14 | 274.57 | 0.5765 | -889.7 | -378.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 5.46 | 206.21 | 34.92 | 273.74 | 0.5732 | -681.0 | -605.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 9.21 | 206.56 | 35.26 | 280.22 | 0.5812 | -638.0 | -530.8 | |
| 4.91 | -5.00 | 2.96 | -5.00 | 5.83 | 206.09 | 34.79 | 274.40 | 0.5715 | -1021.7 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.42 | 4.83 | 205.87 | 34.58 | 272.64 | 0.5683 | -736.0 | -599.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 10.15 | 206.14 | 34.85 | 281.92 | 0.5770 | -732.0 | -632.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 5.30 | 205.64 | 34.35 | 273.47 | 0.5650 | -740.0 | -587.4 | |
| 0.00 | 1.64 | 0.00 | 0.98 | 3.32 | 205.50 | 34.21 | 269.95 | 0.5633 | 863.0 | 639.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 5.45 | 205.58 | 34.28 | 273.75 | 0.5641 | -821.0 | -735.5 | |
| 3.82 | 6.27 | 2.28 | 3.75 | 4.57 | 205.49 | 34.19 | 272.18 | 0.5627 | -935.4 | -700.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 10.46 | 205.99 | 34.70 | 282.49 | 0.5755 | -791.0 | -650.1 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 3.97 | 205.24 | 33.94 | 271.10 | 0.5592 | 512.0 | 422.5 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 5.65 | 205.30 | 34.00 | 274.10 | 0.5600 | -848.0 | -661.8 | |
| 0.55 | 2.09 | 0.33 | 1.25 | 6.91 | 205.21 | 33.91 | 276.36 | 0.5594 | -778.3 | -687.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 13.56 | 205.62 | 34.32 | 287.92 | 0.5783 | -740.0 | -545.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 7.17 | 204.78 | 33.49 | 276.88 | 0.5535 | -771.0 | -648.7 | |
| 0.00 | 3.63 | 0.00 | 2.15 | 7.27 | 204.53 | 33.24 | 277.09 | 0.5500 | -693.0 | -634.4 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 7.19 | 204.31 | 33.01 | 276.96 | 0.5466 | -783.0 | -593.1 | |
| 4.09 | 11.45 | 2.42 | 6.77 | 8.75 | 204.34 | 33.04 | 279.81 | 0.5490 | 904.0 | 699.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 8.35 | 204.16 | 32.86 | 279.13 | 0.5458 | 780.0 | 595.3 | |
| 0.73 | 1.91 | 0.43 | 1.13 | 8.76 | 204.05 | 32.75 | 279.88 | 0.5448 | 890.8 | 748.2 | |
| 3.00 | 4.45 | 1.75 | 2.60 | 6.40 | 203.37 | 32.07 | 275.59 | 0.5323 | -899.7 | -616.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 7.18 | 202.78 | 31.48 | 277.15 | 0.5242 | 476.0 | 369.7 | |
| 0.00 | 3.36 | 0.00 | 1.95 | 7.38 | 202.54 | 31.24 | 277.55 | 0.5209 | 799.0 | 672.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 5.77 | 201.32 | 30.02 | 274.53 | 0.5014 | 551.0 | 411.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 5.87 | 201.15 | 29.85 | 274.74 | 0.4989 | 662.0 | 539.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 8.95 | 199.69 | 28.39 | 281.29 | 0.4809 | 491.0 | 447.2 | |
| 0.00 | 3.91 | 0.00 | 2.19 | 5.91 | 199.16 | 27.86 | 274.99 | 0.4685 | 698.0 | 601.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 6.86 | 199.07 | 27.78 | 277.03 | 0.4681 | 753.0 | 637.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 5.67 | 198.97 | 27.67 | 274.49 | 0.4655 | 645.0 | 564.6 | |
| 0.00 | 2.45 | 0.00 | 1.37 | 6.93 | 198.73 | 27.44 | 277.24 | 0.4629 | 934.0 | 778.8 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 6.26 | 196.77 | 25.47 | 276.06 | 0.4317 | 833.0 | 649.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
