SDO HMI 2014-07-12 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.41 | 179.04 | 28.90 | 90.02 | 8.06 | 163.11 | -7.64 | 56.52 | 0.1542 | -317.3 | -251.4 | |
|
previous
or next observation for the same group /

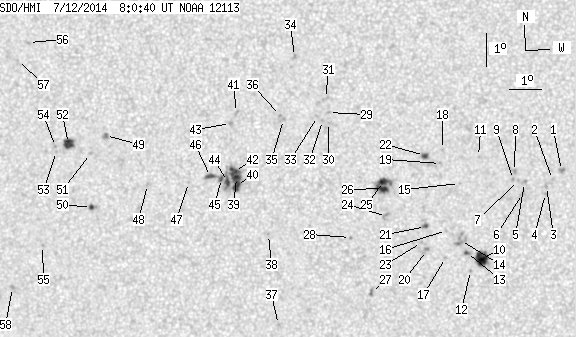

back to the solar disc SDO HMI 2014-07-12 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.91 | 0.00 | 1.44 | 8.61 | 170.68 | -0.07 | 0.87 | 0.0798 | -1186.0 | -936.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.33 | 170.40 | -0.35 | 4.59 | 0.0752 | -814.0 | -649.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.12 | 170.22 | -0.53 | 7.38 | 0.0719 | -997.0 | -778.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.91 | 170.19 | -0.56 | 8.23 | 0.0682 | -1011.0 | -780.7 | |
| 0.00 | 2.18 | 0.00 | 1.08 | 8.24 | 169.54 | -1.21 | 15.95 | 0.0763 | -776.0 | -758.1 | |
| 0.00 | 2.91 | 0.00 | 1.44 | 7.91 | 169.48 | -1.27 | 18.09 | 0.0710 | -947.0 | -681.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.30 | 169.35 | -1.39 | 17.99 | 0.0783 | -1020.0 | -736.5 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 8.58 | 169.23 | -1.52 | 18.36 | 0.0835 | -1036.0 | -831.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.33 | 169.20 | -1.55 | 19.70 | 0.0797 | -961.0 | -778.5 | |
| 12.44 | 15.72 | 6.17 | 7.80 | 5.92 | 168.23 | -2.52 | 53.27 | 0.0549 | -1180.4 | -660.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 9.04 | 168.12 | -2.63 | 27.54 | 0.0985 | -894.0 | -679.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 5.56 | 167.89 | -2.86 | 62.08 | 0.0565 | -824.0 | -671.0 | |
| 0.64 | 2.18 | 0.32 | 1.08 | 6.10 | 167.76 | -2.98 | 55.27 | 0.0633 | -1144.1 | -956.5 | |
| 0.00 | 8.90 | 0.00 | 4.42 | 6.47 | 167.58 | -3.17 | 52.43 | 0.0697 | -1005.0 | -882.9 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 8.21 | 167.54 | -3.21 | 37.38 | 0.0918 | -848.0 | -622.6 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.77 | 167.15 | -3.60 | 52.66 | 0.0788 | -687.0 | -497.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.95 | 167.12 | -3.63 | 62.16 | 0.0715 | -813.0 | -495.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.25 | 167.00 | -3.75 | 35.41 | 0.1118 | 847.0 | 637.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.82 | 166.95 | -3.80 | 38.22 | 0.1064 | 812.0 | 610.8 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 6.16 | 166.54 | -4.21 | 63.15 | 0.0822 | -840.0 | -818.5 | |
| 1.18 | 2.00 | 0.59 | 0.99 | 6.89 | 166.50 | -4.25 | 55.93 | 0.0892 | -1131.4 | -850.6 | |
| 1.82 | 3.72 | 0.91 | 1.86 | 9.06 | 166.45 | -4.30 | 40.24 | 0.1151 | 1211.2 | 880.9 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.40 | 166.38 | -4.37 | 61.42 | 0.0866 | -834.0 | -607.1 | |
| 0.00 | 4.36 | 0.00 | 2.17 | 7.19 | 165.30 | -5.45 | 59.71 | 0.1097 | -651.0 | -765.6 | |
| 4.36 | 19.71 | 2.18 | 9.84 | 8.26 | 165.19 | -5.56 | 52.45 | 0.1215 | -1151.8 | -860.5 | |
| 5.63 | -25.00 | 2.81 | -25.00 | 8.05 | 165.16 | -5.59 | 54.03 | 0.1197 | -1131.3 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.36 | 4.87 | 164.85 | -5.89 | 81.84 | 0.1038 | 1123.0 | 893.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.54 | 164.19 | -6.56 | 68.83 | 0.1222 | 934.0 | 768.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.36 | 163.44 | -7.30 | 48.56 | 0.1676 | 880.0 | 739.4 | |
| 0.00 | 0.73 | 0.00 | 0.36 | 10.05 | 163.45 | -7.30 | 49.96 | 0.1641 | 943.0 | 753.1 | |
| 0.00 | 2.63 | 0.00 | 1.33 | 10.79 | 163.34 | -7.41 | 47.06 | 0.1738 | 795.0 | 685.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.11 | 163.26 | -7.49 | 50.38 | 0.1673 | 898.0 | 702.3 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.23 | 163.10 | -7.65 | 50.40 | 0.1707 | 813.0 | 633.7 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 12.07 | 162.33 | -8.42 | 45.58 | 0.2013 | 886.0 | 738.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 10.13 | 162.04 | -8.71 | 54.39 | 0.1841 | 880.0 | 652.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.26 | 161.95 | -8.80 | 54.14 | 0.1867 | 1070.0 | 921.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 3.87 | 162.00 | -8.75 | 90.86 | 0.1525 | -908.0 | -741.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 6.61 | 161.65 | -9.10 | 73.81 | 0.1643 | -720.0 | -647.7 | |
| 5.00 | 42.69 | 2.52 | 21.56 | 8.34 | 160.62 | -10.13 | 66.43 | 0.1907 | -1297.2 | -703.3 | |
| 5.72 | -39.00 | 2.89 | -39.00 | 8.10 | 160.62 | -10.13 | 67.62 | 0.1891 | -1230.0 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 10.33 | 160.56 | -10.19 | 57.58 | 0.2070 | -971.0 | -710.9 | |
| 5.36 | -39.00 | 2.71 | -39.00 | 8.53 | 160.55 | -10.20 | 65.69 | 0.1930 | -1038.9 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 9.99 | 160.38 | -10.37 | 59.44 | 0.2067 | -878.0 | -718.6 | |
| 3.00 | -39.00 | 1.51 | -39.00 | 8.22 | 160.34 | -10.41 | 67.57 | 0.1943 | -1068.2 | 999999 | |
| 1.54 | -39.00 | 0.78 | -39.00 | 8.31 | 160.15 | -10.60 | 67.50 | 0.1979 | -890.5 | 999999 | |
| 2.27 | -39.00 | 1.15 | -39.00 | 8.37 | 159.80 | -10.95 | 67.85 | 0.2038 | -825.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 8.17 | 159.12 | -11.63 | 69.83 | 0.2136 | -685.0 | -462.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 8.09 | 157.83 | -12.92 | 71.92 | 0.2339 | 886.0 | 664.0 | |
| 0.00 | 3.72 | 0.00 | 1.91 | 9.57 | 156.44 | -14.31 | 68.02 | 0.2640 | 1059.0 | 912.8 | |
| 1.64 | 3.82 | 0.84 | 1.96 | 7.37 | 156.08 | -14.67 | 76.55 | 0.2594 | 955.0 | 791.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.01 | 155.98 | -14.76 | 70.57 | 0.2681 | 1070.0 | 814.6 | |
| 6.81 | 9.17 | 3.52 | 4.73 | 9.31 | 155.27 | -15.48 | 70.34 | 0.2809 | 1086.3 | 802.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 9.06 | 154.90 | -15.85 | 71.57 | 0.2856 | 809.0 | 620.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 9.21 | 154.86 | -15.89 | 71.10 | 0.2870 | 967.0 | 758.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 6.18 | 154.55 | -16.20 | 81.81 | 0.2814 | 789.0 | 582.1 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 12.38 | 153.81 | -16.94 | 62.55 | 0.3221 | 878.0 | 681.3 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 11.82 | 153.48 | -17.26 | 64.54 | 0.3231 | 855.0 | 717.6 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 4.88 | 153.63 | -17.12 | 86.57 | 0.2951 | 984.0 | 780.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
