SDO HMI 2014-07-12 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.42 | 993.41 | 137.65 | 802.94 | -7.85 | 221.14 | 50.94 | 256.79 | 0.7920 | 708.3 | 258.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

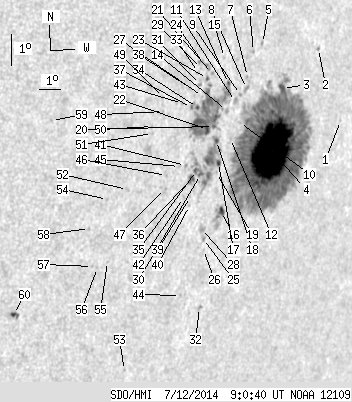

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.65 | -7.26 | 225.48 | 55.27 | 258.49 | 0.8341 | 443.0 | 383.8 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -4.95 | 223.96 | 53.76 | 260.97 | 0.8158 | 485.0 | 432.2 | |
| 4.18 | 720.07 | 3.44 | 593.07 | -6.08 | 222.26 | 52.06 | 259.25 | 0.8005 | 26.5 | 298.2 | |
| 142.89 | -3.00 | 117.85 | -3.00 | -7.99 | 222.01 | 51.81 | 256.84 | 0.8015 | 1217.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.30 | -4.63 | 221.10 | 50.90 | 260.83 | 0.7858 | -319.0 | -248.2 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -4.85 | 220.69 | 50.49 | 260.46 | 0.7817 | -425.0 | -371.0 | |
| 0.00 | 0.73 | 0.00 | 0.57 | -5.61 | 220.48 | 50.28 | 259.46 | 0.7809 | -370.0 | -247.4 | |
| 0.00 | 3.27 | 0.00 | 2.59 | -5.98 | 220.48 | 50.28 | 258.99 | 0.7816 | -203.0 | -82.2 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -6.15 | 220.21 | 50.01 | 258.71 | 0.7790 | -129.0 | -74.9 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -7.02 | 220.28 | 50.08 | 257.63 | 0.7816 | 415.0 | 399.8 | |
| 0.00 | 3.54 | 0.00 | 2.78 | -6.36 | 220.00 | 49.80 | 258.40 | 0.7772 | -470.0 | -357.9 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -7.50 | 219.92 | 49.72 | 256.94 | 0.7787 | 309.0 | 266.6 | |
| 0.82 | 118.36 | 0.63 | 90.58 | -5.78 | 219.60 | 49.39 | 259.05 | 0.7716 | -356.4 | 287.8 | |
| 0.00 | 2.18 | 0.00 | 1.70 | -6.61 | 219.61 | 49.40 | 257.98 | 0.7734 | -138.0 | -72.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -4.96 | 219.32 | 49.12 | 260.04 | 0.7670 | -405.0 | -284.5 | |
| 3.45 | 14.35 | 2.74 | 11.38 | -9.77 | 219.90 | 49.70 | 254.08 | 0.7838 | 717.0 | 450.1 | |
| 1.91 | 71.31 | 1.49 | 55.10 | -8.22 | 219.47 | 49.27 | 255.91 | 0.7755 | 836.2 | 362.0 | |
| 1.54 | -17.00 | 1.20 | -17.00 | -7.52 | 219.26 | 49.06 | 256.74 | 0.7717 | 813.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -8.53 | 219.43 | 49.23 | 255.51 | 0.7758 | 702.0 | 640.6 | |
| 0.73 | -13.00 | 0.56 | -13.00 | -7.08 | 219.06 | 48.86 | 257.25 | 0.7685 | 690.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -5.42 | 218.80 | 48.60 | 259.32 | 0.7622 | -312.0 | -243.1 | |
| 3.63 | -13.00 | 2.79 | -13.00 | -7.16 | 218.79 | 48.59 | 257.08 | 0.7657 | 957.0 | 999999 | |
| 0.64 | 2.09 | 0.48 | 1.59 | -5.57 | 218.59 | 48.39 | 259.09 | 0.7601 | -556.6 | -489.5 | |
| 0.00 | 5.90 | 0.00 | 4.46 | -5.12 | 218.40 | 48.20 | 259.62 | 0.7571 | -475.0 | -438.1 | |
| 0.00 | 1.82 | 0.00 | 1.43 | -10.58 | 219.21 | 49.01 | 252.87 | 0.7787 | -184.0 | -188.0 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -10.93 | 219.29 | 49.08 | 252.45 | 0.7804 | -275.0 | -329.7 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -6.11 | 218.42 | 48.22 | 258.33 | 0.7593 | -367.0 | -222.9 | |
| 0.00 | 4.91 | 0.00 | 3.84 | -10.26 | 219.05 | 48.84 | 253.22 | 0.7761 | -173.0 | -108.4 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -5.24 | 218.28 | 48.08 | 259.44 | 0.7560 | -629.0 | -494.5 | |
| 1.27 | -17.00 | 0.98 | -17.00 | -8.55 | 218.68 | 48.48 | 255.27 | 0.7678 | -84.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -5.74 | 218.28 | 48.08 | 258.79 | 0.7570 | -662.0 | -540.0 | |
| 0.00 | 1.64 | 0.00 | 1.31 | -12.78 | 219.54 | 49.34 | 250.26 | 0.7882 | -500.0 | -428.4 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -5.36 | 218.15 | 47.95 | 259.26 | 0.7548 | -521.0 | -438.1 | |
| 1.00 | -13.00 | 0.76 | -13.00 | -6.44 | 218.23 | 48.03 | 257.86 | 0.7579 | -521.1 | 999999 | |
| 1.54 | -17.00 | 1.18 | -17.00 | -8.41 | 218.47 | 48.27 | 255.39 | 0.7652 | -407.4 | 999999 | |
| 2.73 | -17.00 | 2.08 | -17.00 | -8.65 | 218.28 | 48.07 | 255.02 | 0.7637 | -620.7 | 999999 | |
| 0.55 | -13.00 | 0.41 | -13.00 | -6.43 | 217.95 | 47.75 | 257.81 | 0.7548 | -594.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | -5.83 | 217.84 | 47.63 | 258.56 | 0.7522 | -608.0 | -458.2 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -9.22 | 218.33 | 48.13 | 254.32 | 0.7657 | -344.0 | -257.1 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -9.50 | 218.33 | 48.13 | 253.96 | 0.7665 | -382.0 | -318.8 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -8.23 | 217.93 | 47.73 | 255.47 | 0.7588 | -422.0 | -376.9 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -9.23 | 218.01 | 47.80 | 254.20 | 0.7622 | -489.0 | -459.7 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -6.28 | 217.52 | 47.32 | 257.89 | 0.7497 | -547.0 | -428.8 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -12.34 | 218.53 | 48.32 | 250.45 | 0.7765 | -608.0 | -467.0 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -8.24 | 217.66 | 47.46 | 255.37 | 0.7558 | -502.0 | -388.4 | |
| 0.00 | 0.91 | 0.00 | 0.68 | -8.49 | 217.10 | 46.90 | 254.88 | 0.7504 | -763.0 | -618.4 | |
| 0.00 | 1.09 | 0.00 | 0.82 | -8.90 | 217.12 | 46.92 | 254.36 | 0.7517 | -577.0 | -587.2 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -6.48 | 216.69 | 46.49 | 257.40 | 0.7406 | -434.0 | -328.9 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -6.05 | 216.64 | 46.44 | 257.97 | 0.7391 | -290.0 | -306.4 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -6.93 | 216.25 | 46.05 | 256.70 | 0.7367 | -561.0 | -511.3 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -7.15 | 216.28 | 46.08 | 256.41 | 0.7376 | -464.0 | -423.1 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -8.84 | 215.42 | 45.22 | 253.89 | 0.7323 | -559.0 | -511.3 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -14.62 | 216.52 | 46.31 | 246.86 | 0.7632 | -409.0 | -394.6 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -9.11 | 214.59 | 44.39 | 253.25 | 0.7235 | -177.0 | -165.5 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -11.07 | 214.93 | 44.73 | 250.77 | 0.7337 | -486.0 | -426.4 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -11.24 | 214.52 | 44.32 | 250.40 | 0.7298 | -545.0 | -422.3 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -11.20 | 214.30 | 44.10 | 250.37 | 0.7271 | -553.0 | -509.2 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -9.99 | 213.95 | 43.75 | 251.85 | 0.7190 | -513.0 | -425.6 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -6.52 | 211.89 | 41.69 | 255.92 | 0.6835 | -631.0 | -493.8 | |
| 1.54 | 4.54 | 1.06 | 3.13 | -12.56 | 211.21 | 41.01 | 247.22 | 0.6969 | -796.5 | -563.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
