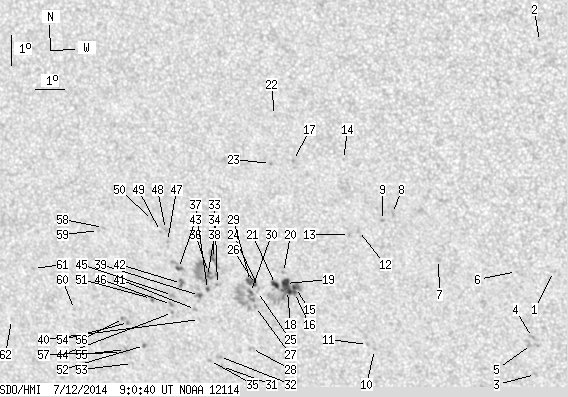

SDO HMI 2014-07-12 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.07 | 215.84 | 14.69 | 127.39 | -20.22 | 147.90 | -22.30 | 139.01 | 0.5433 | 125.7 | 64.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.00 | -19.46 | 158.33 | -11.87 | 154.00 | 0.4441 | 465.0 | 377.7 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -12.00 | 158.33 | -11.87 | 143.83 | 0.3423 | 519.0 | 561.6 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -22.95 | 157.43 | -12.77 | 155.77 | 0.4981 | 715.0 | 582.4 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -21.69 | 157.45 | -12.75 | 154.63 | 0.4808 | 950.0 | 741.2 | |
| 0.00 | 6.27 | 0.00 | 3.54 | -21.93 | 157.39 | -12.81 | 154.77 | 0.4844 | 387.0 | 596.9 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -19.48 | 157.11 | -13.09 | 151.75 | 0.4531 | 751.0 | 658.2 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -19.12 | 154.54 | -15.66 | 146.89 | 0.4688 | 616.0 | 599.5 | |
| 0.00 | 2.36 | 0.00 | 1.32 | -17.63 | 153.14 | -17.06 | 142.68 | 0.4629 | 846.0 | 591.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -17.87 | 152.79 | -17.42 | 142.43 | 0.4691 | 720.0 | 657.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.20 | 152.00 | -18.20 | 146.62 | 0.5278 | 653.0 | 487.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -22.03 | 151.78 | -18.42 | 146.12 | 0.5276 | 652.0 | 518.7 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -18.22 | 151.94 | -18.26 | 141.61 | 0.4812 | 793.0 | 611.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -18.36 | 151.62 | -18.58 | 141.32 | 0.4859 | 639.0 | 581.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -15.91 | 151.68 | -18.53 | 137.87 | 0.4574 | 671.0 | 487.1 | |
| 2.91 | 43.78 | 1.69 | 25.57 | -20.17 | 149.54 | -20.66 | 140.79 | 0.5260 | 1032.6 | 340.5 | |
| 1.09 | -15.00 | 0.64 | -15.00 | -20.33 | 149.48 | -20.72 | 140.93 | 0.5284 | 835.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.98 | 149.99 | -20.21 | 135.53 | 0.4761 | 726.0 | 699.7 | |
| 4.63 | -15.00 | 2.70 | -15.00 | -20.27 | 149.24 | -20.96 | 140.54 | 0.5300 | 844.3 | 999999 | |
| 5.45 | -15.00 | 3.17 | -15.00 | -20.04 | 149.21 | -20.99 | 140.19 | 0.5278 | 1041.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.67 | 149.19 | -21.01 | 139.69 | 0.5239 | 814.0 | 691.2 | |
| 3.00 | -15.00 | 1.75 | -15.00 | -20.08 | 148.85 | -21.35 | 139.79 | 0.5316 | 821.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -14.54 | 149.50 | -20.71 | 132.57 | 0.4666 | 572.0 | 466.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -16.09 | 149.19 | -21.01 | 134.62 | 0.4859 | 828.0 | 673.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -20.20 | 148.24 | -21.96 | 139.16 | 0.5387 | 501.0 | 486.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -20.33 | 148.19 | -22.01 | 139.26 | 0.5407 | 479.0 | 473.3 | |
| 0.45 | 7.81 | 0.27 | 4.59 | -20.10 | 148.15 | -22.05 | 138.92 | 0.5385 | 904.4 | 698.9 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -20.84 | 148.04 | -22.16 | 139.72 | 0.5475 | 55.0 | 42.4 | |
| 0.00 | 2.45 | 0.00 | 1.47 | -22.27 | 147.66 | -22.54 | 141.03 | 0.5661 | 619.0 | 420.6 | |
| 2.63 | -26.00 | 1.55 | -26.00 | -20.01 | 147.99 | -22.21 | 138.59 | 0.5391 | 798.3 | 999999 | |
| 0.64 | 29.16 | 0.37 | 17.23 | -20.38 | 147.93 | -22.27 | 139.00 | 0.5435 | 623.7 | 74.8 | |
| 0.00 | 2.54 | 0.00 | 1.55 | -22.92 | 146.47 | -23.73 | 140.39 | 0.5837 | -724.0 | -558.8 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -22.58 | 146.46 | -23.74 | 139.98 | 0.5803 | -776.0 | -661.2 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -20.14 | 146.81 | -23.39 | 137.33 | 0.5521 | 397.0 | 311.9 | |
| 0.00 | 9.36 | 0.00 | 5.51 | -19.27 | 146.80 | -23.40 | 136.17 | 0.5434 | 870.0 | 671.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -22.72 | 146.07 | -24.13 | 139.71 | 0.5854 | -763.0 | -575.1 | |
| 0.55 | 33.61 | 0.32 | 19.95 | -19.75 | 146.55 | -23.65 | 136.51 | 0.5507 | 757.0 | 159.2 | |
| 0.73 | -36.00 | 0.43 | -36.00 | -20.32 | 146.42 | -23.78 | 137.11 | 0.5577 | -901.5 | 999999 | |
| 0.45 | -36.00 | 0.27 | -36.00 | -19.88 | 146.49 | -23.71 | 136.62 | 0.5526 | 622.2 | 999999 | |
| 0.91 | 4.36 | 0.54 | 2.61 | -20.53 | 146.10 | -24.10 | 137.01 | 0.5629 | -744.6 | -549.6 | |
| 0.00 | 0.55 | 0.00 | 0.33 | -21.34 | 145.96 | -24.24 | 137.89 | 0.5724 | -542.0 | -394.8 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -21.00 | 145.88 | -24.32 | 137.37 | 0.5699 | -843.0 | -669.4 | |
| 0.00 | 4.27 | 0.00 | 2.56 | -20.14 | 145.53 | -24.68 | 135.86 | 0.5649 | -899.0 | -721.8 | |
| 1.18 | 6.00 | 0.71 | 3.58 | -19.64 | 145.50 | -24.70 | 135.17 | 0.5603 | -819.3 | -636.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -21.13 | 145.03 | -25.17 | 136.58 | 0.5794 | -778.0 | -628.6 | |
| 0.00 | 2.63 | 0.00 | 1.59 | -20.56 | 145.13 | -25.07 | 135.96 | 0.5728 | -870.0 | -687.2 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -20.86 | 145.04 | -25.16 | 136.25 | 0.5767 | -931.0 | -768.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -18.76 | 145.26 | -24.95 | 133.69 | 0.5544 | -654.0 | -544.3 | |
| 0.00 | 2.73 | 0.00 | 1.61 | -18.36 | 145.25 | -24.95 | 133.13 | 0.5507 | -821.0 | -597.5 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -18.43 | 145.06 | -25.14 | 133.02 | 0.5534 | -749.0 | -699.3 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -18.08 | 144.83 | -25.37 | 132.27 | 0.5526 | -802.0 | -615.8 | |
| 0.00 | 2.91 | 0.00 | 1.77 | -20.68 | 144.35 | -25.85 | 135.27 | 0.5818 | -740.0 | -653.2 | |
| 0.45 | 1.73 | 0.28 | 1.07 | -22.28 | 143.78 | -26.42 | 136.70 | 0.6025 | -917.6 | -744.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -22.92 | 143.20 | -27.00 | 136.87 | 0.6139 | -625.0 | -432.9 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -21.52 | 143.35 | -26.85 | 135.30 | 0.5996 | -752.0 | -696.9 | |
| 0.00 | 2.45 | 0.00 | 1.53 | -22.44 | 143.04 | -27.16 | 136.14 | 0.6110 | -841.0 | -604.5 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -21.39 | 143.19 | -27.01 | 134.97 | 0.5999 | -723.0 | -624.0 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -22.55 | 142.87 | -27.33 | 136.10 | 0.6137 | -647.0 | -536.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -18.37 | 143.03 | -27.17 | 130.79 | 0.5746 | -606.0 | -574.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -18.47 | 142.83 | -27.37 | 130.74 | 0.5777 | -539.0 | -420.8 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -21.15 | 141.42 | -28.78 | 132.93 | 0.6154 | -582.0 | -498.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -19.82 | 140.17 | -30.03 | 130.06 | 0.6173 | -705.0 | -579.9 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -21.57 | 138.94 | -31.26 | 131.24 | 0.6440 | -572.0 | -434.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
