SDO HMI 2014-07-12 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.07 | 192.57 | 10.51 | 113.19 | -20.13 | 147.10 | -22.00 | 139.20 | 0.5391 | -37.2 | 47.2 | |
|
previous
or next observation for the same group /

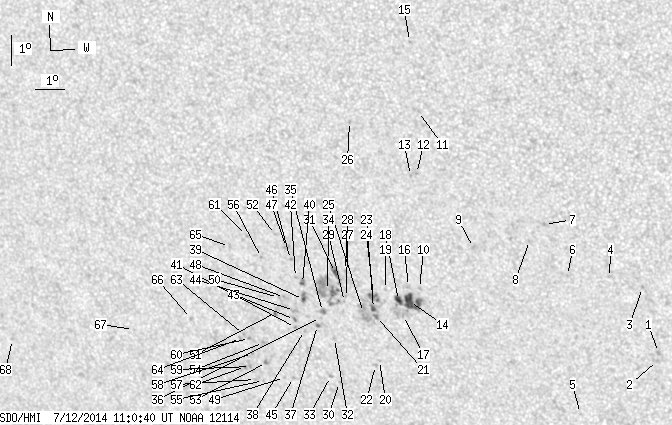

back to the solar disc SDO HMI 2014-07-12 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.02 | -21.70 | 157.49 | -11.61 | 156.66 | 0.4738 | 801.0 | 696.9 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -21.97 | 157.44 | -11.67 | 156.80 | 0.4779 | 662.0 | 511.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.53 | 157.14 | -11.97 | 153.88 | 0.4458 | 913.0 | 770.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.21 | 156.07 | -13.03 | 151.56 | 0.4491 | 716.0 | 512.1 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -23.83 | 154.64 | -14.47 | 153.86 | 0.5208 | 522.0 | 551.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.17 | 154.68 | -14.43 | 149.04 | 0.4593 | 769.0 | 618.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.50 | 154.06 | -15.04 | 145.86 | 0.4429 | 900.0 | 714.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.03 | 153.52 | -15.59 | 145.63 | 0.4544 | 622.0 | 559.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -18.30 | 151.61 | -17.49 | 142.90 | 0.4749 | 655.0 | 568.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -19.70 | 149.61 | -19.49 | 141.79 | 0.5099 | 932.0 | 699.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -13.92 | 150.20 | -18.90 | 134.11 | 0.4398 | 795.0 | 537.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -15.92 | 149.94 | -19.16 | 136.95 | 0.4642 | 891.0 | 696.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -15.99 | 149.74 | -19.37 | 136.75 | 0.4672 | 756.0 | 660.4 | |
| 8.72 | 28.43 | 5.04 | 16.46 | -20.15 | 149.21 | -19.89 | 141.80 | 0.5186 | 948.9 | 689.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.69 | 150.08 | -19.02 | 129.97 | 0.4183 | 672.0 | 510.5 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -19.64 | 149.24 | -19.86 | 141.20 | 0.5127 | 409.0 | 483.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -20.62 | 148.94 | -20.17 | 142.03 | 0.5265 | 21.0 | 77.1 | |
| 3.54 | -14.00 | 2.05 | -14.00 | -20.12 | 148.83 | -20.27 | 141.26 | 0.5219 | 802.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -19.76 | 148.43 | -20.67 | 140.26 | 0.5217 | 769.0 | 523.3 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -22.17 | 147.86 | -21.24 | 142.51 | 0.5534 | 495.0 | 406.4 | |
| 0.00 | 3.09 | 0.00 | 1.81 | -20.68 | 147.99 | -21.11 | 140.85 | 0.5359 | 692.0 | 581.0 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -22.34 | 147.69 | -21.41 | 142.51 | 0.5568 | 648.0 | 442.4 | |
| 1.45 | 3.18 | 0.85 | 1.86 | -20.41 | 147.92 | -21.18 | 140.43 | 0.5336 | 663.6 | 570.7 | |
| 0.00 | 7.72 | 0.00 | 4.50 | -20.04 | 147.98 | -21.13 | 140.02 | 0.5291 | 769.0 | 745.3 | |
| 0.00 | 14.08 | 0.00 | 8.26 | -20.56 | 147.55 | -21.55 | 140.13 | 0.5387 | -124.0 | -96.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -14.29 | 147.85 | -21.25 | 131.45 | 0.4704 | 722.0 | 579.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -20.07 | 147.03 | -22.07 | 138.85 | 0.5384 | 384.0 | 386.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -19.17 | 147.13 | -21.98 | 137.77 | 0.5280 | 722.0 | 596.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -20.20 | 146.94 | -22.16 | 138.91 | 0.5408 | 400.0 | 339.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -22.96 | 146.30 | -22.80 | 141.54 | 0.5758 | -691.0 | -468.0 | |
| 2.09 | 9.99 | 1.22 | 5.84 | -19.24 | 146.77 | -22.34 | 137.42 | 0.5324 | 797.5 | 641.7 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -21.46 | 146.39 | -22.72 | 139.82 | 0.5593 | -817.0 | -574.1 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -22.76 | 146.02 | -23.09 | 140.96 | 0.5763 | -779.0 | -560.0 | |
| 0.00 | 39.69 | 0.00 | 23.37 | -19.85 | 146.40 | -22.71 | 137.78 | 0.5424 | 244.0 | 151.9 | |
| 0.00 | 3.54 | 0.00 | 2.10 | -20.56 | 146.11 | -23.00 | 138.35 | 0.5525 | -818.0 | -535.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -20.77 | 146.00 | -23.10 | 138.49 | 0.5556 | -671.0 | -499.2 | |
| 0.36 | 2.18 | 0.22 | 1.30 | -21.04 | 145.85 | -23.25 | 138.66 | 0.5599 | -808.2 | -613.7 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -21.22 | 145.36 | -23.75 | 138.31 | 0.5665 | -694.0 | -638.4 | |
| 1.09 | 4.09 | 0.65 | 2.43 | -20.18 | 145.50 | -23.61 | 137.13 | 0.5546 | -797.8 | -768.5 | |
| 0.82 | 3.54 | 0.48 | 2.10 | -19.64 | 145.55 | -23.56 | 136.48 | 0.5487 | -871.1 | -777.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -21.13 | 145.05 | -24.05 | 137.84 | 0.5685 | -760.0 | -631.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -19.45 | 145.33 | -23.77 | 135.97 | 0.5490 | -820.0 | -717.4 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -20.86 | 145.06 | -24.04 | 137.51 | 0.5657 | -908.0 | -776.5 | |
| 0.00 | 3.18 | 0.00 | 1.90 | -20.56 | 145.11 | -23.99 | 137.18 | 0.5622 | -915.0 | -693.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -22.83 | 144.66 | -24.44 | 139.50 | 0.5893 | -817.0 | -650.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -18.86 | 145.25 | -23.86 | 135.06 | 0.5440 | -719.0 | -642.0 | |
| 0.00 | 2.91 | 0.00 | 1.71 | -18.46 | 145.16 | -23.94 | 134.42 | 0.5410 | -822.0 | -744.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -20.13 | 144.83 | -24.27 | 136.29 | 0.5608 | -871.0 | -745.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -22.84 | 144.33 | -24.77 | 139.15 | 0.5924 | -645.0 | -553.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -20.14 | 144.61 | -24.49 | 136.06 | 0.5630 | -584.0 | -508.0 | |
| 0.00 | 2.45 | 0.00 | 1.48 | -20.64 | 144.42 | -24.68 | 136.50 | 0.5699 | -577.0 | -658.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -18.04 | 144.84 | -24.26 | 133.46 | 0.5404 | -828.0 | -635.7 | |
| 0.00 | 2.18 | 0.00 | 1.34 | -22.35 | 143.77 | -25.33 | 137.94 | 0.5928 | -853.0 | -767.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -21.67 | 143.80 | -25.31 | 137.12 | 0.5860 | -721.0 | -526.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -22.97 | 143.54 | -25.56 | 138.44 | 0.6010 | -643.0 | -547.5 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -18.82 | 144.22 | -24.88 | 133.85 | 0.5543 | -684.0 | -577.3 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -22.95 | 143.25 | -25.85 | 138.10 | 0.6035 | -587.0 | -535.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -22.06 | 143.32 | -25.78 | 137.09 | 0.5943 | -700.0 | -495.6 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -22.51 | 143.16 | -25.95 | 137.47 | 0.6001 | -825.0 | -740.9 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -21.55 | 143.31 | -25.79 | 136.45 | 0.5895 | -891.0 | -808.4 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -18.11 | 143.80 | -25.30 | 132.39 | 0.5521 | -702.0 | -591.4 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -22.51 | 142.97 | -26.13 | 137.28 | 0.6019 | -761.0 | -605.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -21.42 | 143.12 | -25.99 | 136.08 | 0.5902 | -709.0 | -569.4 | |
| 0.00 | 1.91 | 0.00 | 1.17 | -21.56 | 142.98 | -26.12 | 136.11 | 0.5928 | -584.0 | -463.8 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -18.49 | 143.14 | -25.97 | 132.21 | 0.5628 | -779.0 | -490.3 | |
| 0.00 | 1.91 | 0.00 | 1.18 | -20.94 | 141.30 | -27.80 | 133.62 | 0.6038 | -630.0 | -506.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -21.39 | 139.04 | -30.07 | 132.06 | 0.6305 | -270.0 | -283.8 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -21.92 | 134.19 | -34.92 | 128.75 | 0.6832 | -590.0 | -407.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
