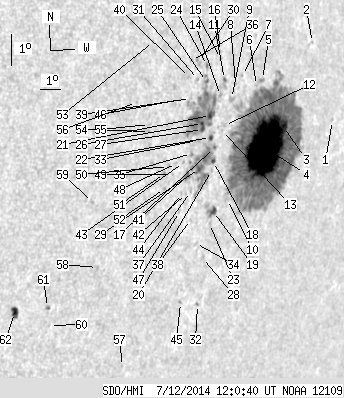

SDO HMI 2014-07-12 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.02 | 929.47 | 125.93 | 780.40 | -7.94 | 221.22 | 52.67 | 257.09 | 0.8098 | 676.8 | 257.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.19 | -7.36 | 225.57 | 57.01 | 258.71 | 0.8503 | 317.0 | 298.1 | |
| 0.00 | 0.73 | 0.00 | 0.65 | -4.86 | 224.05 | 55.50 | 261.38 | 0.8327 | 342.0 | 319.4 | |
| 3.81 | 677.88 | 3.33 | 580.81 | -7.39 | 222.88 | 54.33 | 258.14 | 0.8253 | 181.6 | 287.9 | |
| 119.97 | -3.00 | 102.87 | -3.00 | -8.02 | 222.05 | 53.50 | 257.20 | 0.8184 | 1194.0 | 999999 | |
| 0.00 | 2.54 | 0.00 | 2.13 | -5.85 | 221.54 | 52.99 | 259.72 | 0.8095 | 457.0 | 320.1 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -6.02 | 221.26 | 52.71 | 259.45 | 0.8069 | 378.0 | 358.2 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -5.67 | 220.51 | 51.96 | 259.73 | 0.7986 | -245.0 | -186.1 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -5.90 | 220.19 | 51.64 | 259.38 | 0.7957 | -226.0 | -207.9 | |
| 0.00 | 3.72 | 0.00 | 3.03 | -6.36 | 220.05 | 51.50 | 258.79 | 0.7951 | -61.0 | -69.6 | |
| 0.00 | 2.27 | 0.00 | 1.89 | -9.52 | 220.41 | 51.86 | 254.99 | 0.8052 | 270.0 | 226.4 | |
| 0.45 | 4.63 | 0.37 | 3.73 | -5.74 | 219.63 | 51.07 | 259.46 | 0.7896 | -383.2 | -20.4 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -7.18 | 219.83 | 51.27 | 257.71 | 0.7944 | 339.0 | 298.2 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -7.33 | 219.75 | 51.20 | 257.51 | 0.7939 | 626.0 | 544.8 | |
| 0.00 | 1.73 | 0.00 | 1.38 | -6.23 | 219.49 | 50.94 | 258.82 | 0.7891 | 143.0 | 135.8 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -5.08 | 219.35 | 50.80 | 260.23 | 0.7855 | -454.0 | -396.8 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -4.86 | 219.33 | 50.78 | 260.50 | 0.7849 | -497.0 | -413.9 | |
| 0.64 | 62.57 | 0.51 | 50.14 | -7.84 | 219.44 | 50.89 | 256.80 | 0.7918 | 610.0 | 365.0 | |
| 1.36 | -17.00 | 1.10 | -17.00 | -8.28 | 219.47 | 50.92 | 256.27 | 0.7930 | 885.2 | 999999 | |
| 3.00 | 12.99 | 2.46 | 10.62 | -9.86 | 219.78 | 51.23 | 254.41 | 0.7997 | 724.2 | 451.7 | |
| 0.00 | 1.45 | 0.00 | 1.18 | -8.55 | 219.42 | 50.87 | 255.91 | 0.7931 | 615.0 | 586.6 | |
| 2.63 | 96.54 | 2.10 | 76.23 | -6.83 | 219.09 | 50.54 | 257.98 | 0.7860 | 431.9 | 275.8 | |
| 1.63 | -17.00 | 1.31 | -17.00 | -7.52 | 219.19 | 50.64 | 257.14 | 0.7885 | 710.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.12 | -10.22 | 219.66 | 51.11 | 253.92 | 0.7994 | 197.0 | 218.2 | |
| 0.00 | 1.73 | 0.00 | 1.36 | -5.26 | 218.74 | 50.19 | 259.88 | 0.7793 | -325.0 | -320.2 | |
| 0.82 | -21.00 | 0.64 | -21.00 | -5.76 | 218.75 | 50.20 | 259.25 | 0.7803 | -548.8 | 999999 | |
| 1.18 | -21.00 | 0.94 | -21.00 | -7.06 | 218.73 | 50.18 | 257.61 | 0.7827 | 947.5 | 999999 | |
| 1.91 | -21.00 | 1.51 | -21.00 | -7.24 | 218.76 | 50.21 | 257.38 | 0.7834 | 860.6 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.57 | -11.29 | 219.57 | 51.01 | 252.60 | 0.8010 | -103.0 | -195.7 | |
| 4.36 | -17.00 | 3.48 | -17.00 | -8.46 | 218.82 | 50.27 | 255.87 | 0.7866 | 297.9 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.62 | -5.11 | 218.30 | 49.74 | 259.97 | 0.7742 | -568.0 | -481.8 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -5.67 | 218.36 | 49.81 | 259.27 | 0.7759 | -483.0 | -447.2 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -12.78 | 219.71 | 51.16 | 250.84 | 0.8063 | -437.0 | -407.5 | |
| 0.00 | 2.36 | 0.00 | 1.87 | -7.57 | 218.57 | 50.02 | 256.92 | 0.7821 | 307.0 | 255.7 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -10.82 | 219.11 | 50.56 | 253.03 | 0.7952 | -248.0 | -319.4 | |
| 0.00 | 2.18 | 0.00 | 1.72 | -7.96 | 218.35 | 49.80 | 256.37 | 0.7805 | 473.0 | 421.0 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -5.06 | 217.96 | 49.41 | 259.96 | 0.7704 | -407.0 | -314.2 | |
| 0.00 | 1.18 | 0.00 | 0.94 | -9.16 | 218.51 | 49.96 | 254.92 | 0.7850 | -188.0 | -170.2 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -10.04 | 218.69 | 50.14 | 253.87 | 0.7890 | -299.0 | -229.4 | |
| 0.00 | 1.27 | 0.00 | 0.99 | -6.24 | 218.05 | 49.50 | 258.47 | 0.7737 | -622.0 | -454.8 | |
| 0.00 | 1.91 | 0.00 | 1.48 | -5.59 | 217.92 | 49.37 | 259.28 | 0.7710 | -201.0 | -216.7 | |
| 2.00 | 4.36 | 1.58 | 3.44 | -8.65 | 218.27 | 49.72 | 255.49 | 0.7813 | -562.7 | -454.9 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -9.21 | 218.33 | 49.78 | 254.80 | 0.7833 | -300.0 | -315.8 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -8.23 | 218.01 | 49.46 | 255.95 | 0.7775 | -428.0 | -362.3 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -9.20 | 218.09 | 49.54 | 254.75 | 0.7807 | -509.0 | -431.5 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -12.67 | 218.84 | 50.28 | 250.70 | 0.7974 | -697.0 | -564.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -6.25 | 217.58 | 49.02 | 258.35 | 0.7685 | -559.0 | -473.6 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -9.76 | 218.10 | 49.55 | 254.05 | 0.7822 | -435.0 | -327.8 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -8.24 | 217.68 | 49.13 | 255.84 | 0.7740 | -544.0 | -414.8 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -8.57 | 217.55 | 48.99 | 255.38 | 0.7734 | -492.0 | -445.0 | |
| 0.00 | 1.73 | 0.00 | 1.34 | -8.31 | 217.31 | 48.76 | 255.65 | 0.7703 | -470.0 | -401.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -8.52 | 217.16 | 48.61 | 255.34 | 0.7692 | -705.0 | -637.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -8.99 | 217.24 | 48.69 | 254.76 | 0.7712 | -659.0 | -590.3 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -4.38 | 216.13 | 47.58 | 260.46 | 0.7487 | -585.0 | -498.9 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -7.17 | 216.26 | 47.71 | 256.83 | 0.7560 | -455.0 | -435.0 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -6.95 | 216.23 | 47.68 | 257.11 | 0.7552 | -549.0 | -443.5 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -6.23 | 215.55 | 47.00 | 257.87 | 0.7459 | -570.0 | -514.3 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -14.58 | 216.58 | 48.02 | 247.58 | 0.7806 | -451.0 | -354.3 | |
| 0.00 | 1.82 | 0.00 | 1.35 | -11.33 | 214.62 | 46.07 | 250.93 | 0.7494 | -293.0 | -296.5 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -9.26 | 214.01 | 45.46 | 253.42 | 0.7363 | -683.0 | -527.7 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -13.07 | 212.87 | 44.31 | 248.00 | 0.7362 | 520.0 | 358.2 | |
| 0.36 | 1.73 | 0.26 | 1.25 | -12.49 | 212.65 | 44.10 | 248.67 | 0.7317 | 604.5 | 558.2 | |
| 4.90 | 7.36 | 3.47 | 5.21 | -12.58 | 211.24 | 42.69 | 247.96 | 0.7163 | -693.1 | -399.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
