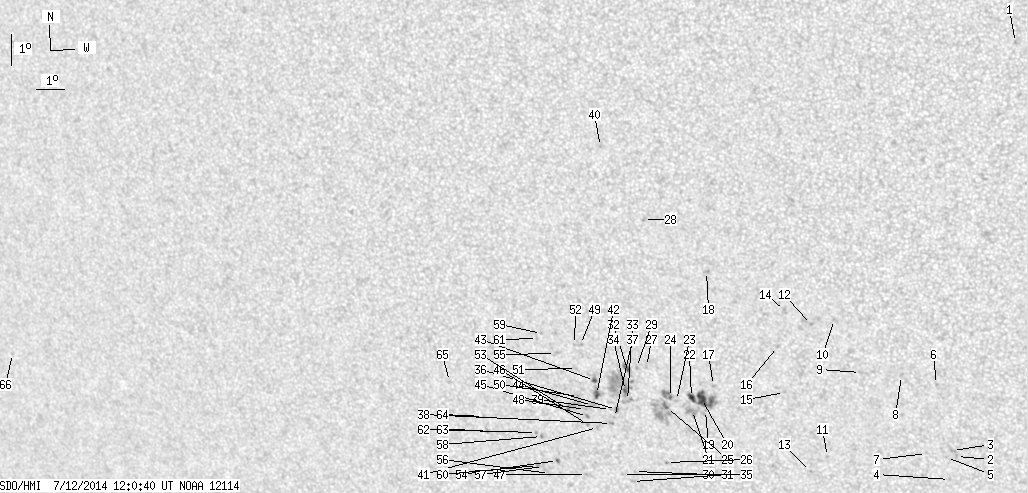

SDO HMI 2014-07-12 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.33 | 224.07 | 11.84 | 131.08 | -20.09 | 147.36 | -21.19 | 140.32 | 0.5312 | 10.6 | 58.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.50 | 160.17 | -8.38 | 146.37 | 0.2613 | 818.0 | 603.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.93 | 157.63 | -10.92 | 158.08 | 0.4729 | 752.0 | 629.7 | |
| 0.00 | 2.72 | 0.00 | 1.53 | -21.72 | 157.51 | -11.04 | 157.69 | 0.4707 | 698.0 | 570.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.71 | 157.33 | -11.22 | 158.21 | 0.4857 | 696.0 | 572.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.96 | 157.29 | -11.26 | 157.51 | 0.4754 | 686.0 | 550.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.51 | 157.15 | -11.41 | 154.94 | 0.4418 | 842.0 | 670.5 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -21.84 | 156.63 | -11.92 | 156.22 | 0.4776 | 694.0 | 430.8 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -19.23 | 156.01 | -12.54 | 152.50 | 0.4458 | 670.0 | 555.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -19.15 | 154.66 | -13.89 | 149.96 | 0.4549 | 766.0 | 626.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -17.42 | 153.95 | -14.61 | 146.53 | 0.4381 | 807.0 | 525.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.99 | 153.27 | -15.29 | 150.77 | 0.5026 | 596.0 | 497.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.60 | 153.17 | -15.38 | 145.40 | 0.4472 | 910.0 | 738.6 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.52 | 152.62 | -15.93 | 150.32 | 0.5140 | 636.0 | 429.1 | |
| 0.00 | 3.45 | 0.00 | 1.91 | -17.15 | 152.31 | -16.24 | 143.35 | 0.4495 | 360.0 | 387.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -19.87 | 152.04 | -16.51 | 146.43 | 0.4853 | 649.0 | 450.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.34 | 151.97 | -16.59 | 144.39 | 0.4672 | 745.0 | 645.1 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -19.68 | 149.65 | -18.91 | 142.60 | 0.5043 | 657.0 | 552.2 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -15.94 | 149.83 | -18.72 | 137.62 | 0.4599 | 831.0 | 695.1 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.53 | 149.26 | -19.29 | 143.12 | 0.5175 | 465.0 | 362.4 | |
| 8.72 | 26.61 | 5.03 | 15.35 | -20.13 | 149.18 | -19.37 | 142.50 | 0.5137 | 947.5 | 750.3 | |
| 0.00 | 10.72 | 0.00 | 6.22 | -20.54 | 148.81 | -19.74 | 142.51 | 0.5217 | -94.0 | 28.8 | |
| 3.00 | -20.00 | 1.73 | -20.00 | -20.10 | 148.84 | -19.72 | 142.00 | 0.5165 | 783.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -20.22 | 148.30 | -20.25 | 141.41 | 0.5227 | 477.0 | 401.1 | |
| 0.45 | 7.81 | 0.26 | 4.54 | -20.12 | 148.11 | -20.44 | 141.03 | 0.5235 | 847.0 | 724.8 | |
| 0.82 | 25.43 | 0.48 | 14.86 | -20.46 | 147.92 | -20.63 | 141.21 | 0.5290 | 668.1 | 83.5 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.32 | 147.64 | -20.91 | 143.12 | 0.5522 | 507.0 | 441.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -19.11 | 147.42 | -21.14 | 138.78 | 0.5191 | 625.0 | 580.3 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -14.31 | 147.87 | -20.68 | 132.23 | 0.4640 | 708.0 | 515.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -19.15 | 147.06 | -21.49 | 138.38 | 0.5230 | 758.0 | 527.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -22.66 | 146.45 | -22.10 | 142.02 | 0.5664 | -783.0 | -687.7 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -23.01 | 146.32 | -22.23 | 142.27 | 0.5713 | -728.0 | -556.3 | |
| 1.36 | 6.54 | 0.79 | 3.81 | -19.22 | 146.74 | -21.81 | 138.06 | 0.5270 | 805.3 | 609.6 | |
| 0.00 | 4.90 | 0.00 | 2.88 | -20.26 | 146.59 | -21.96 | 139.24 | 0.5394 | -462.0 | -340.8 | |
| 1.00 | 44.05 | 0.59 | 25.81 | -19.93 | 146.57 | -21.98 | 138.78 | 0.5361 | 709.0 | 201.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -22.78 | 146.00 | -22.55 | 141.62 | 0.5716 | -792.0 | -616.7 | |
| 0.54 | 2.27 | 0.32 | 1.34 | -20.57 | 146.15 | -22.40 | 139.10 | 0.5469 | -710.2 | -496.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -20.85 | 146.04 | -22.51 | 139.30 | 0.5508 | -571.0 | -506.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -21.05 | 145.90 | -22.65 | 139.39 | 0.5543 | -820.0 | -684.1 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -20.58 | 145.94 | -22.61 | 138.84 | 0.5490 | -651.0 | -529.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.01 | 146.64 | -21.91 | 126.67 | 0.4569 | 142.0 | 183.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -21.20 | 145.38 | -23.17 | 138.96 | 0.5608 | -837.0 | -638.1 | |
| 2.27 | 6.27 | 1.34 | 3.70 | -20.09 | 145.53 | -23.03 | 137.70 | 0.5480 | -787.9 | -590.5 | |
| 1.18 | 3.72 | 0.70 | 2.19 | -19.62 | 145.53 | -23.02 | 137.09 | 0.5432 | -893.3 | -721.1 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -20.46 | 145.32 | -23.23 | 137.95 | 0.5538 | -698.0 | -538.7 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -20.84 | 145.08 | -23.47 | 138.15 | 0.5599 | -925.0 | -752.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -21.11 | 145.04 | -23.51 | 138.44 | 0.5631 | -677.0 | -565.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -22.81 | 144.70 | -23.85 | 140.14 | 0.5838 | -838.0 | -657.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -20.60 | 145.05 | -23.50 | 137.81 | 0.5579 | -810.0 | -710.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -18.44 | 145.21 | -23.34 | 135.10 | 0.5345 | -845.0 | -708.0 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -20.17 | 144.87 | -23.68 | 137.04 | 0.5553 | -823.0 | -688.2 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -19.24 | 144.95 | -23.60 | 135.89 | 0.5452 | -735.0 | -631.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -18.45 | 145.00 | -23.55 | 134.86 | 0.5368 | -688.0 | -598.1 | |
| 0.45 | 8.45 | 0.27 | 5.05 | -20.62 | 144.41 | -24.14 | 137.09 | 0.5644 | -777.2 | -649.0 | |
| 0.54 | 1.63 | 0.33 | 1.00 | -22.36 | 143.73 | -24.82 | 138.51 | 0.5882 | -855.2 | -755.3 | |
| 0.00 | 2.72 | 0.00 | 1.61 | -18.76 | 144.28 | -24.27 | 134.46 | 0.5474 | -674.0 | -581.7 | |
| 0.00 | 1.91 | 0.00 | 1.17 | -22.82 | 143.35 | -25.20 | 138.64 | 0.5962 | -231.0 | -347.2 | |
| 0.00 | 2.82 | 0.00 | 1.73 | -22.59 | 143.18 | -25.38 | 138.17 | 0.5955 | -694.0 | -525.6 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -21.56 | 143.30 | -25.25 | 137.05 | 0.5844 | -843.0 | -726.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -18.12 | 143.89 | -24.66 | 133.11 | 0.5454 | -759.0 | -616.1 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -22.56 | 142.96 | -25.59 | 137.91 | 0.5973 | -670.0 | -580.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -18.29 | 143.72 | -24.83 | 133.16 | 0.5487 | -667.0 | -581.7 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -21.43 | 143.15 | -25.41 | 136.72 | 0.5847 | -645.0 | -536.6 | |
| 0.00 | 1.73 | 0.00 | 1.07 | -21.42 | 141.36 | -27.20 | 134.83 | 0.6021 | -671.0 | -555.8 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -20.96 | 141.30 | -27.25 | 134.18 | 0.5984 | -668.0 | -578.0 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -19.82 | 140.28 | -28.28 | 131.68 | 0.5989 | -371.0 | -304.7 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -19.67 | 122.43 | -46.12 | 119.37 | 0.7811 | -552.0 | -426.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
