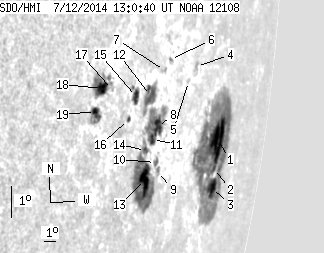

SDO HMI 2014-07-12 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.85 | 550.76 | 210.19 | 990.63 | -7.30 | 241.44 | 73.44 | 261.21 | 0.9610 | 47.3 | 52.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.87 | 297.49 | 76.36 | 640.45 | -7.27 | 244.18 | 76.18 | 261.56 | 0.9748 | 433.4 | 172.3 | |
| 1.63 | -1.00 | 3.61 | -1.00 | -8.17 | 244.29 | 76.29 | 260.64 | 0.9756 | 506.1 | 999999 | |
| 11.90 | -1.00 | 26.54 | -1.00 | -8.79 | 244.28 | 76.28 | 260.01 | 0.9758 | 373.7 | 999999 | |
| 0.00 | 4.36 | 0.00 | 7.49 | -4.78 | 240.78 | 72.78 | 263.77 | 0.9587 | 226.0 | 216.6 | |
| 0.00 | 1.36 | 0.00 | 2.25 | -5.19 | 240.07 | 72.07 | 263.26 | 0.9554 | 398.0 | 301.1 | |
| 0.45 | 1.73 | 0.68 | 2.58 | -4.38 | 238.14 | 70.14 | 263.90 | 0.9445 | -224.4 | -228.5 | |
| 0.00 | 2.82 | 0.00 | 4.10 | -4.69 | 237.67 | 69.67 | 263.53 | 0.9420 | -421.0 | -285.0 | |
| 11.17 | 50.40 | 16.35 | 72.83 | -6.40 | 237.49 | 69.49 | 261.69 | 0.9421 | -556.1 | -276.8 | |
| 0.00 | 3.72 | 0.00 | 5.62 | -7.83 | 237.98 | 69.98 | 260.25 | 0.9458 | 60.0 | 65.5 | |
| 1.63 | 4.18 | 2.43 | 6.21 | -7.53 | 237.69 | 69.68 | 260.53 | 0.9440 | -169.0 | -116.1 | |
| 4.54 | -8.00 | 6.54 | -8.00 | -6.78 | 237.17 | 69.17 | 261.25 | 0.9405 | -694.5 | 999999 | |
| 14.17 | 25.79 | 19.73 | 35.88 | -5.39 | 236.61 | 68.61 | 262.66 | 0.9362 | 404.4 | 274.8 | |
| 19.25 | 96.80 | 27.64 | 138.10 | -8.01 | 236.98 | 68.98 | 259.93 | 0.9403 | -712.0 | -275.5 | |
| 2.72 | -13.00 | 3.84 | -13.00 | -7.09 | 236.66 | 68.66 | 260.86 | 0.9377 | -699.3 | 999999 | |
| 6.45 | 11.08 | 8.52 | 14.61 | -5.34 | 235.44 | 67.44 | 262.57 | 0.9288 | 493.0 | 360.7 | |
| 1.18 | 2.27 | 1.54 | 2.96 | -6.02 | 234.96 | 66.96 | 261.78 | 0.9262 | 375.4 | 382.7 | |
| 0.00 | 1.63 | 0.00 | 2.00 | -5.00 | 233.50 | 65.50 | 262.70 | 0.9156 | 268.0 | 289.4 | |
| 10.44 | 32.60 | 12.37 | 38.48 | -4.92 | 232.75 | 64.75 | 262.69 | 0.9103 | -693.5 | -406.5 | |
| 3.45 | 14.53 | 4.04 | 17.07 | -5.60 | 232.38 | 64.38 | 261.89 | 0.9082 | -694.4 | -433.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
