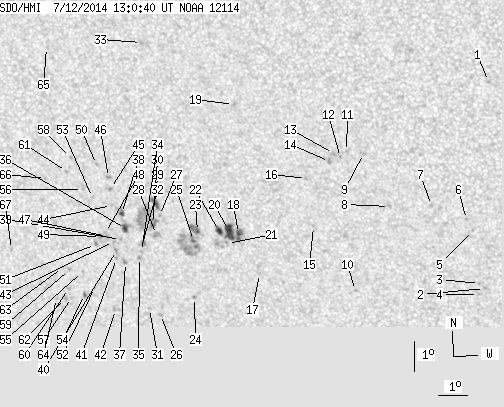

SDO HMI 2014-07-12 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 198.08 | 13.74 | 115.20 | -20.05 | 147.50 | -20.50 | 141.11 | 0.5241 | -4.5 | 23.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.87 | -15.04 | 158.17 | -9.83 | 153.18 | 0.3671 | 600.0 | 471.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.88 | 157.62 | -10.38 | 159.03 | 0.4692 | 759.0 | 667.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.72 | 157.46 | -10.54 | 158.61 | 0.4677 | 862.0 | 671.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.09 | 157.40 | -10.60 | 158.81 | 0.4734 | 737.0 | 585.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.93 | 157.36 | -10.64 | 156.83 | 0.4429 | 726.0 | 580.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.57 | 157.19 | -10.81 | 156.14 | 0.4388 | 879.0 | 744.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.12 | 156.07 | -11.93 | 153.52 | 0.4399 | 759.0 | 611.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -19.17 | 154.67 | -13.33 | 150.99 | 0.4508 | 782.0 | 577.1 | |
| 0.00 | 2.72 | 0.00 | 1.50 | -17.44 | 153.96 | -14.04 | 147.58 | 0.4336 | 768.0 | 661.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -22.02 | 153.26 | -14.74 | 151.66 | 0.4989 | 680.0 | 487.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -17.38 | 153.40 | -14.60 | 146.50 | 0.4376 | 950.0 | 723.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -17.58 | 153.19 | -14.81 | 146.38 | 0.4420 | 906.0 | 747.1 | |
| 0.00 | 2.72 | 0.00 | 1.50 | -17.46 | 152.97 | -15.04 | 145.82 | 0.4423 | 835.0 | 671.3 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -17.72 | 152.81 | -15.19 | 145.90 | 0.4471 | 727.0 | 650.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.89 | 152.07 | -15.93 | 147.37 | 0.4808 | 677.0 | 543.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.30 | 151.99 | -16.01 | 145.27 | 0.4615 | 794.0 | 681.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -21.50 | 150.04 | -17.96 | 146.18 | 0.5176 | 574.0 | 491.2 | |
| 1.63 | 18.62 | 0.94 | 10.69 | -20.17 | 149.48 | -18.52 | 143.78 | 0.5065 | 989.2 | 754.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.92 | 149.78 | -18.22 | 138.38 | 0.4545 | 755.0 | 706.7 | |
| 8.99 | -18.00 | 5.17 | -18.00 | -20.11 | 149.18 | -18.82 | 143.27 | 0.5085 | 926.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.52 | 149.06 | -18.94 | 143.60 | 0.5143 | 471.0 | 435.2 | |
| 3.09 | 4.36 | 1.78 | 2.51 | -20.12 | 148.84 | -19.16 | 142.79 | 0.5117 | 776.5 | 605.6 | |
| 1.00 | 6.63 | 0.58 | 3.84 | -20.14 | 148.08 | -19.92 | 141.76 | 0.5189 | 872.6 | 724.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -22.37 | 147.65 | -20.35 | 143.90 | 0.5480 | 614.0 | 452.8 | |
| 0.64 | 29.60 | 0.37 | 17.23 | -20.44 | 147.90 | -20.10 | 141.90 | 0.5240 | 629.7 | 93.3 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -22.99 | 146.35 | -21.65 | 142.96 | 0.5661 | -666.0 | -595.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.64 | 146.83 | -21.17 | 139.44 | 0.5251 | 867.0 | 702.4 | |
| 0.00 | 4.36 | 0.00 | 2.55 | -20.28 | 146.64 | -21.37 | 140.02 | 0.5339 | -207.0 | -181.4 | |
| 2.91 | 5.90 | 1.68 | 3.42 | -19.24 | 146.75 | -21.25 | 138.80 | 0.5217 | 787.8 | 626.2 | |
| 1.09 | 34.14 | 0.64 | 19.93 | -19.94 | 146.54 | -21.46 | 139.47 | 0.5312 | 697.3 | 178.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.79 | 145.99 | -22.01 | 142.29 | 0.5671 | -733.0 | -585.0 | |
| 0.00 | 3.27 | 0.00 | 1.92 | -20.59 | 146.10 | -21.90 | 139.74 | 0.5424 | -780.0 | -591.4 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -13.99 | 146.89 | -21.11 | 131.13 | 0.4660 | 728.0 | 653.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -20.86 | 146.02 | -21.98 | 139.98 | 0.5460 | -595.0 | -428.2 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -21.07 | 145.92 | -22.08 | 140.11 | 0.5492 | -846.0 | -661.0 | |
| 2.27 | 14.35 | 1.34 | 8.43 | -20.10 | 145.58 | -22.43 | 138.46 | 0.5423 | -746.0 | -462.2 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -21.25 | 145.39 | -22.61 | 139.70 | 0.5560 | -689.0 | -577.1 | |
| 1.54 | -36.00 | 0.91 | -36.00 | -19.61 | 145.51 | -22.49 | 137.72 | 0.5377 | -835.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.48 | 145.34 | -22.66 | 138.65 | 0.5485 | -733.0 | -580.2 | |
| 0.00 | 2.09 | 0.00 | 1.24 | -20.85 | 145.14 | -22.86 | 138.89 | 0.5543 | -901.0 | -695.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -21.12 | 145.10 | -22.91 | 139.18 | 0.5575 | -710.0 | -582.5 | |
| 0.00 | 3.63 | 0.00 | 2.20 | -22.86 | 144.76 | -23.24 | 140.90 | 0.5788 | -730.0 | -552.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -20.55 | 145.08 | -22.92 | 138.44 | 0.5517 | -849.0 | -789.2 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -19.35 | 145.20 | -22.80 | 136.99 | 0.5382 | -660.0 | -470.1 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -18.78 | 145.25 | -22.75 | 136.29 | 0.5320 | -695.0 | -625.2 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -18.42 | 145.23 | -22.77 | 135.76 | 0.5285 | -966.0 | -738.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.39 | 144.90 | -23.11 | 138.00 | 0.5519 | -793.0 | -673.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.26 | 144.85 | -23.16 | 137.77 | 0.5510 | -866.0 | -709.5 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -20.40 | 144.65 | -23.35 | 137.72 | 0.5544 | -784.0 | -700.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -18.00 | 144.87 | -23.13 | 134.74 | 0.5280 | -863.0 | -709.0 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -20.67 | 144.42 | -23.58 | 137.81 | 0.5593 | -869.0 | -683.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -22.13 | 144.13 | -23.87 | 139.30 | 0.5769 | -639.0 | -568.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -19.10 | 144.57 | -23.43 | 135.90 | 0.5421 | -734.0 | -649.0 | |
| 0.54 | 2.09 | 0.33 | 1.27 | -22.38 | 143.73 | -24.27 | 139.14 | 0.5832 | -874.2 | -694.4 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -21.60 | 143.80 | -24.20 | 138.26 | 0.5747 | -628.0 | -496.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -18.85 | 144.25 | -23.75 | 135.18 | 0.5428 | -709.0 | -583.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -22.50 | 143.23 | -24.77 | 138.73 | 0.5890 | -723.0 | -649.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -17.80 | 143.99 | -24.01 | 133.41 | 0.5354 | -692.0 | -544.1 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -21.54 | 143.34 | -24.66 | 137.67 | 0.5785 | -874.0 | -663.4 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -22.19 | 143.18 | -24.82 | 138.30 | 0.5865 | -675.0 | -589.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -18.27 | 143.78 | -24.22 | 133.83 | 0.5421 | -696.0 | -610.7 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -22.54 | 143.01 | -25.00 | 138.53 | 0.5915 | -729.0 | -626.4 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -21.48 | 143.10 | -24.90 | 137.33 | 0.5803 | -715.0 | -568.4 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -22.55 | 142.68 | -25.33 | 138.18 | 0.5947 | -627.0 | -509.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -14.24 | 143.62 | -24.38 | 127.58 | 0.5069 | 584.0 | 457.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -18.52 | 143.00 | -25.00 | 133.30 | 0.5528 | -617.0 | -507.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -20.93 | 141.35 | -26.65 | 134.76 | 0.5922 | -686.0 | -589.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
