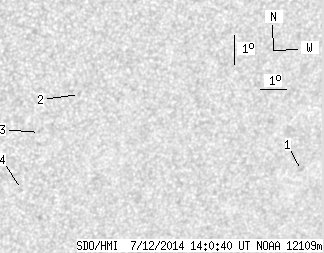

SDO HMI 2014-07-12 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.63 | 0.00 | 2.91 | -20.79 | 196.48 | 29.03 | 227.47 | 0.6149 | -324.2 | -252.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.69 | -21.90 | 204.11 | 36.66 | 232.52 | 0.7004 | 632.0 | 565.3 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -18.99 | 194.88 | 27.43 | 228.60 | 0.5829 | -669.0 | -458.3 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -20.21 | 193.65 | 26.20 | 225.71 | 0.5810 | -618.0 | -548.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -22.12 | 193.35 | 25.90 | 222.96 | 0.5960 | -642.0 | -552.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
