SDO HMI 2014-07-12 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.75 | 163.27 | 28.32 | 81.54 | 7.84 | 163.77 | -3.68 | 221.65 | 0.1096 | -405.5 | -334.4 | |
|
previous
or next observation for the same group /

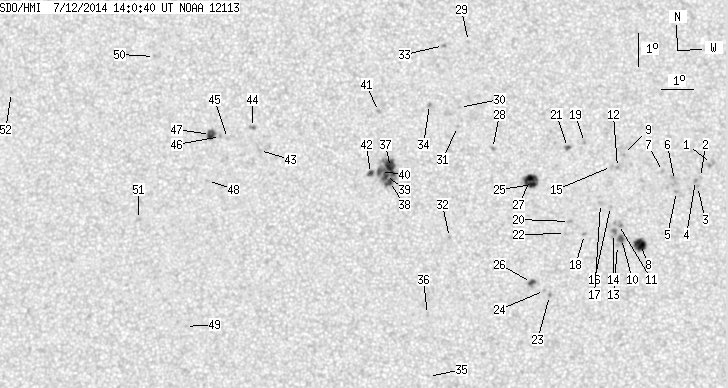

back to the solar disc SDO HMI 2014-07-12 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.27 | 0.00 | 2.12 | 8.54 | 170.83 | 3.38 | 323.28 | 0.0980 | -730.0 | -723.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.11 | 170.49 | 3.04 | 323.44 | 0.0885 | -749.0 | -620.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.84 | 170.39 | 2.94 | 322.37 | 0.0837 | -1027.0 | -825.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.02 | 170.33 | 2.88 | 324.24 | 0.0857 | -1078.0 | -955.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.69 | 169.75 | 2.30 | 327.92 | 0.0751 | -1024.0 | -912.8 | |
| 0.00 | 6.17 | 0.00 | 3.07 | 8.03 | 169.69 | 2.24 | 330.81 | 0.0796 | -850.0 | -790.8 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 8.30 | 169.32 | 1.87 | 336.43 | 0.0811 | -967.0 | -685.6 | |
| 9.81 | 13.08 | 4.86 | 6.48 | 6.08 | 168.63 | 1.18 | 329.73 | 0.0409 | -1187.8 | -734.4 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.83 | 168.12 | 0.67 | 352.07 | 0.0842 | -829.0 | -731.5 | |
| 2.45 | 4.27 | 1.22 | 2.12 | 6.26 | 168.05 | 0.60 | 344.78 | 0.0400 | -1244.6 | -976.3 | |
| 0.00 | 5.08 | 0.00 | 2.52 | 6.69 | 167.96 | 0.51 | 349.06 | 0.0469 | -878.0 | -754.6 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 8.43 | 167.93 | 0.48 | 353.73 | 0.0770 | -963.0 | -781.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.05 | 167.93 | 0.48 | 346.52 | 0.0358 | -839.0 | -761.9 | |
| 0.00 | 4.27 | 0.00 | 2.12 | 6.41 | 167.81 | 0.36 | 351.42 | 0.0417 | -821.0 | -941.6 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 8.46 | 167.75 | 0.30 | 356.14 | 0.0772 | -679.0 | -543.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.24 | 167.72 | 0.27 | 355.23 | 0.0559 | -902.0 | -674.1 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 7.33 | 167.41 | -0.04 | 0.70 | 0.0573 | -846.0 | -751.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.38 | 166.92 | -0.53 | 12.81 | 0.0418 | -973.0 | -790.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 9.19 | 166.92 | -0.53 | 5.85 | 0.0903 | 934.0 | 759.8 | |
| 0.00 | 2.18 | 0.00 | 1.08 | 6.78 | 166.46 | -0.99 | 19.90 | 0.0507 | -1185.0 | -919.9 | |
| 1.00 | 2.63 | 0.50 | 1.31 | 9.04 | 166.39 | -1.06 | 11.84 | 0.0891 | 1092.5 | 762.6 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.42 | 166.33 | -1.11 | 25.18 | 0.0456 | -891.0 | -681.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 4.53 | 165.85 | -1.60 | 73.70 | 0.0292 | 1022.0 | 834.9 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 4.68 | 165.69 | -1.75 | 70.50 | 0.0325 | 891.0 | 576.7 | |
| 3.81 | 16.89 | 1.89 | 8.39 | 7.91 | 165.32 | -2.13 | 28.74 | 0.0770 | -1263.8 | -753.8 | |
| 2.00 | 4.54 | 0.99 | 2.25 | 4.92 | 165.30 | -2.15 | 68.07 | 0.0405 | 1161.9 | 927.7 | |
| 8.72 | -25.00 | 4.33 | -25.00 | 8.06 | 165.26 | -2.19 | 28.49 | 0.0798 | -1124.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 9.01 | 164.08 | -3.37 | 33.93 | 0.1045 | -925.0 | -734.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.29 | 163.30 | -4.15 | 26.29 | 0.1605 | 749.0 | 565.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.26 | 163.04 | -4.41 | 34.95 | 0.1326 | 871.0 | 637.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.68 | 162.99 | -4.46 | 38.02 | 0.1250 | 868.0 | 615.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.29 | 162.77 | -4.67 | 64.26 | 0.0903 | -925.0 | -681.1 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 12.16 | 162.52 | -4.93 | 30.78 | 0.1650 | 911.0 | 691.8 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 10.35 | 162.11 | -5.34 | 39.83 | 0.1436 | 1048.0 | 863.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 2.05 | 162.15 | -5.30 | 110.69 | 0.0991 | -863.0 | -631.9 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 3.94 | 162.11 | -5.33 | 91.16 | 0.0932 | -777.0 | -711.6 | |
| 10.44 | 38.14 | 5.22 | 19.07 | 8.41 | 160.93 | -6.52 | 55.81 | 0.1364 | -1147.9 | -768.9 | |
| 3.63 | -37.00 | 1.82 | -37.00 | 7.98 | 160.90 | -6.54 | 58.61 | 0.1328 | -1121.8 | 999999 | |
| 4.63 | -37.00 | 2.32 | -37.00 | 8.17 | 160.78 | -6.67 | 57.93 | 0.1363 | -1177.2 | 999999 | |
| 3.45 | -37.00 | 1.73 | -37.00 | 8.29 | 160.62 | -6.83 | 57.76 | 0.1397 | -882.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 10.12 | 160.53 | -6.92 | 48.20 | 0.1599 | -973.0 | -767.1 | |
| 1.91 | 3.45 | 0.95 | 1.73 | 8.22 | 160.31 | -7.14 | 59.26 | 0.1437 | -875.4 | -708.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 8.89 | 156.84 | -10.61 | 64.85 | 0.2019 | 898.0 | 741.5 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 9.59 | 156.59 | -10.85 | 62.26 | 0.2107 | 1181.0 | 846.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.25 | 155.82 | -11.63 | 65.22 | 0.2201 | 873.0 | 616.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.31 | 155.60 | -11.85 | 65.38 | 0.2240 | 817.0 | 594.3 | |
| 4.90 | 6.99 | 2.49 | 3.56 | 9.36 | 155.28 | -12.17 | 65.69 | 0.2293 | 1058.4 | 747.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 7.96 | 155.23 | -12.22 | 71.65 | 0.2219 | 661.0 | 528.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 3.50 | 154.63 | -12.82 | 92.09 | 0.2226 | 776.0 | 558.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.73 | 153.40 | -14.05 | 60.32 | 0.2749 | 840.0 | 716.6 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 6.73 | 153.09 | -14.36 | 78.79 | 0.2523 | 728.0 | 617.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 10.54 | 148.83 | -18.62 | 69.64 | 0.3362 | 766.0 | 609.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
