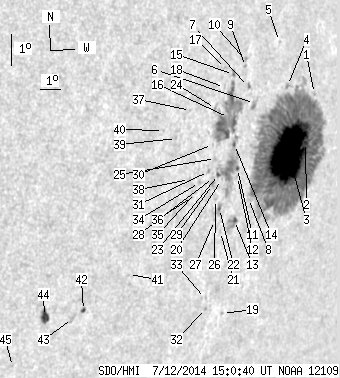

SDO HMI 2014-07-12 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.54 | 872.13 | 122.27 | 763.05 | -7.94 | 221.24 | 54.34 | 257.45 | 0.8262 | 705.6 | 245.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.16 | -6.17 | 223.18 | 56.29 | 259.97 | 0.8419 | -141.0 | -132.3 | |
| 0.27 | 655.04 | 0.25 | 585.00 | -7.67 | 222.95 | 56.06 | 258.16 | 0.8421 | -292.3 | 262.3 | |
| 124.56 | -2.00 | 111.36 | -2.00 | -7.96 | 222.08 | 55.18 | 257.63 | 0.8345 | 1110.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 2.07 | -5.83 | 221.66 | 54.76 | 260.09 | 0.8270 | 462.0 | 334.0 | |
| 0.00 | 1.18 | 0.00 | 1.01 | -4.44 | 221.06 | 54.16 | 261.65 | 0.8191 | -314.0 | -239.8 | |
| 0.00 | 5.54 | 0.00 | 4.67 | -6.29 | 219.99 | 53.10 | 259.20 | 0.8114 | -138.0 | -57.8 | |
| 0.54 | 1.82 | 0.45 | 1.51 | -5.74 | 219.61 | 52.72 | 259.80 | 0.8066 | -219.2 | -179.7 | |
| 0.00 | 2.18 | 0.00 | 1.87 | -9.25 | 220.22 | 53.33 | 255.67 | 0.8192 | 297.0 | 343.4 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -5.11 | 219.38 | 52.49 | 260.53 | 0.8032 | -560.0 | -468.7 | |
| 0.00 | 1.45 | 0.00 | 1.20 | -4.89 | 219.36 | 52.46 | 260.79 | 0.8026 | -306.0 | -337.7 | |
| 1.00 | 54.11 | 0.84 | 45.03 | -8.27 | 219.46 | 52.56 | 256.67 | 0.8097 | 807.9 | 383.6 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -8.53 | 219.51 | 52.61 | 256.38 | 0.8107 | 475.0 | 407.4 | |
| 1.45 | 12.35 | 1.24 | 10.47 | -9.91 | 219.65 | 52.75 | 254.74 | 0.8150 | 774.8 | 475.8 | |
| 0.82 | -11.00 | 0.68 | -11.00 | -7.51 | 219.17 | 52.27 | 257.53 | 0.8053 | 684.9 | 999999 | |
| 0.54 | 2.81 | 0.45 | 2.30 | -5.33 | 218.80 | 51.91 | 260.15 | 0.7976 | -323.7 | -251.0 | |
| 0.00 | 79.99 | 0.00 | 65.58 | -6.65 | 218.73 | 51.83 | 258.49 | 0.7992 | 474.0 | 308.0 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -5.12 | 218.38 | 51.49 | 260.32 | 0.7928 | -432.0 | -424.3 | |
| 0.00 | 0.82 | 0.00 | 0.66 | -5.70 | 218.40 | 51.51 | 259.59 | 0.7940 | -508.0 | -503.2 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -12.85 | 219.81 | 52.91 | 251.29 | 0.8233 | -311.0 | -238.8 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -8.57 | 218.71 | 51.81 | 256.12 | 0.8028 | -220.0 | -174.7 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -10.22 | 219.00 | 52.11 | 254.20 | 0.8093 | -6.0 | -8.6 | |
| 0.82 | 7.17 | 0.68 | 5.96 | -9.48 | 218.79 | 51.89 | 255.03 | 0.8056 | 23.9 | -36.9 | |
| 0.91 | -11.00 | 0.75 | -11.00 | -8.41 | 218.52 | 51.63 | 256.28 | 0.8006 | -387.1 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.56 | -6.33 | 218.04 | 51.15 | 258.73 | 0.7914 | -659.0 | -458.3 | |
| 0.00 | 1.45 | 0.00 | 1.19 | -7.90 | 218.28 | 51.39 | 256.85 | 0.7970 | 437.0 | 376.9 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -9.19 | 218.53 | 51.63 | 255.33 | 0.8023 | -15.0 | -31.7 | |
| 0.00 | 1.27 | 0.00 | 1.06 | -9.85 | 218.62 | 51.72 | 254.54 | 0.8047 | -390.0 | -306.4 | |
| 0.00 | 1.72 | 0.00 | 1.41 | -8.49 | 218.29 | 51.40 | 256.12 | 0.7984 | -543.0 | -361.3 | |
| 0.00 | 2.09 | 0.00 | 1.71 | -8.70 | 218.28 | 51.39 | 255.85 | 0.7987 | -495.0 | -422.2 | |
| 0.00 | 0.36 | 0.00 | 0.29 | -7.45 | 218.06 | 51.16 | 257.35 | 0.7938 | -60.0 | -105.8 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -8.28 | 218.01 | 51.11 | 256.30 | 0.7950 | -380.0 | -349.9 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -12.63 | 218.87 | 51.97 | 251.26 | 0.8138 | -647.0 | -577.6 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -12.31 | 218.78 | 51.88 | 251.62 | 0.8121 | -540.0 | -432.5 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -8.60 | 217.62 | 50.73 | 255.81 | 0.7917 | -522.0 | -442.2 | |
| 0.00 | 1.09 | 0.00 | 0.88 | -8.91 | 217.48 | 50.59 | 255.39 | 0.7910 | -482.0 | -406.2 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -9.03 | 217.36 | 50.46 | 255.21 | 0.7900 | -663.0 | -515.6 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -6.33 | 216.83 | 49.93 | 258.47 | 0.7785 | -455.0 | -410.0 | |
| 0.00 | 1.36 | 0.00 | 1.09 | -8.48 | 217.11 | 50.22 | 255.82 | 0.7862 | -636.0 | -578.5 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -7.16 | 216.28 | 49.38 | 257.27 | 0.7744 | -513.0 | -423.0 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -6.88 | 215.62 | 48.73 | 257.47 | 0.7666 | -593.0 | -507.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -11.33 | 214.79 | 47.89 | 251.56 | 0.7691 | -392.0 | -382.5 | |
| 1.18 | 2.45 | 0.88 | 1.84 | -12.37 | 212.96 | 46.06 | 249.60 | 0.7528 | 596.3 | 525.9 | |
| 0.00 | 3.99 | 0.00 | 2.97 | -12.60 | 212.52 | 45.62 | 249.13 | 0.7488 | 254.0 | 244.4 | |
| 6.45 | 9.44 | 4.69 | 6.87 | -12.46 | 211.25 | 44.35 | 248.80 | 0.7344 | -741.9 | -474.8 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -14.00 | 210.20 | 43.30 | 246.36 | 0.7288 | -492.0 | -434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
