SDO HMI 2014-07-12 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.92 | 161.87 | 28.38 | 80.86 | 7.95 | 163.71 | -3.19 | 206.89 | 0.1094 | -399.0 | -274.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

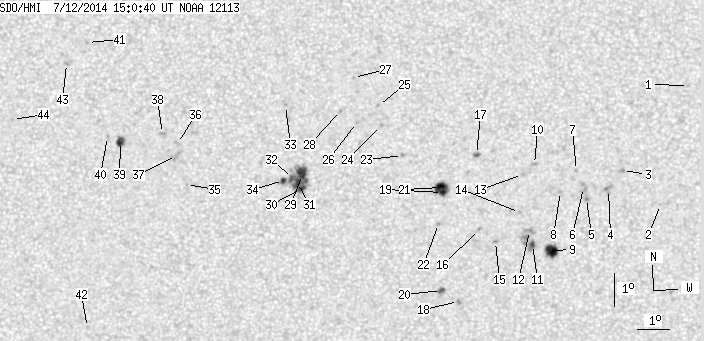

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.13 | 172.96 | 6.06 | 319.96 | 0.1619 | -795.0 | -628.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 7.49 | 172.03 | 5.13 | 304.12 | 0.1076 | -803.0 | -591.2 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 8.54 | 170.87 | 3.97 | 318.78 | 0.1044 | -991.0 | -824.7 | |
| 0.00 | 4.54 | 0.00 | 2.26 | 7.96 | 170.43 | 3.53 | 318.13 | 0.0919 | -855.0 | -860.0 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 7.69 | 169.75 | 2.85 | 322.08 | 0.0807 | -1083.0 | -906.2 | |
| 0.00 | 5.99 | 0.00 | 2.98 | 8.03 | 169.66 | 2.76 | 325.38 | 0.0845 | -461.0 | -820.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.55 | 169.45 | 2.55 | 330.62 | 0.0902 | -808.0 | -710.1 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 7.91 | 168.95 | 2.06 | 332.09 | 0.0763 | -914.0 | -695.9 | |
| 10.62 | 13.89 | 5.27 | 6.89 | 6.11 | 168.67 | 1.77 | 319.31 | 0.0473 | -1165.7 | -666.1 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 8.73 | 168.16 | 1.26 | 345.06 | 0.0847 | -815.0 | -647.5 | |
| 1.82 | 11.44 | 0.90 | 5.67 | 6.29 | 168.08 | 1.19 | 332.09 | 0.0442 | -1248.2 | -913.0 | |
| 0.00 | 4.90 | 0.00 | 2.43 | 6.72 | 167.99 | 1.10 | 337.69 | 0.0503 | -879.0 | -731.1 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 8.43 | 167.78 | 0.89 | 348.61 | 0.0780 | -721.0 | -668.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 7.27 | 167.69 | 0.79 | 346.22 | 0.0579 | -825.0 | -739.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.39 | 166.95 | 0.05 | 358.67 | 0.0407 | -1004.0 | -811.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.75 | 166.46 | -0.44 | 9.14 | 0.0478 | -1040.0 | -900.2 | |
| 0.73 | 2.54 | 0.36 | 1.26 | 9.04 | 166.37 | -0.53 | 5.98 | 0.0877 | 1121.9 | 806.3 | |
| 0.00 | 2.18 | 0.00 | 1.08 | 4.56 | 165.82 | -1.08 | 65.21 | 0.0208 | 1126.0 | 892.8 | |
| 3.72 | 14.71 | 1.85 | 7.31 | 7.88 | 165.32 | -1.57 | 22.21 | 0.0723 | -1238.6 | -828.1 | |
| 1.72 | 4.90 | 0.86 | 2.43 | 4.89 | 165.30 | -1.60 | 62.41 | 0.0315 | 1170.3 | 908.7 | |
| 8.26 | -19.00 | 4.10 | -19.00 | 8.03 | 165.26 | -1.64 | 22.19 | 0.0752 | -1142.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 6.94 | 165.20 | -1.69 | 30.34 | 0.0584 | -975.0 | -719.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.01 | 164.08 | -2.81 | 29.30 | 0.0994 | -969.0 | -770.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.93 | 163.43 | -3.47 | 30.22 | 0.1189 | 919.0 | 754.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 10.54 | 163.33 | -3.57 | 28.44 | 0.1290 | 789.0 | 730.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.02 | 162.65 | -4.24 | 35.05 | 0.1275 | 1000.0 | 792.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.40 | 162.54 | -4.36 | 30.22 | 0.1486 | 883.0 | 676.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.38 | 162.15 | -4.75 | 36.42 | 0.1377 | 975.0 | 790.9 | |
| 10.26 | 44.31 | 5.12 | 22.13 | 8.42 | 161.00 | -5.90 | 53.10 | 0.1276 | -1136.6 | -634.8 | |
| 3.81 | -29.00 | 1.90 | -29.00 | 7.99 | 160.97 | -5.92 | 56.02 | 0.1238 | -1139.3 | 999999 | |
| 6.63 | -29.00 | 3.31 | -29.00 | 8.17 | 160.85 | -6.05 | 55.36 | 0.1273 | -1185.9 | 999999 | |
| 2.72 | -29.00 | 1.36 | -29.00 | 8.29 | 160.69 | -6.20 | 55.26 | 0.1307 | -922.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.52 | 160.44 | -6.46 | 44.39 | 0.1588 | -689.0 | -658.5 | |
| 2.18 | -29.00 | 1.09 | -29.00 | 8.23 | 160.41 | -6.48 | 56.80 | 0.1341 | -860.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 8.08 | 157.40 | -9.49 | 66.49 | 0.1789 | 821.0 | 574.8 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 9.33 | 157.09 | -9.81 | 61.08 | 0.1929 | 816.0 | 620.5 | |
| 0.00 | 6.54 | 0.00 | 3.30 | 8.96 | 157.07 | -9.83 | 62.85 | 0.1903 | 919.0 | 668.4 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 9.63 | 156.61 | -10.29 | 60.85 | 0.2025 | 1126.0 | 908.1 | |
| 4.45 | 6.81 | 2.26 | 3.46 | 9.37 | 155.30 | -11.60 | 64.66 | 0.2205 | 1079.0 | 804.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.52 | 154.88 | -12.01 | 64.79 | 0.2279 | 786.0 | 546.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 12.39 | 154.13 | -12.77 | 55.81 | 0.2621 | 837.0 | 625.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 3.69 | 154.39 | -12.50 | 91.30 | 0.2171 | 794.0 | 457.9 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 11.74 | 153.49 | -13.41 | 59.18 | 0.2656 | 947.0 | 713.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 9.99 | 151.84 | -15.05 | 67.54 | 0.2780 | 772.0 | 578.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
