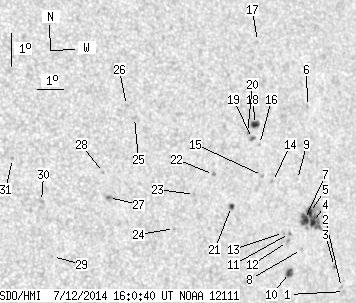

SDO HMI 2014-07-12 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.61 | 85.34 | 13.81 | 54.03 | 6.48 | 204.80 | 38.45 | 275.40 | 0.6226 | -190.3 | -207.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.66 | 3.66 | 207.64 | 41.30 | 270.91 | 0.6610 | -532.0 | -412.2 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 3.78 | 207.53 | 41.19 | 271.10 | 0.6595 | -674.0 | -545.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 4.44 | 207.28 | 40.94 | 272.08 | 0.6560 | -668.0 | -631.6 | |
| 3.18 | 37.40 | 2.06 | 24.19 | 5.82 | 206.50 | 40.16 | 274.21 | 0.6456 | -792.7 | -528.1 | |
| 3.27 | -4.00 | 2.11 | -4.00 | 6.13 | 206.41 | 40.07 | 274.69 | 0.6445 | -870.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 9.36 | 206.71 | 40.37 | 279.67 | 0.6505 | -716.0 | -612.7 | |
| 5.90 | -4.00 | 3.80 | -4.00 | 5.92 | 206.19 | 39.85 | 274.38 | 0.6415 | -995.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 5.02 | 206.00 | 39.66 | 272.96 | 0.6388 | -406.0 | -401.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 7.15 | 206.03 | 39.69 | 276.31 | 0.6398 | -589.0 | -448.3 | |
| 3.36 | 5.45 | 2.14 | 3.47 | 4.34 | 205.48 | 39.13 | 271.87 | 0.6319 | -854.8 | -638.9 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 5.52 | 205.56 | 39.22 | 273.76 | 0.6330 | -737.0 | -662.1 | |
| 0.00 | 1.82 | 0.00 | 1.16 | 5.28 | 205.46 | 39.12 | 273.38 | 0.6316 | -841.0 | -719.8 | |
| 0.00 | 1.91 | 0.00 | 1.21 | 5.57 | 205.33 | 38.99 | 273.83 | 0.6298 | -553.0 | -427.7 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 7.14 | 205.04 | 38.70 | 276.35 | 0.6264 | -791.0 | -643.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 7.34 | 204.66 | 38.32 | 276.70 | 0.6215 | -737.0 | -578.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 8.29 | 204.65 | 38.31 | 278.23 | 0.6220 | 487.0 | 401.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 11.44 | 205.01 | 38.67 | 283.19 | 0.6313 | -661.0 | -473.3 | |
| 3.54 | 5.54 | 2.23 | 3.49 | 8.90 | 204.57 | 38.23 | 279.23 | 0.6216 | 807.3 | 601.3 | |
| 0.82 | 2.18 | 0.51 | 1.37 | 8.48 | 204.40 | 38.06 | 278.57 | 0.6188 | 799.6 | 667.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 8.67 | 204.23 | 37.88 | 278.91 | 0.6167 | 717.0 | 605.1 | |
| 1.54 | 2.81 | 0.96 | 1.74 | 6.45 | 203.37 | 37.03 | 275.32 | 0.6032 | -793.6 | -629.3 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 7.45 | 202.77 | 36.43 | 277.05 | 0.5955 | 494.0 | 489.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 6.87 | 202.00 | 35.66 | 276.13 | 0.5842 | 762.0 | 521.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 5.87 | 201.16 | 34.82 | 274.44 | 0.5719 | 673.0 | 535.5 | |
| 0.00 | 2.18 | 0.00 | 1.30 | 9.31 | 199.99 | 33.65 | 280.68 | 0.5586 | 712.0 | 602.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 9.69 | 199.74 | 33.40 | 281.41 | 0.5556 | 481.0 | 500.5 | |
| 0.00 | 2.27 | 0.00 | 1.33 | 6.91 | 198.81 | 32.47 | 276.49 | 0.5384 | 960.0 | 736.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 7.68 | 198.69 | 32.35 | 277.93 | 0.5375 | 692.0 | 533.8 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 5.19 | 196.68 | 30.34 | 273.33 | 0.5059 | 627.0 | 535.0 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 6.88 | 196.39 | 30.05 | 276.71 | 0.5026 | 836.0 | 650.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 8.23 | 195.47 | 29.13 | 279.59 | 0.4906 | 905.0 | 720.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
