SDO HMI 2014-07-12 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.84 | 495.61 | 234.65 | 1030.61 | -7.27 | 241.37 | 75.58 | 261.48 | 0.9703 | 83.2 | 46.8 | |
|
previous
or next observation for the same group /

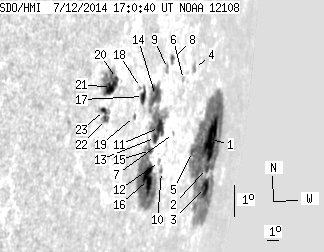

back to the solar disc SDO HMI 2014-07-12 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.31 | 260.33 | 86.72 | 666.91 | -7.29 | 244.06 | 78.27 | 261.75 | 0.9822 | 423.3 | 159.3 | |
| 3.45 | -1.00 | 9.00 | -1.00 | -8.19 | 244.03 | 78.24 | 260.84 | 0.9824 | 510.9 | 999999 | |
| 9.71 | -1.00 | 25.92 | -1.00 | -8.80 | 244.33 | 78.54 | 260.25 | 0.9836 | 348.3 | 999999 | |
| 0.00 | 4.45 | 0.00 | 8.75 | -4.87 | 240.79 | 75.00 | 263.89 | 0.9690 | 337.0 | 294.0 | |
| 2.09 | -1.00 | 4.44 | -1.00 | -7.49 | 241.64 | 75.86 | 261.29 | 0.9736 | 275.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 3.15 | -5.12 | 239.59 | 73.81 | 263.51 | 0.9638 | 348.0 | 340.2 | |
| 0.00 | 1.18 | 0.00 | 2.11 | -6.75 | 239.07 | 73.28 | 261.77 | 0.9622 | 117.0 | 123.5 | |
| 1.18 | 4.18 | 1.98 | 7.01 | -4.38 | 238.21 | 72.42 | 264.14 | 0.9568 | -181.1 | -86.6 | |
| 0.00 | 3.27 | 0.00 | 5.36 | -4.66 | 237.77 | 71.98 | 263.80 | 0.9547 | -493.0 | -364.7 | |
| 0.64 | 2.72 | 1.09 | 4.67 | -7.88 | 238.27 | 72.48 | 260.51 | 0.9590 | 139.4 | 91.7 | |
| 9.26 | 68.90 | 15.19 | 110.19 | -6.46 | 237.51 | 71.72 | 261.90 | 0.9544 | -532.8 | -130.4 | |
| 0.00 | 2.36 | 0.00 | 3.97 | -7.54 | 237.92 | 72.13 | 260.82 | 0.9571 | -198.0 | -139.3 | |
| 4.36 | -11.00 | 7.03 | -11.00 | -6.75 | 237.22 | 71.43 | 261.56 | 0.9530 | -617.6 | 999999 | |
| 14.89 | -11.00 | 23.29 | -11.00 | -5.42 | 236.80 | 71.01 | 262.90 | 0.9500 | 365.6 | 999999 | |
| 2.45 | 89.86 | 3.88 | 143.33 | -7.13 | 236.87 | 71.08 | 261.12 | 0.9514 | -637.9 | -269.1 | |
| 16.43 | -15.00 | 26.39 | -15.00 | -8.04 | 237.03 | 71.24 | 260.19 | 0.9528 | -655.1 | 999999 | |
| 5.54 | 8.35 | 8.19 | 12.34 | -5.38 | 235.67 | 69.88 | 262.82 | 0.9437 | 388.5 | 297.8 | |
| 0.00 | 1.63 | 0.00 | 2.38 | -5.08 | 235.33 | 69.54 | 263.10 | 0.9415 | 499.0 | 489.9 | |
| 0.64 | 2.09 | 0.92 | 3.01 | -5.95 | 235.02 | 69.24 | 262.14 | 0.9403 | 254.1 | 255.9 | |
| 1.18 | 32.13 | 1.56 | 41.43 | -4.66 | 233.21 | 67.42 | 263.30 | 0.9282 | -431.6 | -415.8 | |
| 10.08 | -20.00 | 13.09 | -20.00 | -4.91 | 232.86 | 67.07 | 262.98 | 0.9262 | -587.7 | 999999 | |
| 2.18 | 12.44 | 2.82 | 16.00 | -5.88 | 232.60 | 66.81 | 261.91 | 0.9252 | -475.5 | -319.2 | |
| 2.45 | -22.00 | 3.14 | -22.00 | -5.59 | 232.45 | 66.67 | 262.20 | 0.9240 | -624.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
