SDO HMI 2014-07-12 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.88 | 822.57 | 123.92 | 741.38 | -7.90 | 221.35 | 55.56 | 257.78 | 0.8377 | 776.6 | 259.1 | |
|
previous
or next observation for the same group /

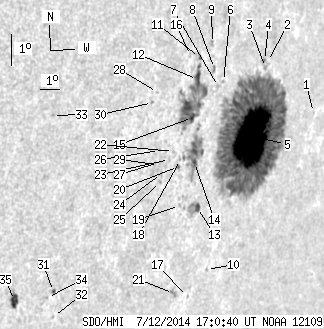

back to the solar disc SDO HMI 2014-07-12 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.28 | -7.40 | 225.57 | 59.78 | 259.17 | 0.8744 | 116.0 | 108.7 | |
| 0.00 | 0.45 | 0.00 | 0.42 | -5.64 | 222.54 | 56.75 | 260.67 | 0.8455 | -26.0 | -143.0 | |
| 0.00 | 1.91 | 0.00 | 1.75 | -5.82 | 222.45 | 56.66 | 260.44 | 0.8449 | 332.0 | 124.0 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -5.60 | 222.36 | 56.57 | 260.69 | 0.8438 | -313.0 | -229.1 | |
| 116.91 | 634.49 | 107.64 | 583.11 | -7.94 | 222.11 | 56.32 | 257.90 | 0.8450 | 1159.2 | 284.7 | |
| 0.00 | 0.91 | 0.00 | 0.79 | -6.12 | 220.20 | 54.42 | 259.67 | 0.8241 | -271.0 | -209.3 | |
| 0.00 | 1.72 | 0.00 | 1.49 | -6.26 | 219.96 | 54.18 | 259.46 | 0.8220 | -179.0 | -51.7 | |
| 0.00 | 2.09 | 0.00 | 1.79 | -5.68 | 219.67 | 53.88 | 260.09 | 0.8182 | -181.0 | -137.4 | |
| 0.00 | 2.45 | 0.00 | 2.08 | -4.90 | 219.47 | 53.68 | 261.00 | 0.8149 | -457.0 | -309.7 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -12.01 | 220.62 | 54.83 | 252.80 | 0.8391 | -298.0 | -310.5 | |
| 0.00 | 2.27 | 0.00 | 1.90 | -5.30 | 218.84 | 53.06 | 260.40 | 0.8093 | -343.0 | -340.6 | |
| 5.90 | 86.41 | 4.97 | 72.60 | -5.97 | 218.83 | 53.04 | 259.57 | 0.8103 | -180.0 | 268.8 | |
| 2.81 | 11.71 | 2.46 | 10.18 | -10.00 | 219.59 | 53.80 | 254.90 | 0.8253 | 737.0 | 413.2 | |
| 1.45 | 43.66 | 1.24 | 37.29 | -8.56 | 219.11 | 53.33 | 256.50 | 0.8178 | 367.4 | 360.1 | |
| 3.00 | -12.00 | 2.53 | -12.00 | -7.15 | 218.75 | 52.96 | 258.13 | 0.8115 | 899.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.20 | -5.21 | 218.37 | 52.59 | 260.42 | 0.8044 | -508.0 | -462.8 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -12.81 | 219.84 | 54.05 | 251.65 | 0.8338 | -265.0 | -251.3 | |
| 0.00 | 1.00 | 0.00 | 0.84 | -8.43 | 218.37 | 52.58 | 256.48 | 0.8102 | -432.0 | -382.0 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -9.88 | 218.62 | 52.84 | 254.80 | 0.8157 | -307.0 | -289.1 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -8.64 | 218.31 | 52.52 | 256.21 | 0.8100 | -385.0 | -399.4 | |
| 0.00 | 4.08 | 0.00 | 3.57 | -12.67 | 219.05 | 53.27 | 251.59 | 0.8262 | -660.0 | -452.6 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -8.16 | 217.96 | 52.17 | 256.72 | 0.8056 | -304.0 | -301.4 | |
| 0.00 | 1.27 | 0.00 | 1.05 | -8.39 | 217.80 | 52.02 | 256.39 | 0.8045 | -420.0 | -447.4 | |
| 0.00 | 2.18 | 0.00 | 1.80 | -8.81 | 217.48 | 51.70 | 255.80 | 0.8021 | -349.0 | -443.7 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -9.06 | 217.48 | 51.70 | 255.49 | 0.8027 | -586.0 | -483.8 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -8.08 | 217.25 | 51.46 | 256.63 | 0.7982 | -267.0 | -297.3 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -8.46 | 217.26 | 51.48 | 256.18 | 0.7991 | -554.0 | -443.3 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -6.26 | 216.86 | 51.08 | 258.80 | 0.7906 | -440.0 | -405.3 | |
| 0.00 | 1.54 | 0.00 | 1.26 | -8.51 | 217.13 | 51.34 | 256.07 | 0.7978 | -477.0 | -362.5 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -6.56 | 216.66 | 50.87 | 258.38 | 0.7890 | -311.0 | -276.6 | |
| 0.64 | 1.36 | 0.49 | 1.04 | -12.27 | 213.05 | 47.26 | 250.16 | 0.7653 | 659.0 | 600.4 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -13.07 | 213.25 | 47.46 | 249.22 | 0.7699 | 408.0 | 331.9 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -6.71 | 212.02 | 46.23 | 257.02 | 0.7383 | -548.0 | -470.3 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -12.44 | 212.82 | 47.03 | 249.85 | 0.7634 | 580.0 | 448.4 | |
| 6.17 | 8.99 | 4.59 | 6.68 | -12.46 | 211.32 | 45.54 | 249.27 | 0.7474 | -699.1 | -424.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
