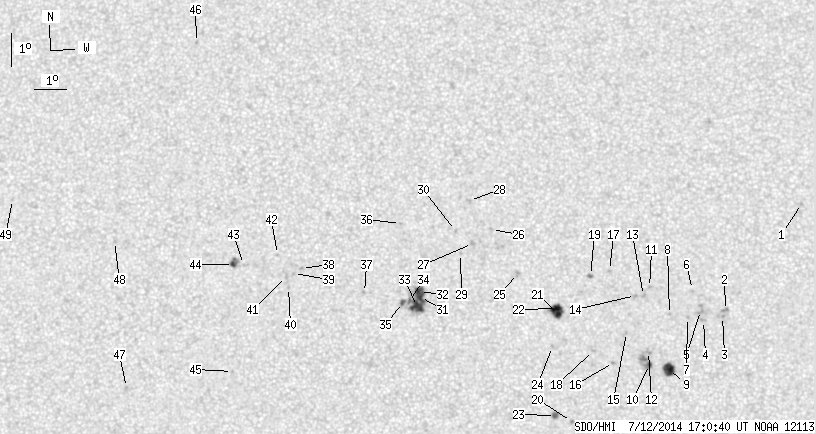

SDO HMI 2014-07-12 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.82 | 157.17 | 25.79 | 78.44 | 8.03 | 163.59 | -2.20 | 219.25 | 0.1051 | -404.6 | -242.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.21 | 172.94 | 7.16 | 315.62 | 0.1755 | -848.0 | -699.4 | |
| 0.00 | 2.81 | 0.00 | 1.40 | 7.96 | 170.52 | 4.73 | 309.78 | 0.1068 | -916.0 | -817.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.78 | 170.43 | 4.64 | 308.99 | 0.1036 | -1088.0 | -902.7 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 7.66 | 169.84 | 4.05 | 311.86 | 0.0945 | -900.0 | -800.6 | |
| 0.00 | 4.81 | 0.00 | 2.39 | 7.96 | 169.75 | 3.96 | 314.84 | 0.0970 | -1013.0 | -884.7 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 8.61 | 169.51 | 3.72 | 320.98 | 0.1025 | -427.0 | -541.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.75 | 169.35 | 3.56 | 316.29 | 0.0894 | -926.0 | -815.3 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.85 | 168.79 | 3.01 | 321.77 | 0.0844 | -892.0 | -678.1 | |
| 9.89 | 12.71 | 4.91 | 6.31 | 6.17 | 168.75 | 2.96 | 305.55 | 0.0635 | -1222.5 | -750.2 | |
| 1.82 | 12.62 | 0.90 | 6.26 | 6.32 | 168.17 | 2.38 | 313.65 | 0.0573 | -1159.2 | -953.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.67 | 168.18 | 2.40 | 332.76 | 0.0908 | -814.0 | -613.1 | |
| 0.00 | 2.81 | 0.00 | 1.40 | 6.72 | 168.14 | 2.35 | 318.64 | 0.0620 | -813.0 | -690.1 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.43 | 168.00 | 2.21 | 333.37 | 0.0855 | -1012.0 | -803.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.43 | 167.75 | 1.96 | 335.98 | 0.0837 | -754.0 | -549.0 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.30 | 167.47 | 1.68 | 332.73 | 0.0638 | -936.0 | -702.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.39 | 167.06 | 1.28 | 331.30 | 0.0464 | -1057.0 | -812.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 9.20 | 166.95 | 1.17 | 347.33 | 0.0920 | 883.0 | 687.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 6.76 | 166.45 | 0.67 | 346.17 | 0.0485 | -1066.0 | -702.1 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 9.05 | 166.37 | 0.58 | 353.43 | 0.0877 | 1124.0 | 876.0 | |
| 0.00 | 1.36 | 0.00 | 0.67 | 4.59 | 165.77 | -0.01 | 1.26 | 0.0092 | 1113.0 | 983.2 | |
| 4.18 | 15.07 | 2.07 | 7.48 | 7.86 | 165.38 | -0.41 | 6.09 | 0.0667 | -1214.5 | -774.9 | |
| 7.17 | -21.00 | 3.56 | -21.00 | 8.04 | 165.32 | -0.47 | 6.67 | 0.0700 | -1194.5 | 999999 | |
| 1.72 | 4.08 | 0.85 | 2.02 | 4.78 | 165.29 | -0.50 | 35.17 | 0.0152 | 1216.5 | 934.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.88 | 165.19 | -0.59 | 11.81 | 0.0503 | -872.0 | -643.9 | |
| 0.00 | 2.72 | 0.00 | 1.35 | 9.11 | 164.11 | -1.67 | 18.15 | 0.0929 | -1006.0 | -701.9 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 10.45 | 163.30 | -2.48 | 20.95 | 0.1197 | 822.0 | 585.3 | |
| 0.00 | 2.63 | 0.00 | 1.31 | 10.02 | 162.72 | -3.07 | 26.91 | 0.1170 | 1034.0 | 793.0 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 11.34 | 162.61 | -3.17 | 23.19 | 0.1385 | 935.0 | 713.7 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 9.72 | 162.35 | -3.44 | 30.96 | 0.1154 | 829.0 | 638.7 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.42 | 162.19 | -3.60 | 29.14 | 0.1274 | 878.0 | 629.0 | |
| 5.08 | 43.48 | 2.53 | 21.68 | 8.37 | 161.13 | -4.66 | 46.92 | 0.1106 | -1216.5 | -645.9 | |
| 5.17 | -31.00 | 2.58 | -31.00 | 8.55 | 161.09 | -4.69 | 45.92 | 0.1132 | -1035.2 | 999999 | |
| 11.89 | -31.00 | 5.93 | -31.00 | 8.09 | 161.04 | -4.75 | 49.36 | 0.1086 | -1172.7 | 999999 | |
| 1.00 | -31.00 | 0.50 | -31.00 | 8.27 | 160.79 | -5.00 | 49.53 | 0.1139 | -898.8 | 999999 | |
| 1.45 | -31.00 | 0.72 | -31.00 | 8.21 | 160.57 | -5.22 | 51.13 | 0.1161 | -960.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.63 | 160.48 | -5.31 | 38.46 | 0.1469 | -921.0 | -763.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.51 | 159.39 | -6.40 | 54.75 | 0.1355 | 645.0 | 514.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.23 | 157.42 | -8.37 | 57.74 | 0.1706 | 855.0 | 656.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.07 | 157.17 | -8.61 | 59.24 | 0.1729 | 923.0 | 744.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.64 | 157.03 | -8.76 | 61.85 | 0.1715 | 970.0 | 720.6 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 8.98 | 156.96 | -8.83 | 60.32 | 0.1753 | 925.0 | 665.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 9.65 | 156.66 | -9.13 | 57.89 | 0.1855 | 1058.0 | 777.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.33 | 155.60 | -10.18 | 61.98 | 0.1985 | 748.0 | 513.7 | |
| 2.45 | 6.54 | 1.24 | 3.31 | 9.33 | 155.29 | -10.50 | 62.69 | 0.2033 | 1145.7 | 888.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.06 | 155.34 | -10.45 | 78.73 | 0.1848 | 929.0 | 622.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.16 | 153.81 | -11.98 | 43.38 | 0.2915 | -846.0 | -616.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 5.53 | 152.03 | -13.76 | 83.37 | 0.2394 | 784.0 | 574.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.98 | 151.50 | -14.29 | 66.61 | 0.2660 | 791.0 | 563.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.21 | 148.15 | -17.64 | 66.78 | 0.3249 | 745.0 | 566.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
