SDO HMI 2014-07-12 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.70 | 76.88 | 12.16 | 49.41 | 6.34 | 204.74 | 39.51 | 275.10 | 0.6365 | -158.0 | -220.0 | |
|
previous
or next observation for the same group /

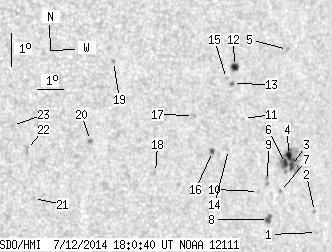

back to the solar disc SDO HMI 2014-07-12 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.85 | 3.74 | 207.40 | 42.16 | 271.08 | 0.6722 | -555.0 | -448.6 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 4.39 | 207.36 | 42.12 | 272.04 | 0.6715 | -740.0 | -628.9 | |
| 3.00 | 37.12 | 1.97 | 24.42 | 5.83 | 206.53 | 41.30 | 274.20 | 0.6606 | -770.8 | -522.2 | |
| 4.18 | -3.00 | 2.74 | -3.00 | 6.14 | 206.43 | 41.20 | 274.68 | 0.6594 | -859.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 9.37 | 206.79 | 41.56 | 279.54 | 0.6659 | -750.0 | -543.1 | |
| 3.54 | -3.00 | 2.32 | -3.00 | 5.90 | 206.29 | 41.06 | 274.32 | 0.6575 | -1001.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 5.06 | 206.01 | 40.78 | 273.03 | 0.6538 | -611.0 | -540.7 | |
| 2.63 | 4.81 | 1.71 | 3.12 | 4.23 | 205.47 | 40.24 | 271.74 | 0.6468 | -844.3 | -666.5 | |
| 0.00 | 3.45 | 0.00 | 2.24 | 5.42 | 205.52 | 40.29 | 273.58 | 0.6472 | -550.0 | -614.1 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 5.10 | 205.13 | 39.90 | 273.09 | 0.6421 | -97.0 | -174.5 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 7.35 | 204.74 | 39.51 | 276.63 | 0.6375 | -644.0 | -510.6 | |
| 3.63 | 5.72 | 2.33 | 3.66 | 8.95 | 204.57 | 39.34 | 279.16 | 0.6365 | 772.7 | 533.4 | |
| 0.45 | 1.54 | 0.29 | 0.99 | 8.44 | 204.43 | 39.20 | 278.37 | 0.6341 | 802.0 | 680.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 6.44 | 204.05 | 38.82 | 275.21 | 0.6278 | -708.0 | -527.4 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 8.60 | 204.21 | 38.98 | 278.65 | 0.6313 | 789.0 | 667.4 | |
| 1.27 | 2.27 | 0.80 | 1.43 | 6.40 | 203.42 | 38.19 | 275.18 | 0.6192 | -830.8 | -630.5 | |
| 0.00 | 2.00 | 0.00 | 1.25 | 7.53 | 202.79 | 37.56 | 277.07 | 0.6111 | 306.0 | 323.6 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 5.86 | 201.18 | 35.95 | 274.37 | 0.5879 | 700.0 | 622.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 9.31 | 199.93 | 34.69 | 280.46 | 0.5733 | 788.0 | 651.7 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 6.93 | 198.83 | 33.60 | 276.40 | 0.5549 | 874.0 | 775.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 5.25 | 196.64 | 31.41 | 273.40 | 0.5219 | 666.0 | 464.4 | |
| 0.00 | 4.18 | 0.00 | 2.42 | 6.75 | 196.49 | 31.26 | 276.30 | 0.5204 | 739.0 | 638.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 7.50 | 196.04 | 30.81 | 277.81 | 0.5146 | 657.0 | 533.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
