SDO HMI 2014-07-12 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.32 | 184.55 | 12.16 | 105.70 | -20.26 | 147.62 | -17.61 | 145.55 | 0.5017 | 4.6 | 41.1 | |
|
previous
or next observation for the same group /

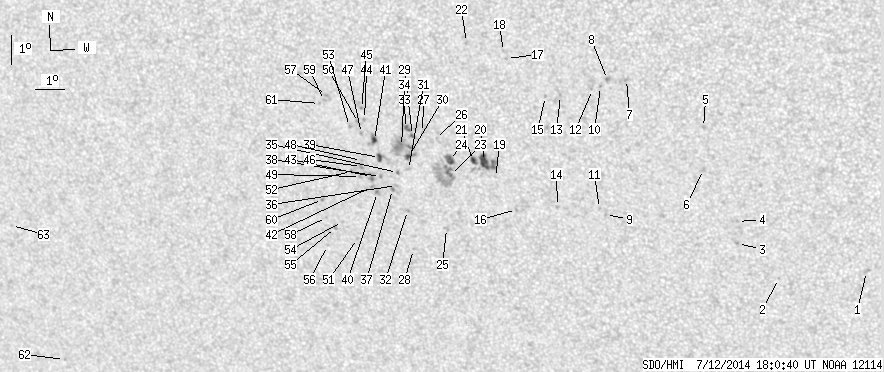

back to the solar disc SDO HMI 2014-07-12 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 1.58 | -23.73 | 161.69 | -3.55 | 173.08 | 0.4716 | -700.0 | -485.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.98 | 158.73 | -6.50 | 167.59 | 0.4831 | 593.0 | 511.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.79 | 157.43 | -7.81 | 164.49 | 0.4702 | 782.0 | 580.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.04 | 157.47 | -7.76 | 164.10 | 0.4589 | 737.0 | 565.2 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -18.90 | 156.53 | -8.71 | 159.81 | 0.4167 | 794.0 | 444.4 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -20.30 | 156.45 | -8.78 | 160.82 | 0.4379 | 80.0 | 222.3 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -17.35 | 154.11 | -11.12 | 153.17 | 0.4096 | 780.0 | 597.0 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -17.35 | 153.49 | -11.74 | 151.91 | 0.4142 | 1043.0 | 809.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.85 | 153.08 | -12.15 | 155.85 | 0.4795 | 626.0 | 509.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.59 | 153.25 | -11.98 | 151.70 | 0.4193 | 769.0 | 565.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.65 | 152.89 | -12.34 | 155.34 | 0.4779 | 641.0 | 452.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -17.69 | 152.98 | -12.25 | 151.29 | 0.4227 | 630.0 | 568.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -17.90 | 151.91 | -13.32 | 149.52 | 0.4339 | 678.0 | 606.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.61 | 151.48 | -13.75 | 152.89 | 0.4867 | 489.0 | 500.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.94 | 151.41 | -13.82 | 148.65 | 0.4385 | 779.0 | 571.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -21.73 | 150.08 | -15.15 | 150.73 | 0.4984 | 509.0 | 503.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -16.72 | 150.23 | -15.00 | 144.90 | 0.4329 | 704.0 | 555.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -16.49 | 150.15 | -15.08 | 144.44 | 0.4308 | 604.0 | 484.7 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.67 | 149.49 | -15.74 | 148.61 | 0.4893 | 533.0 | 429.9 | |
| 7.72 | 17.88 | 4.37 | 10.12 | -20.14 | 149.17 | -16.06 | 147.49 | 0.4852 | 945.7 | 756.2 | |
| 2.18 | 4.27 | 1.23 | 2.42 | -20.11 | 148.80 | -16.43 | 146.87 | 0.4879 | 822.2 | 683.7 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -16.22 | 148.95 | -16.28 | 141.97 | 0.4387 | 827.0 | 606.6 | |
| 0.45 | 31.50 | 0.26 | 18.03 | -20.63 | 147.96 | -17.27 | 146.20 | 0.5014 | 688.8 | 127.3 | |
| 3.99 | 7.08 | 2.27 | 4.03 | -20.13 | 147.99 | -17.24 | 145.63 | 0.4950 | 879.1 | 654.7 | |
| 0.00 | 2.45 | 0.00 | 1.43 | -22.43 | 147.60 | -17.63 | 147.71 | 0.5263 | 689.0 | 471.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -19.40 | 147.59 | -17.64 | 144.13 | 0.4897 | 535.0 | 586.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -19.21 | 147.18 | -18.06 | 143.26 | 0.4912 | 771.0 | 693.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -23.18 | 146.34 | -18.89 | 146.78 | 0.5452 | -554.0 | -479.4 | |
| 0.54 | 2.63 | 0.31 | 1.50 | -19.32 | 146.82 | -18.41 | 142.87 | 0.4957 | 682.8 | 509.1 | |
| 1.63 | 7.35 | 0.94 | 4.21 | -20.03 | 146.60 | -18.63 | 143.45 | 0.5060 | 700.4 | 558.0 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -20.46 | 146.55 | -18.69 | 143.91 | 0.5116 | -244.0 | -249.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.85 | 146.33 | -18.91 | 145.25 | 0.5297 | -659.0 | -505.7 | |
| 0.00 | 5.26 | 0.00 | 3.00 | -19.09 | 146.61 | -18.62 | 142.27 | 0.4950 | 566.0 | 470.7 | |
| 0.00 | 20.24 | 0.00 | 11.59 | -19.70 | 146.40 | -18.83 | 142.74 | 0.5039 | 208.0 | 251.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.57 | 146.15 | -19.08 | 143.48 | 0.5163 | -695.0 | -544.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.01 | 146.06 | -19.17 | 143.89 | 0.5222 | -509.0 | -310.3 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -21.15 | 145.90 | -19.33 | 143.84 | 0.5252 | -778.0 | -642.7 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.72 | 145.55 | -19.69 | 142.82 | 0.5235 | -843.0 | -690.0 | |
| 2.54 | 5.81 | 1.47 | 3.35 | -20.08 | 145.60 | -19.63 | 142.10 | 0.5157 | -754.5 | -269.4 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -21.26 | 145.37 | -19.87 | 143.24 | 0.5313 | -857.0 | -739.1 | |
| 2.27 | 5.99 | 1.31 | 3.45 | -19.52 | 145.50 | -19.73 | 141.24 | 0.5103 | -845.0 | -686.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.06 | 145.22 | -20.01 | 142.80 | 0.5303 | -768.0 | -619.7 | |
| 0.00 | 4.36 | 0.00 | 2.54 | -20.73 | 145.23 | -20.00 | 142.41 | 0.5264 | -934.0 | -851.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -18.83 | 145.24 | -19.99 | 139.97 | 0.5050 | -732.0 | -636.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -18.47 | 145.19 | -20.05 | 139.40 | 0.5015 | -932.0 | -790.5 | |
| 0.00 | 2.81 | 0.00 | 1.64 | -20.40 | 144.93 | -20.30 | 141.59 | 0.5254 | -810.0 | -799.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -19.30 | 145.08 | -20.15 | 140.37 | 0.5117 | -805.0 | -672.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.20 | 144.96 | -20.27 | 141.37 | 0.5229 | -879.0 | -744.8 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -20.74 | 144.85 | -20.38 | 141.90 | 0.5300 | -732.0 | -590.6 | |
| 0.00 | 2.90 | 0.00 | 1.67 | -18.93 | 145.02 | -20.21 | 139.81 | 0.5083 | -610.0 | -570.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.85 | 144.42 | -20.81 | 143.87 | 0.5574 | -726.0 | -536.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -20.58 | 144.56 | -20.67 | 141.32 | 0.5309 | -830.0 | -708.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -19.07 | 144.70 | -20.54 | 139.55 | 0.5130 | -862.0 | -711.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -22.28 | 143.98 | -21.25 | 142.65 | 0.5549 | -772.0 | -669.4 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -22.49 | 143.70 | -21.53 | 142.54 | 0.5597 | -814.0 | -680.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -23.11 | 143.31 | -21.92 | 142.79 | 0.5699 | -571.0 | -416.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -18.07 | 144.04 | -21.20 | 137.29 | 0.5087 | -787.0 | -650.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -22.16 | 143.44 | -21.79 | 141.82 | 0.5584 | -617.0 | -565.9 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -18.23 | 143.94 | -21.29 | 137.40 | 0.5114 | -740.0 | -584.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -21.55 | 143.39 | -21.84 | 141.03 | 0.5522 | -834.0 | -732.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -18.34 | 143.76 | -21.47 | 137.30 | 0.5144 | -788.0 | -608.1 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -27.47 | 132.20 | -33.03 | 136.69 | 0.7073 | -478.0 | -404.2 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -22.83 | 131.51 | -33.72 | 130.79 | 0.6781 | -532.0 | -464.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
