SDO HMI 2014-07-12 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.00 | 163.80 | 28.86 | 81.62 | 7.88 | 163.54 | -1.13 | 245.17 | 0.0981 | -542.1 | -280.2 | |
|
previous
or next observation for the same group /

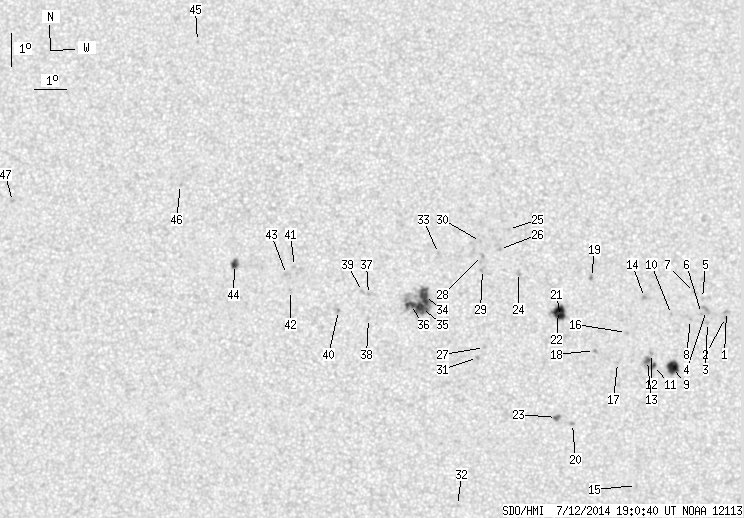

back to the solar disc SDO HMI 2014-07-12 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.18 | 7.96 | 170.52 | 5.85 | 303.97 | 0.1222 | -945.0 | -759.2 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.77 | 170.49 | 5.81 | 302.85 | 0.1200 | -1060.0 | -924.6 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 7.63 | 169.93 | 5.26 | 304.39 | 0.1105 | -948.0 | -742.6 | |
| 0.00 | 3.99 | 0.00 | 1.99 | 7.99 | 169.91 | 5.23 | 307.21 | 0.1139 | -959.0 | -882.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.36 | 169.79 | 5.11 | 310.36 | 0.1162 | -820.0 | -594.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.90 | 169.75 | 5.07 | 307.38 | 0.1108 | -1089.0 | -888.3 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.54 | 169.54 | 4.87 | 312.95 | 0.1152 | -827.0 | -555.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.72 | 169.41 | 4.73 | 307.95 | 0.1042 | -906.0 | -714.6 | |
| 10.53 | 12.98 | 5.23 | 6.45 | 6.26 | 168.84 | 4.16 | 297.93 | 0.0821 | -1176.4 | -745.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.88 | 168.83 | 4.15 | 312.83 | 0.0982 | -828.0 | -657.8 | |
| 1.72 | 10.98 | 0.86 | 5.46 | 6.33 | 168.26 | 3.58 | 302.36 | 0.0738 | -1123.4 | -913.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.69 | 168.20 | 3.52 | 306.84 | 0.0766 | -1004.0 | -795.4 | |
| 1.91 | -11.00 | 0.95 | -11.00 | 6.48 | 168.07 | 3.40 | 305.50 | 0.0727 | -1248.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.40 | 168.00 | 3.32 | 322.78 | 0.0952 | -1112.0 | -936.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 2.67 | 167.71 | 3.04 | 245.23 | 0.0586 | -709.0 | -481.2 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.34 | 167.43 | 2.76 | 320.00 | 0.0746 | -1022.0 | -809.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 6.42 | 167.15 | 2.48 | 313.65 | 0.0596 | -1127.0 | -864.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.79 | 166.45 | 1.77 | 327.03 | 0.0567 | -947.0 | -854.2 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 9.02 | 166.37 | 1.69 | 341.29 | 0.0914 | 1064.0 | 832.2 | |
| 0.00 | 2.09 | 0.00 | 1.03 | 4.57 | 165.77 | 1.09 | 294.28 | 0.0209 | 1155.0 | 857.7 | |
| 4.54 | 16.79 | 2.25 | 8.34 | 7.83 | 165.41 | 0.73 | 349.04 | 0.0670 | -1248.4 | -712.9 | |
| 7.26 | -21.00 | 3.61 | -21.00 | 8.01 | 165.35 | 0.67 | 350.40 | 0.0699 | -1216.2 | 999999 | |
| 1.36 | 3.54 | 0.67 | 1.75 | 4.75 | 165.28 | 0.60 | 318.30 | 0.0158 | 1162.3 | 921.6 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 9.18 | 164.12 | -0.56 | 6.18 | 0.0898 | -862.0 | -727.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.49 | 163.81 | -0.87 | 7.60 | 0.1132 | 752.0 | 547.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.88 | 163.53 | -1.15 | 11.03 | 0.1035 | 841.0 | 708.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.89 | 163.07 | -1.60 | 29.52 | 0.0566 | -920.0 | -696.7 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.70 | 163.00 | -1.67 | 16.36 | 0.1025 | 953.0 | 757.9 | |
| 0.00 | 2.54 | 0.00 | 1.26 | 9.27 | 163.01 | -1.67 | 17.63 | 0.0954 | 423.0 | 567.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 10.13 | 162.94 | -1.74 | 15.80 | 0.1100 | 872.0 | 702.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 6.58 | 162.86 | -1.82 | 35.76 | 0.0541 | -997.0 | -790.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 2.07 | 162.26 | -2.42 | 129.63 | 0.0550 | -865.0 | -558.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 9.76 | 161.64 | -3.03 | 27.77 | 0.1124 | -856.0 | -683.8 | |
| 11.53 | 54.28 | 5.74 | 27.02 | 8.44 | 161.22 | -3.45 | 38.05 | 0.0972 | -1150.0 | -496.7 | |
| 10.53 | -34.00 | 5.24 | -34.00 | 8.07 | 161.13 | -3.54 | 41.25 | 0.0933 | -1191.0 | 999999 | |
| 4.81 | -34.00 | 2.39 | -34.00 | 8.19 | 160.79 | -3.88 | 43.00 | 0.0988 | -991.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.49 | 159.49 | -5.18 | 49.16 | 0.1187 | 766.0 | 473.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.76 | 159.50 | -5.18 | 54.18 | 0.1107 | -959.0 | -632.8 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 8.58 | 159.30 | -5.37 | 49.57 | 0.1222 | 813.0 | 629.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.00 | 158.57 | -6.11 | 56.86 | 0.1264 | 996.0 | 783.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 9.33 | 157.18 | -7.49 | 54.38 | 0.1590 | 779.0 | 623.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.60 | 157.07 | -7.60 | 58.73 | 0.1538 | 924.0 | 747.6 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 9.09 | 156.94 | -7.74 | 56.51 | 0.1601 | 888.0 | 696.2 | |
| 3.81 | 5.72 | 1.92 | 2.88 | 9.38 | 155.31 | -9.37 | 59.84 | 0.1866 | 1097.2 | 847.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.24 | 153.86 | -10.81 | 40.37 | 0.2793 | -865.0 | -639.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.81 | 153.53 | -11.15 | 54.32 | 0.2340 | 822.0 | 691.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 11.21 | 148.18 | -16.50 | 65.50 | 0.3075 | 704.0 | 584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
