SDO HMI 2014-07-12 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.80 | 173.93 | 10.67 | 98.79 | -19.92 | 147.95 | -16.73 | 146.38 | 0.4891 | 196.8 | 164.8 | |
|
previous
or next observation for the same group /

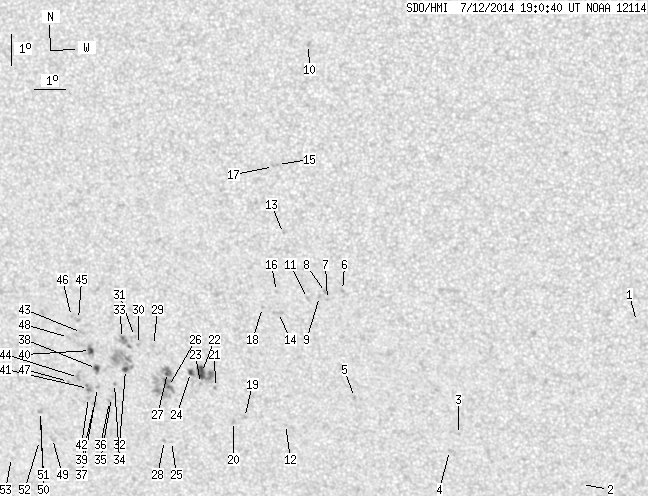

back to the solar disc SDO HMI 2014-07-12 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.44 | -18.29 | 163.48 | -1.19 | 177.03 | 0.3827 | 700.0 | 497.3 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -23.79 | 161.60 | -3.08 | 174.00 | 0.4718 | -686.0 | -542.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.10 | 157.58 | -7.10 | 165.43 | 0.4572 | 641.0 | 494.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.65 | 157.25 | -7.43 | 165.12 | 0.4666 | 720.0 | 552.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.88 | 154.20 | -10.47 | 158.03 | 0.4557 | 824.0 | 624.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -17.34 | 154.05 | -10.63 | 154.18 | 0.4060 | 844.0 | 719.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.64 | 153.54 | -11.14 | 153.47 | 0.4139 | 821.0 | 666.9 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -17.41 | 153.49 | -11.19 | 153.11 | 0.4110 | 914.0 | 800.7 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -17.54 | 153.28 | -11.39 | 152.84 | 0.4143 | 822.0 | 451.5 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -9.48 | 153.33 | -11.34 | 140.23 | 0.3046 | 846.0 | 587.9 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -17.61 | 152.89 | -11.79 | 152.13 | 0.4182 | 729.0 | 611.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.83 | 151.82 | -12.85 | 154.62 | 0.4837 | 523.0 | 463.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -15.51 | 152.25 | -12.43 | 148.13 | 0.3945 | 784.0 | 684.7 | |
| 0.00 | 3.99 | 0.00 | 2.19 | -18.09 | 151.90 | -12.77 | 150.77 | 0.4322 | 527.0 | 525.9 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -13.29 | 152.18 | -12.49 | 144.66 | 0.3655 | 827.0 | 643.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.40 | 151.89 | -12.79 | 149.91 | 0.4230 | 648.0 | 496.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.36 | 152.05 | -12.63 | 144.48 | 0.3676 | 805.0 | 553.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -17.93 | 151.39 | -13.29 | 149.62 | 0.4341 | 765.0 | 577.4 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -21.61 | 150.46 | -14.22 | 152.11 | 0.4901 | 669.0 | 604.0 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -21.76 | 150.07 | -14.60 | 151.63 | 0.4948 | 630.0 | 468.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.62 | 149.58 | -15.09 | 149.61 | 0.4837 | 606.0 | 474.9 | |
| 6.99 | 22.69 | 3.94 | 12.81 | -20.12 | 149.16 | -15.52 | 148.35 | 0.4806 | 976.5 | 726.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -20.49 | 149.09 | -15.59 | 148.66 | 0.4859 | 487.0 | 331.7 | |
| 1.63 | -22.00 | 0.92 | -22.00 | -20.13 | 148.79 | -15.89 | 147.76 | 0.4837 | 863.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.48 | 147.87 | -16.81 | 148.98 | 0.5205 | 507.0 | 378.8 | |
| 0.64 | 28.68 | 0.36 | 16.37 | -20.62 | 147.99 | -16.69 | 147.07 | 0.4964 | 682.4 | 156.4 | |
| 2.72 | 7.44 | 1.55 | 4.23 | -20.15 | 148.01 | -16.67 | 146.55 | 0.4904 | 908.3 | 635.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.45 | 147.63 | -17.05 | 148.59 | 0.5219 | 637.0 | 511.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.26 | 147.63 | -17.04 | 144.86 | 0.4827 | 817.0 | 630.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -19.23 | 147.13 | -17.55 | 144.06 | 0.4869 | 796.0 | 706.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -18.97 | 147.02 | -17.65 | 143.56 | 0.4847 | 756.0 | 656.6 | |
| 1.91 | 26.41 | 1.09 | 15.08 | -20.08 | 146.59 | -18.09 | 144.31 | 0.5018 | 692.4 | 362.0 | |
| 0.64 | 8.53 | 0.36 | 4.84 | -19.05 | 146.61 | -18.07 | 143.03 | 0.4894 | 792.9 | 509.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.55 | 146.15 | -18.52 | 144.26 | 0.5113 | -721.0 | -604.3 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -21.03 | 145.99 | -18.69 | 144.60 | 0.5183 | -617.0 | -433.5 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -21.16 | 145.90 | -18.78 | 144.64 | 0.5207 | -792.0 | -700.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -20.70 | 145.55 | -19.13 | 143.58 | 0.5183 | -871.0 | -716.2 | |
| 1.91 | 4.27 | 1.10 | 2.45 | -20.07 | 145.60 | -19.08 | 142.86 | 0.5105 | -744.6 | -455.5 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -21.24 | 145.37 | -19.30 | 143.99 | 0.5262 | -786.0 | -655.8 | |
| 2.36 | 4.99 | 1.35 | 2.86 | -19.47 | 145.47 | -19.21 | 141.91 | 0.5049 | -901.3 | -640.2 | |
| 0.00 | 5.08 | 0.00 | 2.95 | -20.74 | 145.23 | -19.44 | 143.19 | 0.5216 | -942.0 | -832.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.05 | 145.19 | -19.49 | 143.51 | 0.5255 | -706.0 | -619.6 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -18.88 | 145.23 | -19.44 | 140.80 | 0.5003 | -717.0 | -524.9 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -20.38 | 144.94 | -19.74 | 142.33 | 0.5202 | -685.0 | -763.7 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -18.45 | 145.18 | -19.49 | 140.15 | 0.4960 | -917.0 | -770.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -18.36 | 144.95 | -19.72 | 139.70 | 0.4972 | -819.0 | -701.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -20.52 | 144.57 | -20.11 | 142.01 | 0.5251 | -648.0 | -626.6 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -19.05 | 144.76 | -19.91 | 140.38 | 0.5068 | -736.0 | -630.2 | |
| 0.00 | 2.54 | 0.00 | 1.51 | -22.47 | 143.72 | -20.96 | 143.25 | 0.5545 | -689.0 | -622.9 | |
| 0.00 | 2.72 | 0.00 | 1.61 | -21.56 | 143.44 | -21.24 | 141.81 | 0.5470 | -841.0 | -654.3 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -21.87 | 143.39 | -21.29 | 142.12 | 0.5508 | -601.0 | -482.5 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -22.55 | 143.24 | -21.43 | 142.75 | 0.5596 | -696.0 | -501.9 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -23.16 | 142.14 | -22.54 | 142.11 | 0.5759 | -601.0 | -438.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
