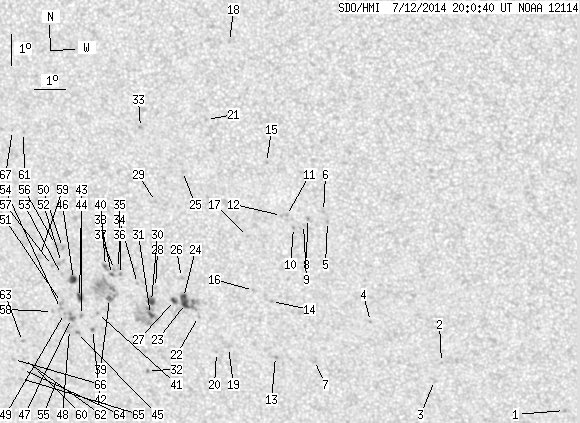

SDO HMI 2014-07-12 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.24 | 185.17 | 13.18 | 105.08 | -19.96 | 147.78 | -16.34 | 147.03 | 0.4870 | 170.5 | 137.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.97 | -23.71 | 161.58 | -2.54 | 175.02 | 0.4699 | -517.0 | -456.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.09 | 157.55 | -6.57 | 166.48 | 0.4550 | 617.0 | 495.2 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -22.70 | 157.29 | -6.83 | 166.30 | 0.4653 | 715.0 | 572.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.72 | 155.28 | -8.84 | 161.06 | 0.4446 | 717.0 | 556.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.42 | 154.07 | -10.05 | 155.51 | 0.4033 | 831.0 | 696.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.09 | 153.96 | -10.16 | 154.92 | 0.3994 | 867.0 | 612.4 | |
| 0.00 | 2.63 | 0.00 | 1.48 | -22.06 | 153.33 | -10.79 | 158.46 | 0.4744 | 440.0 | 370.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.33 | 153.43 | -10.69 | 154.05 | 0.4064 | 1029.0 | 814.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.53 | 153.29 | -10.83 | 153.98 | 0.4102 | 747.0 | 475.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -17.63 | 152.95 | -11.17 | 153.41 | 0.4140 | 830.0 | 735.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.24 | 152.75 | -11.37 | 152.54 | 0.4100 | 896.0 | 722.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.24 | 152.59 | -11.53 | 152.21 | 0.4113 | 527.0 | 486.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.94 | 152.03 | -12.09 | 156.05 | 0.4805 | 634.0 | 527.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.09 | 152.05 | -12.07 | 154.31 | 0.4547 | 745.0 | 607.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.52 | 152.21 | -11.91 | 149.24 | 0.3905 | 782.0 | 607.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.73 | 151.49 | -12.64 | 152.89 | 0.4537 | 700.0 | 507.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.95 | 151.43 | -12.69 | 150.76 | 0.4298 | 708.0 | 530.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -11.67 | 151.23 | -12.89 | 141.00 | 0.3486 | 748.0 | 565.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -21.66 | 150.48 | -13.65 | 153.12 | 0.4869 | 685.0 | 523.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -21.84 | 150.05 | -14.07 | 152.59 | 0.4922 | 569.0 | 475.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.17 | 150.35 | -13.77 | 143.44 | 0.3891 | 777.0 | 592.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.63 | 149.57 | -14.55 | 150.52 | 0.4798 | 540.0 | 394.6 | |
| 4.36 | 18.52 | 2.45 | 10.42 | -20.21 | 149.17 | -14.95 | 149.39 | 0.4773 | 961.1 | 794.6 | |
| 2.54 | -23.00 | 1.43 | -23.00 | -20.01 | 149.12 | -15.00 | 149.08 | 0.4751 | 1021.1 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -15.86 | 149.45 | -14.67 | 144.29 | 0.4191 | 496.0 | 510.8 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -19.34 | 149.12 | -15.00 | 148.29 | 0.4665 | 598.0 | 477.1 | |
| 1.91 | 3.54 | 1.07 | 2.00 | -20.11 | 148.81 | -15.31 | 148.68 | 0.4789 | 852.1 | 690.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -19.69 | 148.22 | -15.91 | 147.21 | 0.4784 | 912.0 | 663.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -16.85 | 148.48 | -15.64 | 143.98 | 0.4405 | 593.0 | 489.1 | |
| 3.09 | 32.04 | 1.75 | 18.21 | -20.16 | 148.03 | -16.09 | 147.48 | 0.4859 | 897.6 | 206.6 | |
| 1.82 | -30.00 | 1.03 | -30.00 | -20.60 | 147.95 | -16.17 | 147.86 | 0.4920 | 659.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.50 | 147.62 | -16.50 | 149.46 | 0.5184 | 711.0 | 604.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -14.46 | 148.18 | -15.94 | 139.87 | 0.4143 | 764.0 | 679.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.57 | 147.62 | -16.50 | 146.11 | 0.4819 | 694.0 | 548.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.28 | 147.08 | -17.04 | 144.90 | 0.4831 | 856.0 | 771.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -19.08 | 147.03 | -17.09 | 144.58 | 0.4811 | 693.0 | 624.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.12 | 146.89 | -17.23 | 144.41 | 0.4827 | 703.0 | 641.9 | |
| 0.54 | 2.00 | 0.31 | 1.13 | -19.29 | 146.77 | -17.35 | 144.44 | 0.4858 | 721.5 | 566.2 | |
| 1.27 | 32.58 | 0.72 | 18.55 | -20.09 | 146.61 | -17.51 | 145.20 | 0.4969 | 710.4 | 323.6 | |
| 0.45 | 3.27 | 0.26 | 1.85 | -19.03 | 146.60 | -17.52 | 143.84 | 0.4843 | 752.0 | 619.1 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.60 | 146.14 | -17.98 | 145.12 | 0.5072 | -757.0 | -635.5 | |
| 0.36 | 1.72 | 0.21 | 1.00 | -21.14 | 145.90 | -18.22 | 145.41 | 0.5157 | -832.8 | -700.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.68 | 145.58 | -18.54 | 144.40 | 0.5130 | -854.0 | -741.2 | |
| 2.27 | 3.81 | 1.30 | 2.19 | -20.08 | 145.59 | -18.53 | 143.67 | 0.5058 | -701.8 | -440.6 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -21.26 | 145.37 | -18.75 | 144.79 | 0.5216 | -857.0 | -667.9 | |
| 3.63 | 5.90 | 2.07 | 3.37 | -19.48 | 145.46 | -18.66 | 142.72 | 0.5000 | -886.2 | -599.2 | |
| 1.00 | 4.36 | 0.58 | 2.52 | -20.79 | 145.23 | -18.90 | 144.02 | 0.5174 | -971.6 | -837.5 | |
| 0.00 | 2.63 | 0.00 | 1.53 | -21.16 | 145.11 | -19.01 | 144.31 | 0.5228 | -541.0 | -551.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.63 | 145.01 | -19.12 | 143.51 | 0.5174 | -884.0 | -754.5 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -18.43 | 145.21 | -18.91 | 140.97 | 0.4902 | -934.0 | -766.6 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -20.26 | 144.95 | -19.17 | 142.98 | 0.5137 | -776.0 | -711.3 | |
| 0.00 | 3.54 | 0.00 | 2.02 | -18.93 | 145.12 | -19.00 | 141.50 | 0.4968 | -541.0 | -651.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -19.33 | 145.07 | -19.05 | 141.96 | 0.5018 | -795.0 | -628.2 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -20.46 | 144.89 | -19.23 | 143.15 | 0.5166 | -920.0 | -803.5 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -22.84 | 144.45 | -19.67 | 145.35 | 0.5479 | -640.0 | -526.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -18.34 | 144.98 | -19.14 | 140.51 | 0.4913 | -838.0 | -769.4 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -19.03 | 144.80 | -19.32 | 141.18 | 0.5010 | -847.0 | -703.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -20.57 | 144.60 | -19.52 | 142.88 | 0.5204 | -750.0 | -560.4 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -18.75 | 144.39 | -19.73 | 140.22 | 0.5017 | -749.0 | -573.8 | |
| 0.00 | 2.00 | 0.00 | 1.18 | -22.45 | 143.70 | -20.42 | 143.92 | 0.5497 | -773.0 | -658.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -14.71 | 144.29 | -19.83 | 134.11 | 0.4588 | 667.0 | 456.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -22.22 | 143.35 | -20.77 | 143.20 | 0.5502 | -734.0 | -555.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -21.61 | 143.41 | -20.71 | 142.55 | 0.5429 | -891.0 | -680.4 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -22.56 | 143.26 | -20.86 | 143.48 | 0.5548 | -781.0 | -523.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -22.87 | 143.14 | -20.98 | 143.69 | 0.5593 | -555.0 | -495.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -22.23 | 142.99 | -21.13 | 142.75 | 0.5534 | -393.0 | -340.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.65 | 143.93 | -20.19 | 133.50 | 0.4623 | 607.0 | 501.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
