SDO HMI 2014-07-12 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.21 | 423.14 | 217.93 | 1046.35 | -7.25 | 241.49 | 77.92 | 261.74 | 0.9790 | -32.8 | 84.1 | |
|
previous
or next observation for the same group /

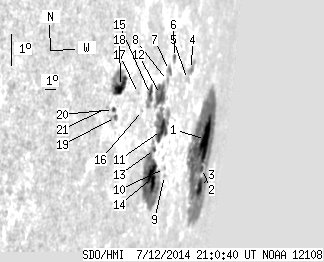

back to the solar disc SDO HMI 2014-07-12 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.23 | 214.92 | 78.27 | 678.74 | -7.32 | 244.07 | 80.51 | 261.93 | 0.9887 | 153.6 | 187.7 | |
| 2.09 | -1.00 | 6.85 | -1.00 | -8.22 | 244.05 | 80.49 | 261.02 | 0.9889 | 234.0 | 999999 | |
| 6.44 | -1.00 | 21.45 | -1.00 | -8.82 | 244.22 | 80.65 | 260.43 | 0.9895 | 90.5 | 999999 | |
| 0.73 | 7.08 | 1.65 | 16.11 | -4.91 | 240.50 | 76.94 | 264.04 | 0.9768 | 512.5 | 280.3 | |
| 0.00 | 2.27 | 0.00 | 5.00 | -5.18 | 240.06 | 76.50 | 263.71 | 0.9752 | 317.0 | 350.7 | |
| 1.09 | 3.54 | 2.09 | 6.80 | -4.37 | 238.17 | 74.61 | 264.36 | 0.9671 | -142.2 | -35.5 | |
| 1.45 | 4.54 | 2.71 | 8.47 | -4.74 | 237.70 | 74.13 | 263.93 | 0.9652 | -393.6 | -125.9 | |
| 0.00 | 2.54 | 0.00 | 4.72 | -5.04 | 237.56 | 74.00 | 263.61 | 0.9647 | -184.0 | -124.6 | |
| 0.00 | 1.09 | 0.00 | 2.19 | -8.04 | 238.46 | 74.89 | 260.62 | 0.9700 | 186.0 | 226.4 | |
| 0.00 | 1.36 | 0.00 | 2.70 | -7.81 | 238.34 | 74.78 | 260.84 | 0.9694 | 18.0 | 101.2 | |
| 11.80 | 59.27 | 21.97 | 108.15 | -6.57 | 237.43 | 73.87 | 262.01 | 0.9648 | -454.9 | -118.5 | |
| 12.98 | -11.00 | 23.15 | -11.00 | -5.43 | 236.91 | 73.34 | 263.14 | 0.9618 | 332.3 | 999999 | |
| 1.18 | 77.24 | 2.12 | 140.26 | -7.12 | 236.88 | 73.32 | 261.39 | 0.9626 | -593.5 | -252.0 | |
| 15.52 | -13.00 | 28.33 | -13.00 | -8.00 | 237.06 | 73.49 | 260.50 | 0.9638 | -459.6 | 999999 | |
| 4.63 | 11.71 | 7.74 | 19.56 | -5.35 | 235.83 | 72.27 | 263.11 | 0.9565 | 373.2 | 238.6 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -5.80 | 235.16 | 71.60 | 262.57 | 0.9533 | 313.0 | 330.0 | |
| 0.00 | 1.00 | 0.00 | 1.57 | -5.24 | 234.61 | 71.05 | 263.09 | 0.9501 | 274.0 | 261.6 | |
| 12.89 | 29.04 | 18.50 | 41.38 | -4.90 | 232.88 | 69.32 | 263.25 | 0.9401 | -427.1 | -383.6 | |
| 1.00 | 4.18 | 1.43 | 5.94 | -5.84 | 232.68 | 69.11 | 262.23 | 0.9395 | -261.7 | -233.8 | |
| 1.18 | 2.09 | 1.67 | 2.95 | -5.58 | 232.44 | 68.87 | 262.48 | 0.9379 | -497.5 | -445.7 | |
| 0.00 | 1.00 | 0.00 | 1.37 | -5.48 | 231.90 | 68.34 | 262.52 | 0.9346 | -543.0 | -462.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
