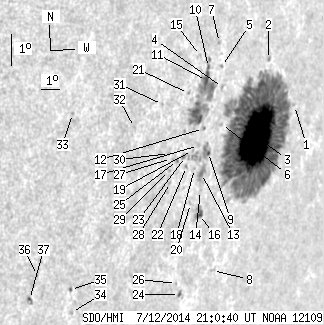

SDO HMI 2014-07-12 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.81 | 747.17 | 115.57 | 717.55 | -7.84 | 221.46 | 57.90 | 258.32 | 0.8587 | 646.1 | 276.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.04 | -7.08 | 224.27 | 60.70 | 259.68 | 0.8816 | -375.0 | -315.8 | |
| 0.00 | 1.72 | 0.00 | 1.69 | -5.54 | 222.38 | 58.81 | 261.12 | 0.8638 | -286.0 | -214.3 | |
| 108.01 | 587.05 | 105.89 | 574.67 | -7.94 | 222.13 | 58.56 | 258.33 | 0.8649 | 963.5 | 307.7 | |
| 0.00 | 2.09 | 0.00 | 1.90 | -6.25 | 219.85 | 56.28 | 259.86 | 0.8420 | 108.0 | 20.6 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -5.59 | 219.69 | 56.12 | 260.60 | 0.8396 | -223.0 | -152.0 | |
| 0.00 | 1.36 | 0.00 | 1.25 | -7.40 | 220.00 | 56.43 | 258.53 | 0.8452 | 622.0 | 503.7 | |
| 0.00 | 1.45 | 0.00 | 1.31 | -4.84 | 219.48 | 55.91 | 261.46 | 0.8366 | -430.0 | -334.6 | |
| 0.00 | 2.00 | 0.00 | 1.92 | -12.01 | 220.69 | 57.13 | 253.37 | 0.8594 | -400.0 | -313.0 | |
| 0.91 | 17.79 | 0.83 | 16.07 | -8.24 | 219.45 | 55.88 | 257.44 | 0.8415 | 759.1 | 403.6 | |
| 0.54 | 77.24 | 0.48 | 68.72 | -5.58 | 218.98 | 55.41 | 260.49 | 0.8329 | -444.5 | 272.8 | |
| 5.81 | -10.00 | 5.17 | -10.00 | -5.98 | 218.93 | 55.36 | 260.01 | 0.8330 | -195.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.39 | -7.47 | 219.02 | 55.45 | 258.26 | 0.8362 | 552.0 | 500.5 | |
| 0.00 | 11.35 | 0.00 | 10.31 | -8.88 | 219.20 | 55.64 | 256.64 | 0.8404 | 143.0 | 213.4 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -9.41 | 219.27 | 55.71 | 256.03 | 0.8420 | 195.0 | 213.2 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -5.18 | 218.49 | 54.92 | 260.88 | 0.8276 | -404.0 | -381.7 | |
| 2.45 | 9.71 | 2.26 | 8.91 | -10.17 | 219.41 | 55.84 | 255.18 | 0.8446 | 672.4 | 481.2 | |
| 0.00 | 1.63 | 0.00 | 1.46 | -7.98 | 218.85 | 55.28 | 257.61 | 0.8355 | 140.0 | 185.4 | |
| 0.00 | 0.82 | 0.00 | 0.73 | -8.70 | 218.78 | 55.21 | 256.76 | 0.8361 | -199.0 | -151.4 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -8.12 | 218.55 | 54.98 | 257.38 | 0.8329 | -190.0 | -84.3 | |
| 0.00 | 1.27 | 0.00 | 1.15 | -9.79 | 218.82 | 55.25 | 255.48 | 0.8385 | 134.0 | 124.6 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -6.32 | 218.01 | 54.45 | 259.42 | 0.8248 | -491.0 | -422.7 | |
| 0.00 | 1.00 | 0.00 | 0.89 | -8.61 | 218.33 | 54.76 | 256.76 | 0.8317 | -317.0 | -252.7 | |
| 0.00 | 4.99 | 0.00 | 4.41 | -8.29 | 218.21 | 54.64 | 257.11 | 0.8300 | -270.0 | -286.3 | |
| 0.64 | 2.27 | 0.59 | 2.10 | -12.67 | 219.04 | 55.47 | 252.19 | 0.8463 | -580.1 | -504.2 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -8.39 | 217.80 | 54.23 | 256.90 | 0.8263 | -499.0 | -463.9 | |
| 0.00 | 0.82 | 0.00 | 0.75 | -12.30 | 218.76 | 55.19 | 252.54 | 0.8430 | -409.0 | -345.1 | |
| 0.00 | 0.64 | 0.00 | 0.55 | -8.31 | 217.47 | 53.90 | 256.92 | 0.8229 | -509.0 | -506.9 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -9.06 | 217.57 | 54.01 | 256.05 | 0.8254 | -531.0 | -448.2 | |
| 0.00 | 1.00 | 0.00 | 0.87 | -8.68 | 217.44 | 53.87 | 256.47 | 0.8234 | -628.0 | -560.5 | |
| 0.00 | 1.00 | 0.00 | 0.86 | -8.14 | 217.33 | 53.76 | 257.09 | 0.8213 | -426.0 | -393.6 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -6.59 | 216.69 | 53.13 | 258.83 | 0.8122 | -309.0 | -282.4 | |
| 0.00 | 1.18 | 0.00 | 0.97 | -7.22 | 215.37 | 51.81 | 257.76 | 0.8001 | -478.0 | -399.8 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -6.61 | 212.29 | 48.73 | 257.79 | 0.7661 | -576.0 | -493.0 | |
| 0.00 | 1.63 | 0.00 | 1.33 | -12.91 | 213.51 | 49.94 | 250.27 | 0.7948 | 74.0 | 127.9 | |
| 0.00 | 1.54 | 0.00 | 1.24 | -12.17 | 213.26 | 49.70 | 251.09 | 0.7902 | 655.0 | 594.9 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -11.63 | 211.56 | 48.00 | 251.20 | 0.7711 | -497.0 | -382.4 | |
| 0.45 | 2.63 | 0.35 | 2.04 | -12.38 | 211.36 | 47.80 | 250.19 | 0.7713 | -733.4 | -546.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
