SDO HMI 2014-07-12 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.34 | 155.94 | 12.06 | 88.07 | -19.72 | 147.67 | -15.90 | 147.42 | 0.4800 | 153.0 | 151.7 | |
|
previous
or next observation for the same group /

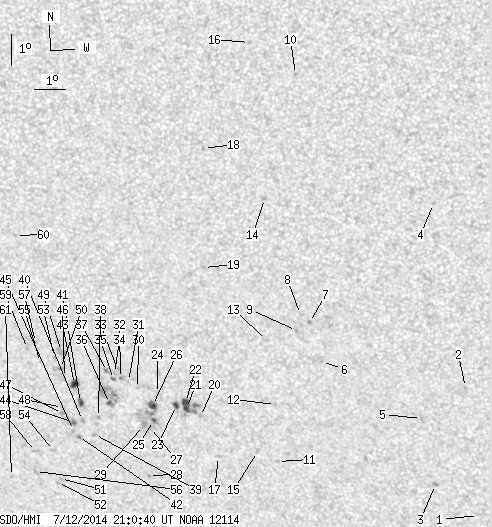

back to the solar disc SDO HMI 2014-07-12 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.36 | -23.75 | 158.65 | -4.92 | 170.46 | 0.4752 | 657.0 | 407.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.42 | 158.38 | -5.19 | 167.93 | 0.4093 | 698.0 | 533.5 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -22.69 | 157.26 | -6.30 | 167.32 | 0.4634 | 717.0 | 604.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -13.43 | 157.54 | -6.03 | 161.24 | 0.3189 | 876.0 | 733.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.46 | 156.91 | -6.66 | 165.33 | 0.4309 | 789.0 | 610.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -18.60 | 153.74 | -9.83 | 157.19 | 0.4191 | 828.0 | 645.8 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -17.32 | 153.42 | -10.14 | 155.20 | 0.4026 | 1093.0 | 838.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.06 | 153.14 | -10.42 | 154.32 | 0.4008 | 509.0 | 445.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.58 | 152.98 | -10.58 | 154.57 | 0.4094 | 836.0 | 749.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.39 | 153.33 | -10.24 | 142.91 | 0.2921 | 896.0 | 619.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.96 | 152.04 | -11.52 | 157.07 | 0.4774 | 752.0 | 548.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.04 | 152.13 | -11.44 | 155.43 | 0.4500 | 772.0 | 675.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -17.93 | 151.98 | -11.58 | 152.91 | 0.4213 | 887.0 | 648.3 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -13.32 | 152.19 | -11.38 | 147.20 | 0.3560 | 905.0 | 661.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.63 | 151.40 | -12.17 | 155.63 | 0.4768 | 616.0 | 530.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.41 | 151.91 | -11.65 | 137.09 | 0.2948 | 840.0 | 653.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.82 | 150.07 | -13.50 | 153.53 | 0.4881 | 704.0 | 504.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -11.76 | 150.32 | -13.25 | 140.41 | 0.3536 | 832.0 | 649.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -15.57 | 150.09 | -13.48 | 146.14 | 0.4046 | 681.0 | 578.7 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.48 | 149.59 | -13.97 | 151.34 | 0.4736 | 687.0 | 573.4 | |
| 3.00 | 18.15 | 1.68 | 10.19 | -20.22 | 149.15 | -14.42 | 150.30 | 0.4735 | 943.8 | 758.4 | |
| 3.27 | -21.00 | 1.83 | -21.00 | -20.02 | 149.13 | -14.43 | 150.05 | 0.4710 | 1021.4 | 999999 | |
| 2.09 | 3.63 | 1.17 | 2.04 | -20.13 | 148.82 | -14.74 | 149.65 | 0.4748 | 878.2 | 696.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.74 | 148.22 | -15.34 | 148.20 | 0.4745 | 844.0 | 543.3 | |
| 0.91 | 16.79 | 0.51 | 9.50 | -20.65 | 147.99 | -15.57 | 148.87 | 0.4879 | 762.1 | 510.7 | |
| 3.63 | -25.00 | 2.05 | -25.00 | -20.14 | 148.01 | -15.55 | 148.33 | 0.4814 | 910.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -20.88 | 147.87 | -15.70 | 148.94 | 0.4920 | -95.0 | -37.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.51 | 147.61 | -15.95 | 150.31 | 0.5146 | 663.0 | 561.5 | |
| 0.00 | 3.54 | 0.00 | 2.01 | -20.82 | 147.64 | -15.93 | 148.50 | 0.4930 | -138.0 | -124.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -19.59 | 147.57 | -16.00 | 146.94 | 0.4780 | 750.0 | 602.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -19.36 | 147.29 | -16.28 | 146.21 | 0.4775 | 492.0 | 401.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.26 | 147.03 | -16.54 | 145.68 | 0.4786 | 942.0 | 810.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.93 | 146.96 | -16.61 | 145.16 | 0.4751 | 768.0 | 602.4 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -19.10 | 146.84 | -16.72 | 145.18 | 0.4782 | 708.0 | 542.2 | |
| 0.45 | 2.00 | 0.26 | 1.13 | -19.30 | 146.79 | -16.78 | 145.35 | 0.4811 | 742.2 | 605.3 | |
| 1.09 | 23.05 | 0.62 | 13.08 | -20.11 | 146.56 | -17.00 | 145.99 | 0.4929 | 706.4 | 430.2 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -19.04 | 146.61 | -16.95 | 144.74 | 0.4794 | 722.0 | 666.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.58 | 146.13 | -17.43 | 145.91 | 0.5024 | -761.0 | -575.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -21.16 | 145.92 | -17.64 | 146.28 | 0.5111 | -874.0 | -711.5 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -20.70 | 145.57 | -17.99 | 145.21 | 0.5085 | -851.0 | -724.5 | |
| 2.18 | 3.72 | 1.25 | 2.13 | -20.09 | 145.58 | -17.99 | 144.49 | 0.5013 | -780.7 | -514.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.24 | 145.36 | -18.20 | 145.56 | 0.5168 | -866.0 | -749.5 | |
| 3.99 | 5.81 | 2.27 | 3.31 | -19.50 | 145.44 | -18.12 | 143.54 | 0.4954 | -814.1 | -525.6 | |
| 0.73 | 2.81 | 0.42 | 1.62 | -20.77 | 145.25 | -18.31 | 144.84 | 0.5122 | -1015.0 | -907.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.04 | 145.22 | -18.35 | 145.11 | 0.5157 | -665.0 | -595.9 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -19.27 | 145.13 | -18.44 | 142.79 | 0.4956 | -683.0 | -429.2 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -20.48 | 144.91 | -18.65 | 143.99 | 0.5117 | -906.0 | -725.6 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -20.28 | 144.94 | -18.63 | 143.78 | 0.5091 | -705.0 | -663.3 | |
| 0.00 | 5.45 | 0.00 | 3.08 | -18.41 | 145.13 | -18.44 | 141.65 | 0.4856 | -802.0 | -780.6 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -18.98 | 145.03 | -18.54 | 142.25 | 0.4931 | -966.0 | -801.4 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.68 | 144.54 | -19.02 | 146.06 | 0.5407 | -717.0 | -521.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -22.82 | 144.42 | -19.15 | 146.04 | 0.5434 | -738.0 | -613.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -18.62 | 144.87 | -18.70 | 141.54 | 0.4904 | -715.0 | -558.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.73 | 144.43 | -19.13 | 144.82 | 0.5305 | -695.0 | -589.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.79 | 144.37 | -19.20 | 141.05 | 0.4972 | -774.0 | -623.4 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -22.46 | 143.70 | -19.87 | 144.67 | 0.5452 | -802.0 | -618.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -18.14 | 144.28 | -19.29 | 140.03 | 0.4906 | -832.0 | -549.3 | |
| 0.00 | 2.18 | 0.00 | 1.28 | -21.78 | 143.80 | -19.77 | 144.02 | 0.5366 | -884.0 | -694.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -18.34 | 143.98 | -19.59 | 139.89 | 0.4958 | -766.0 | -670.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -14.66 | 143.97 | -19.60 | 134.38 | 0.4558 | 518.0 | 390.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -22.66 | 142.82 | -20.74 | 143.75 | 0.5549 | -637.0 | -524.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
