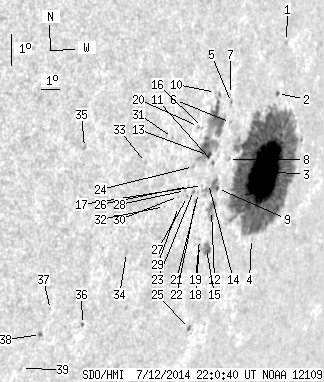

SDO HMI 2014-07-12 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.74 | 733.49 | 112.07 | 716.57 | -7.91 | 221.46 | 58.45 | 258.32 | 0.8636 | 660.1 | 263.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.09 | -3.93 | 222.75 | 59.74 | 263.10 | 0.8700 | 68.0 | 144.3 | |
| 0.82 | 1.82 | 0.81 | 1.81 | -5.51 | 222.42 | 59.41 | 261.24 | 0.8690 | -172.3 | -110.0 | |
| 108.74 | 584.62 | 108.35 | 581.94 | -7.91 | 222.11 | 59.10 | 258.46 | 0.8694 | 924.5 | 294.7 | |
| 0.00 | 1.09 | 0.00 | 1.09 | -9.98 | 221.87 | 58.86 | 256.06 | 0.8705 | 55.0 | 69.7 | |
| 0.00 | 1.91 | 0.00 | 1.76 | -5.62 | 219.76 | 56.74 | 260.67 | 0.8454 | -55.0 | -21.6 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -6.25 | 219.80 | 56.79 | 259.95 | 0.8467 | -73.0 | -94.6 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -5.37 | 219.66 | 56.65 | 260.95 | 0.8442 | -320.0 | -241.3 | |
| 0.00 | 1.45 | 0.00 | 1.36 | -7.40 | 219.90 | 56.88 | 258.62 | 0.8493 | 513.0 | 468.4 | |
| 0.82 | 15.97 | 0.76 | 14.66 | -8.27 | 219.46 | 56.45 | 257.52 | 0.8467 | 695.4 | 403.6 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -5.26 | 218.82 | 55.80 | 260.93 | 0.8362 | -242.0 | -295.3 | |
| 0.00 | 1.36 | 0.00 | 1.24 | -7.44 | 219.06 | 56.05 | 258.41 | 0.8418 | 624.0 | 517.6 | |
| 0.00 | 12.34 | 0.00 | 11.40 | -8.94 | 219.28 | 56.26 | 256.69 | 0.8462 | 195.0 | 182.6 | |
| 1.82 | 74.52 | 1.64 | 67.30 | -7.20 | 218.74 | 55.73 | 258.62 | 0.8384 | 807.8 | 176.2 | |
| 0.00 | 1.72 | 0.00 | 1.57 | -8.08 | 218.92 | 55.90 | 257.62 | 0.8415 | 281.0 | 219.5 | |
| 0.00 | 8.08 | 0.00 | 7.52 | -10.13 | 219.29 | 56.28 | 255.32 | 0.8485 | 708.0 | 570.4 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -6.31 | 218.26 | 55.25 | 259.59 | 0.8325 | -233.0 | -202.4 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -8.12 | 218.59 | 55.58 | 257.51 | 0.8386 | -163.0 | -153.7 | |
| 0.00 | 1.00 | 0.00 | 0.92 | -10.01 | 218.87 | 55.86 | 255.36 | 0.8445 | 137.0 | 60.2 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -9.82 | 218.82 | 55.81 | 255.57 | 0.8437 | 124.0 | 58.4 | |
| 0.00 | 1.00 | 0.00 | 0.88 | -6.26 | 218.04 | 55.03 | 259.60 | 0.8303 | -446.0 | -375.5 | |
| 0.00 | 0.73 | 0.00 | 0.65 | -8.33 | 218.42 | 55.41 | 257.23 | 0.8373 | -304.0 | -253.9 | |
| 0.00 | 1.09 | 0.00 | 0.98 | -8.61 | 218.31 | 55.30 | 256.88 | 0.8368 | -341.0 | -259.1 | |
| 0.00 | 2.00 | 0.00 | 1.79 | -8.25 | 218.13 | 55.12 | 257.26 | 0.8345 | -402.0 | -301.5 | |
| 0.00 | 1.09 | 0.00 | 0.97 | -7.50 | 217.98 | 54.97 | 258.12 | 0.8317 | -189.0 | -69.1 | |
| 0.54 | 1.91 | 0.51 | 1.79 | -12.64 | 219.09 | 56.08 | 252.38 | 0.8516 | -595.5 | -521.7 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -8.11 | 217.83 | 54.82 | 257.36 | 0.8314 | -200.0 | -192.2 | |
| 0.00 | 0.91 | 0.00 | 0.81 | -8.42 | 217.84 | 54.83 | 256.99 | 0.8320 | -548.0 | -469.1 | |
| 0.00 | 0.73 | 0.00 | 0.64 | -8.23 | 217.69 | 54.68 | 257.19 | 0.8303 | -576.0 | -433.9 | |
| 0.00 | 1.00 | 0.00 | 0.88 | -8.71 | 217.42 | 54.41 | 256.56 | 0.8286 | -613.0 | -538.5 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -8.39 | 217.35 | 54.34 | 256.92 | 0.8274 | -433.0 | -529.0 | |
| 0.00 | 0.82 | 0.00 | 0.70 | -6.52 | 216.70 | 53.69 | 259.02 | 0.8177 | -327.0 | -261.3 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -8.66 | 216.67 | 53.66 | 256.44 | 0.8213 | -493.0 | -471.7 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -7.22 | 215.43 | 52.41 | 257.89 | 0.8062 | -434.0 | -398.8 | |
| 0.00 | 2.18 | 0.00 | 1.82 | -10.00 | 215.01 | 51.99 | 254.41 | 0.8078 | -71.0 | -119.8 | |
| 0.00 | 1.63 | 0.00 | 1.27 | -6.58 | 212.35 | 49.33 | 257.97 | 0.7727 | -402.0 | -402.4 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -12.17 | 213.34 | 50.33 | 251.29 | 0.7966 | 554.0 | 562.9 | |
| 0.00 | 0.64 | 0.00 | 0.50 | -11.60 | 211.66 | 48.65 | 251.45 | 0.7779 | -489.0 | -414.0 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -12.37 | 211.37 | 48.36 | 250.39 | 0.7772 | -780.0 | -644.3 | |
| 0.00 | 1.18 | 0.00 | 0.92 | -13.42 | 210.75 | 47.74 | 248.87 | 0.7740 | -283.0 | -199.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
