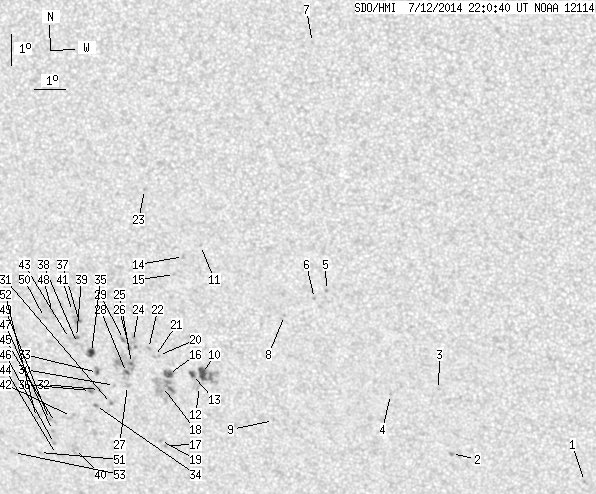

SDO HMI 2014-07-12 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.70 | 160.41 | 10.54 | 90.72 | -20.11 | 147.26 | -15.75 | 148.12 | 0.4839 | 38.4 | 94.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.66 | 161.63 | -1.38 | 177.29 | 0.4682 | -733.0 | -606.0 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -22.72 | 157.24 | -5.77 | 168.37 | 0.4621 | 684.0 | 616.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.55 | 156.90 | -6.11 | 166.55 | 0.4302 | 674.0 | 505.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.73 | 155.32 | -7.69 | 163.38 | 0.4394 | 761.0 | 561.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.30 | 153.42 | -9.59 | 156.39 | 0.3989 | 1067.0 | 899.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -17.57 | 153.01 | -10.00 | 155.80 | 0.4054 | 879.0 | 774.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.38 | 153.30 | -9.71 | 144.36 | 0.2868 | 889.0 | 642.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.14 | 152.00 | -11.01 | 154.31 | 0.4204 | 768.0 | 533.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.65 | 151.38 | -11.63 | 156.60 | 0.4738 | 697.0 | 531.4 | |
| 6.08 | 20.24 | 3.41 | 11.33 | -20.11 | 149.14 | -13.87 | 151.11 | 0.4680 | 997.4 | 759.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.89 | 149.42 | -13.60 | 146.37 | 0.4100 | 884.0 | 642.0 | |
| 0.00 | 3.72 | 0.00 | 2.09 | -20.55 | 149.00 | -14.01 | 151.35 | 0.4748 | 91.0 | 137.5 | |
| 1.82 | 4.27 | 1.02 | 2.39 | -20.15 | 148.80 | -14.21 | 150.58 | 0.4710 | 860.0 | 644.6 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -16.26 | 148.83 | -14.18 | 145.79 | 0.4199 | 797.0 | 634.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -16.85 | 148.49 | -14.52 | 145.97 | 0.4306 | 620.0 | 528.8 | |
| 3.63 | 7.44 | 2.04 | 4.19 | -20.16 | 147.99 | -15.02 | 149.24 | 0.4774 | 917.9 | 715.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.57 | 147.63 | -15.38 | 151.25 | 0.5112 | 700.0 | 557.5 | |
| 0.00 | 19.70 | 0.00 | 11.14 | -20.57 | 147.75 | -15.26 | 149.30 | 0.4846 | 222.0 | 192.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.40 | 147.48 | -15.53 | 150.84 | 0.5101 | 543.0 | 453.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.53 | 147.72 | -15.29 | 148.05 | 0.4715 | 764.0 | 602.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.57 | 147.58 | -15.43 | 147.86 | 0.4731 | 642.0 | 578.3 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -19.31 | 147.41 | -15.60 | 147.26 | 0.4712 | 848.0 | 667.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.12 | 147.72 | -15.30 | 140.48 | 0.4037 | 713.0 | 552.8 | |
| 0.00 | 5.45 | 0.00 | 3.06 | -19.08 | 146.93 | -16.08 | 146.20 | 0.4725 | 598.0 | 704.5 | |
| 0.45 | 18.97 | 0.26 | 10.74 | -19.82 | 146.78 | -16.23 | 146.86 | 0.4829 | 899.0 | 424.4 | |
| 0.54 | 1.36 | 0.31 | 0.77 | -19.32 | 146.77 | -16.24 | 146.23 | 0.4768 | 742.5 | 679.6 | |
| 0.00 | 2.45 | 0.00 | 1.39 | -20.56 | 146.57 | -16.44 | 147.40 | 0.4939 | -181.0 | -146.3 | |
| 0.91 | -25.00 | 0.51 | -25.00 | -20.12 | 146.58 | -16.43 | 146.91 | 0.4884 | 739.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -19.02 | 146.60 | -16.41 | 145.59 | 0.4746 | 851.0 | 663.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.57 | 146.12 | -16.89 | 146.73 | 0.4977 | -706.0 | -580.5 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -21.18 | 145.95 | -17.06 | 147.17 | 0.5066 | -866.0 | -640.1 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -20.71 | 145.60 | -17.42 | 146.10 | 0.5039 | -776.0 | -684.0 | |
| 0.82 | 3.63 | 0.47 | 2.07 | -20.14 | 145.60 | -17.42 | 145.41 | 0.4970 | -834.1 | -722.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -21.26 | 145.39 | -17.62 | 146.43 | 0.5122 | -884.0 | -699.2 | |
| 3.81 | 5.81 | 2.16 | 3.30 | -19.48 | 145.47 | -17.54 | 144.40 | 0.4901 | -881.4 | -609.5 | |
| 0.00 | 3.36 | 0.00 | 1.93 | -20.75 | 145.28 | -17.73 | 145.68 | 0.5070 | -1020.0 | -937.6 | |
| 0.64 | 5.54 | 0.36 | 3.12 | -18.46 | 145.18 | -17.84 | 142.63 | 0.4806 | -988.1 | -798.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.19 | 145.03 | -17.99 | 143.36 | 0.4906 | -598.0 | -479.6 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -18.99 | 145.02 | -18.00 | 143.08 | 0.4883 | -959.0 | -820.3 | |
| 0.00 | 5.08 | 0.00 | 2.98 | -22.73 | 144.47 | -18.54 | 146.78 | 0.5375 | -664.0 | -512.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -18.13 | 144.98 | -18.04 | 141.88 | 0.4786 | -754.0 | -577.8 | |
| 0.00 | 3.45 | 0.00 | 2.00 | -21.65 | 144.51 | -18.50 | 145.62 | 0.5242 | -280.0 | -341.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -19.03 | 144.77 | -18.24 | 142.77 | 0.4910 | -854.0 | -736.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.96 | 143.81 | -19.20 | 146.12 | 0.5455 | -665.0 | -549.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -21.86 | 143.93 | -19.08 | 145.05 | 0.5317 | -883.0 | -781.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -22.58 | 143.79 | -19.22 | 145.68 | 0.5412 | -732.0 | -569.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.14 | 143.79 | -19.22 | 145.17 | 0.5361 | -698.0 | -657.8 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -18.15 | 144.30 | -18.71 | 140.89 | 0.4853 | -860.0 | -682.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.77 | 143.74 | -19.28 | 144.67 | 0.5322 | -820.0 | -749.1 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -18.35 | 144.00 | -19.01 | 140.74 | 0.4904 | -704.0 | -596.0 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -22.90 | 143.22 | -19.79 | 145.28 | 0.5497 | -701.0 | -581.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -21.71 | 143.29 | -19.72 | 144.00 | 0.5354 | -638.0 | -544.7 | |
| 0.00 | 2.72 | 0.00 | 1.62 | -22.92 | 142.30 | -20.72 | 144.10 | 0.5577 | -626.0 | -419.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
