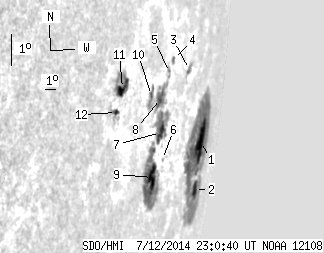

SDO HMI 2014-07-12 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.24 | 383.42 | 197.38 | 1047.48 | -7.26 | 241.45 | 78.99 | 261.83 | 0.9824 | 45.0 | 73.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.96 | 190.80 | 83.83 | 685.78 | -7.33 | 244.00 | 81.54 | 262.01 | 0.9913 | 391.2 | 179.5 | |
| 5.99 | -1.00 | 22.91 | -1.00 | -8.83 | 244.17 | 81.71 | 260.52 | 0.9920 | 232.9 | 999999 | |
| 0.00 | 5.45 | 0.00 | 13.54 | -4.86 | 240.54 | 78.08 | 264.19 | 0.9809 | 374.0 | 275.1 | |
| 1.00 | 2.18 | 2.06 | 4.50 | -4.39 | 238.17 | 75.71 | 264.45 | 0.9718 | -159.7 | -144.5 | |
| 0.00 | 3.99 | 0.00 | 8.02 | -4.76 | 237.79 | 75.33 | 264.03 | 0.9704 | -385.0 | -241.9 | |
| 0.00 | 1.36 | 0.00 | 2.86 | -7.46 | 238.04 | 75.58 | 261.28 | 0.9726 | -36.0 | -17.3 | |
| 9.98 | 57.73 | 19.88 | 113.32 | -6.58 | 237.38 | 74.92 | 262.12 | 0.9694 | -533.1 | -91.3 | |
| 9.80 | -7.00 | 18.80 | -7.00 | -5.50 | 236.96 | 74.50 | 263.18 | 0.9671 | 295.6 | 999999 | |
| 13.98 | 72.89 | 27.40 | 142.11 | -7.95 | 237.07 | 74.61 | 260.67 | 0.9688 | -581.1 | -251.6 | |
| 1.91 | 12.89 | 3.42 | 23.10 | -5.34 | 235.88 | 73.43 | 263.24 | 0.9622 | 467.4 | 270.9 | |
| 10.62 | 27.87 | 16.10 | 41.95 | -4.91 | 232.86 | 70.40 | 263.36 | 0.9464 | -479.7 | -333.8 | |
| 2.00 | 8.26 | 2.98 | 12.30 | -5.63 | 232.50 | 70.04 | 262.56 | 0.9447 | -550.9 | -402.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
