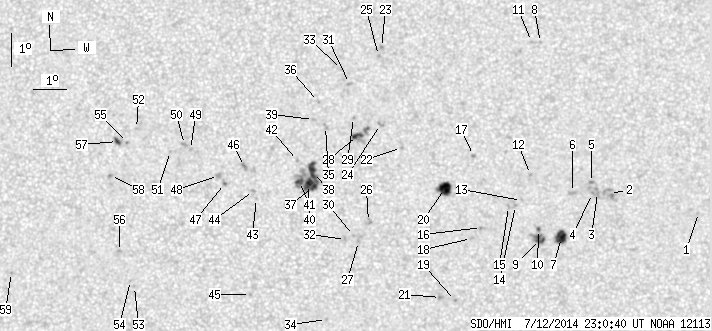

SDO HMI 2014-07-12 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.65 | 190.78 | 27.20 | 95.05 | 8.05 | 163.66 | 1.21 | 302.54 | 0.1013 | -329.9 | -188.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-12 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.13 | 173.29 | 10.83 | 286.18 | 0.1950 | -570.0 | -508.8 | |
| 0.00 | 7.72 | 0.00 | 3.87 | 7.75 | 170.53 | 8.07 | 294.78 | 0.1539 | -668.0 | -831.0 | |
| 0.00 | 3.99 | 0.00 | 2.00 | 7.78 | 170.16 | 7.70 | 296.01 | 0.1484 | -895.0 | -770.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.75 | 170.00 | 7.54 | 296.28 | 0.1457 | -926.0 | -806.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 8.09 | 169.98 | 7.52 | 298.41 | 0.1480 | -1027.0 | -776.7 | |
| 0.00 | 3.72 | 0.00 | 1.86 | 7.79 | 169.38 | 6.92 | 298.48 | 0.1365 | -932.0 | -699.2 | |
| 9.71 | 12.53 | 4.85 | 6.25 | 6.42 | 169.02 | 6.56 | 289.79 | 0.1213 | -1143.8 | -706.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.39 | 168.49 | 6.03 | 324.65 | 0.1780 | -825.0 | -590.0 | |
| 4.27 | 11.16 | 2.13 | 5.56 | 6.37 | 168.34 | 5.88 | 291.35 | 0.1099 | -1174.4 | -876.5 | |
| 0.73 | 2.36 | 0.36 | 1.18 | 6.67 | 168.32 | 5.86 | 294.01 | 0.1115 | -864.0 | -573.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.43 | 168.20 | 5.75 | 326.03 | 0.1757 | -779.0 | -549.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.35 | 168.09 | 5.63 | 307.44 | 0.1229 | -927.0 | -713.4 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.56 | 167.80 | 5.34 | 303.26 | 0.1109 | -641.0 | -581.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.41 | 167.62 | 5.16 | 303.01 | 0.1068 | -919.0 | -699.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.38 | 167.40 | 4.94 | 303.90 | 0.1034 | -878.0 | -720.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.75 | 166.56 | 4.10 | 303.06 | 0.0852 | -1054.0 | -832.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.94 | 166.34 | 3.88 | 321.66 | 0.1083 | 1010.0 | 796.8 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.41 | 166.25 | 3.79 | 301.58 | 0.0775 | -895.0 | -719.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 4.53 | 165.75 | 3.29 | 277.43 | 0.0579 | 970.0 | 769.0 | |
| 11.53 | 15.43 | 5.73 | 7.67 | 7.94 | 165.43 | 2.98 | 322.50 | 0.0848 | -1213.0 | -813.3 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 4.62 | 165.29 | 2.83 | 280.43 | 0.0503 | 1179.0 | 938.9 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.20 | 164.12 | 1.66 | 342.16 | 0.0937 | -723.0 | -537.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.27 | 163.51 | 1.06 | 352.77 | 0.1438 | 937.0 | 767.1 | |
| 0.00 | 2.72 | 0.00 | 1.36 | 9.91 | 163.47 | 1.01 | 350.21 | 0.1030 | 871.0 | 718.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 12.02 | 163.42 | 0.96 | 353.20 | 0.1394 | 787.0 | 743.8 | |
| 0.00 | 3.09 | 0.00 | 1.53 | 6.94 | 163.09 | 0.63 | 347.48 | 0.0509 | -509.0 | -788.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.33 | 162.78 | 0.33 | 351.71 | 0.0395 | -1087.0 | -798.4 | |
| 3.72 | 13.52 | 1.85 | 6.73 | 9.57 | 162.76 | 0.30 | 356.87 | 0.0958 | 1085.5 | 560.5 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 10.12 | 162.64 | 0.18 | 358.31 | 0.1053 | 819.0 | 666.5 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.52 | 162.63 | 0.17 | 355.91 | 0.0424 | -881.0 | -747.8 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 11.16 | 162.52 | 0.06 | 359.54 | 0.1234 | 884.0 | 787.7 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 6.40 | 162.39 | -0.07 | 1.79 | 0.0402 | -817.0 | -603.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.59 | 162.27 | -0.19 | 1.43 | 0.1310 | 831.0 | 590.7 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 3.96 | 161.80 | -0.65 | 102.65 | 0.0117 | -979.0 | -706.2 | |
| 0.00 | 2.81 | 0.00 | 1.40 | 9.85 | 161.77 | -0.69 | 6.73 | 0.1012 | -741.0 | -660.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 10.61 | 161.55 | -0.90 | 7.79 | 0.1149 | 591.0 | 449.3 | |
| 3.27 | 45.93 | 1.62 | 22.82 | 8.01 | 161.40 | -1.05 | 14.97 | 0.0709 | -1120.9 | -590.2 | |
| 9.35 | -37.00 | 4.65 | -37.00 | 8.44 | 161.40 | -1.06 | 13.55 | 0.0781 | -1121.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.06 | 161.40 | -1.06 | 9.94 | 0.1058 | -815.0 | -617.0 | |
| 7.26 | -37.00 | 3.61 | -37.00 | 8.07 | 161.25 | -1.21 | 16.79 | 0.0726 | -1244.3 | 999999 | |
| 2.90 | -37.00 | 1.44 | -37.00 | 8.16 | 160.97 | -1.49 | 19.92 | 0.0757 | -1045.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.81 | 160.91 | -1.55 | 18.05 | 0.0866 | -850.0 | -582.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.64 | 159.65 | -2.81 | 38.14 | 0.0789 | -781.0 | -498.6 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 7.89 | 159.56 | -2.90 | 37.19 | 0.0833 | -913.0 | -707.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.72 | 159.48 | -2.98 | 78.24 | 0.0531 | 892.0 | 652.6 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 8.62 | 159.28 | -3.18 | 34.85 | 0.0965 | 1098.0 | 859.7 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 8.10 | 158.66 | -3.80 | 43.19 | 0.0962 | 942.0 | 708.4 | |
| 0.00 | 3.18 | 0.00 | 1.58 | 8.34 | 158.48 | -3.98 | 42.86 | 0.1015 | 1033.0 | 771.7 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.13 | 157.60 | -4.86 | 43.56 | 0.1218 | 817.0 | 638.0 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 9.29 | 157.41 | -5.04 | 43.78 | 0.1260 | 915.0 | 798.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 9.07 | 156.98 | -5.47 | 47.33 | 0.1287 | 823.0 | 652.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.77 | 155.92 | -6.54 | 48.57 | 0.1504 | 948.0 | 623.2 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 4.94 | 155.92 | -6.54 | 82.41 | 0.1150 | 819.0 | 632.3 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 5.13 | 155.80 | -6.66 | 81.00 | 0.1175 | 878.0 | 670.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.34 | 155.64 | -6.81 | 51.94 | 0.1494 | 902.0 | 775.6 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 6.01 | 155.45 | -7.01 | 74.47 | 0.1266 | 736.0 | 642.5 | |
| 1.91 | 3.27 | 0.96 | 1.64 | 9.36 | 155.33 | -7.13 | 53.01 | 0.1539 | 1200.1 | 962.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.32 | 155.13 | -7.32 | 59.56 | 0.1470 | 1007.0 | 878.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 5.34 | 152.11 | -10.35 | 82.79 | 0.1811 | 917.0 | 704.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
