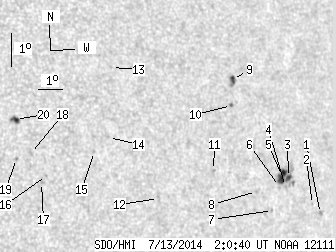

SDO HMI 2014-07-13 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.79 | 52.04 | 10.86 | 35.41 | 6.66 | 204.00 | 43.20 | 275.45 | 0.6838 | -108.6 | -56.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.39 | 4.84 | 208.02 | 47.22 | 272.78 | 0.7345 | -512.0 | -474.3 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 5.13 | 207.69 | 46.88 | 273.17 | 0.7304 | -538.0 | -455.3 | |
| 2.27 | 22.88 | 1.61 | 16.22 | 6.01 | 206.71 | 45.91 | 274.37 | 0.7186 | -627.8 | -356.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 5.74 | 206.55 | 45.74 | 274.00 | 0.7167 | -541.0 | -499.1 | |
| 7.99 | -3.00 | 5.65 | -3.00 | 6.05 | 206.45 | 45.65 | 274.44 | 0.7155 | -841.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 5.76 | 206.29 | 45.48 | 274.02 | 0.7135 | -529.0 | -468.0 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 5.04 | 205.91 | 45.11 | 273.01 | 0.7089 | -475.0 | -403.9 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 5.66 | 205.28 | 44.47 | 273.87 | 0.7010 | -613.0 | -474.3 | |
| 2.54 | 5.45 | 1.75 | 3.74 | 9.12 | 204.69 | 43.88 | 278.87 | 0.6950 | 646.4 | 495.8 | |
| 0.45 | 1.54 | 0.31 | 1.06 | 8.33 | 204.53 | 43.72 | 277.74 | 0.6925 | 626.8 | 504.3 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 6.39 | 203.52 | 42.72 | 274.95 | 0.6790 | -750.0 | -651.3 | |
| 0.00 | 2.36 | 0.00 | 1.53 | 5.64 | 201.19 | 40.39 | 273.86 | 0.6486 | 525.0 | 482.3 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 9.72 | 199.77 | 38.97 | 280.36 | 0.6324 | 641.0 | 444.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 7.59 | 199.39 | 38.58 | 277.01 | 0.6251 | 614.0 | 542.1 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 7.19 | 198.80 | 37.99 | 276.41 | 0.6168 | 712.0 | 604.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 6.54 | 196.89 | 36.08 | 275.45 | 0.5900 | 540.0 | 455.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 6.34 | 196.68 | 35.88 | 275.11 | 0.5869 | 669.0 | 586.8 | |
| 0.00 | 1.91 | 0.00 | 1.16 | 7.24 | 196.34 | 35.54 | 276.68 | 0.5827 | 561.0 | 472.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 7.11 | 195.80 | 35.00 | 276.50 | 0.5750 | -618.0 | -532.2 | |
| 2.54 | 4.63 | 1.54 | 2.80 | 8.30 | 195.88 | 35.07 | 278.57 | 0.5772 | 784.5 | 644.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
