SDO HMI 2014-07-13 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.96 | 194.85 | 22.88 | 97.21 | 8.16 | 163.39 | 2.59 | 305.31 | 0.1099 | -364.6 | -165.0 | |
|
previous
or next observation for the same group /

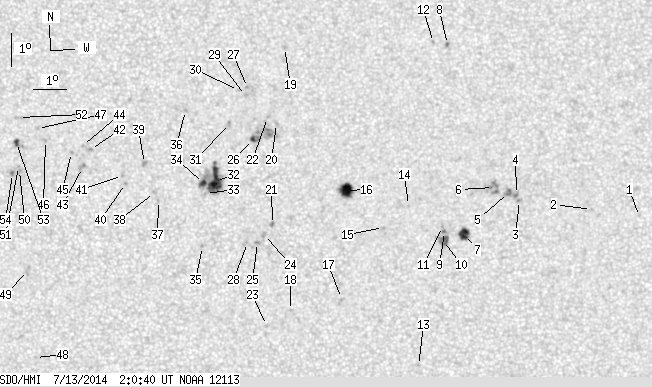

back to the solar disc SDO HMI 2014-07-13 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.37 | 7.02 | 174.62 | 13.81 | 282.49 | 0.2438 | -628.0 | -426.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.26 | 173.11 | 12.30 | 284.90 | 0.2197 | -744.0 | -550.5 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 7.56 | 170.86 | 10.06 | 289.43 | 0.1844 | -860.0 | -670.4 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 7.75 | 170.77 | 9.97 | 290.54 | 0.1840 | -820.0 | -802.5 | |
| 0.00 | 4.09 | 0.00 | 2.06 | 7.81 | 170.53 | 9.72 | 291.33 | 0.1804 | -993.0 | -897.4 | |
| 0.00 | 11.08 | 0.00 | 5.57 | 7.97 | 170.06 | 9.26 | 293.12 | 0.1740 | -735.0 | -854.0 | |
| 7.99 | 10.44 | 4.00 | 5.23 | 6.55 | 169.13 | 8.33 | 286.65 | 0.1508 | -1129.4 | -716.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.37 | 168.75 | 7.94 | 316.87 | 0.1983 | -963.0 | -852.7 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 6.65 | 168.51 | 7.71 | 288.52 | 0.1411 | -1039.0 | -847.6 | |
| 0.00 | 9.26 | 0.00 | 4.63 | 6.37 | 168.48 | 7.67 | 286.72 | 0.1392 | -1277.0 | -963.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.80 | 168.45 | 7.65 | 289.69 | 0.1410 | -749.0 | -631.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.44 | 168.31 | 7.50 | 318.70 | 0.1941 | -842.0 | -659.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 2.57 | 167.66 | 6.86 | 257.44 | 0.1228 | -836.0 | -627.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 7.45 | 167.41 | 6.61 | 297.14 | 0.1288 | -820.0 | -663.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.79 | 166.63 | 5.83 | 294.91 | 0.1116 | -767.0 | -643.3 | |
| 12.08 | 16.53 | 6.02 | 8.23 | 7.93 | 165.50 | 4.70 | 309.33 | 0.1054 | -1189.2 | -796.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 4.63 | 165.32 | 4.51 | 276.61 | 0.0793 | 555.0 | 582.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.28 | 163.75 | 2.95 | 273.05 | 0.0516 | -814.0 | -584.2 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 12.32 | 163.64 | 2.83 | 341.29 | 0.1512 | 955.0 | 748.8 | |
| 0.00 | 2.63 | 0.00 | 1.31 | 9.99 | 163.36 | 2.56 | 336.71 | 0.1117 | 815.0 | 598.6 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 6.90 | 163.22 | 2.41 | 319.24 | 0.0643 | -1136.0 | -829.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.17 | 163.09 | 2.28 | 339.60 | 0.1129 | 707.0 | 531.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 3.82 | 163.02 | 2.21 | 262.28 | 0.0391 | -878.0 | -649.2 | |
| 0.00 | 3.00 | 0.00 | 1.49 | 6.60 | 162.97 | 2.16 | 319.00 | 0.0575 | -820.0 | -735.6 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 6.35 | 162.75 | 1.95 | 319.03 | 0.0518 | -1091.0 | -867.0 | |
| 1.82 | 24.24 | 0.90 | 12.08 | 9.50 | 162.65 | 1.84 | 341.28 | 0.0994 | 1105.0 | 490.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.09 | 162.47 | 1.67 | 346.75 | 0.1252 | 950.0 | 811.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.35 | 162.45 | 1.64 | 323.81 | 0.0484 | -757.0 | -729.7 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 10.85 | 162.41 | 1.61 | 346.78 | 0.1208 | 850.0 | 727.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.00 | 162.19 | 1.39 | 348.76 | 0.1226 | 840.0 | 658.5 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 9.99 | 161.91 | 1.10 | 349.48 | 0.1044 | -846.0 | -750.6 | |
| 18.98 | 42.49 | 9.43 | 21.11 | 8.22 | 161.47 | 0.67 | 350.84 | 0.0726 | -1150.6 | -557.9 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.85 | 161.16 | 0.36 | 354.57 | 0.0656 | -682.0 | -486.3 | |
| 3.00 | -32.00 | 1.49 | -32.00 | 8.16 | 161.10 | 0.30 | 355.83 | 0.0708 | -967.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.24 | 161.07 | 0.26 | 352.95 | 0.0373 | -927.0 | -761.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.39 | 160.55 | -0.26 | 2.31 | 0.1097 | -933.0 | -765.5 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.64 | 159.72 | -1.09 | 17.06 | 0.0644 | -824.0 | -618.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.88 | 159.59 | -1.21 | 17.71 | 0.0691 | -842.0 | -651.0 | |
| 0.00 | 2.54 | 0.00 | 1.26 | 8.77 | 159.28 | -1.52 | 17.95 | 0.0855 | 1026.0 | 852.9 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.16 | 158.70 | -2.10 | 27.32 | 0.0796 | 972.0 | 798.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.40 | 158.61 | -2.20 | 26.95 | 0.0841 | 876.0 | 638.6 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 9.20 | 157.61 | -3.19 | 31.84 | 0.1046 | 865.0 | 749.7 | |
| 0.00 | 3.90 | 0.00 | 1.94 | 8.64 | 157.37 | -3.43 | 36.88 | 0.0991 | 822.0 | 815.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.32 | 157.37 | -3.44 | 33.15 | 0.1087 | 833.0 | 590.5 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.10 | 157.03 | -3.78 | 36.82 | 0.1090 | 861.0 | 612.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.47 | 156.22 | -4.59 | 40.21 | 0.1227 | 1005.0 | 809.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 9.83 | 155.97 | -4.84 | 39.82 | 0.1304 | 860.0 | 631.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 2.85 | 155.96 | -4.84 | 104.68 | 0.0876 | 775.0 | 551.9 | |
| 0.00 | 3.90 | 0.00 | 1.94 | 5.50 | 155.70 | -5.10 | 74.72 | 0.0922 | 640.0 | 599.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.54 | 155.43 | -5.38 | 50.16 | 0.1213 | 1003.0 | 880.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.67 | 155.39 | -5.41 | 49.55 | 0.1231 | 772.0 | 589.5 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 10.17 | 155.37 | -5.43 | 41.45 | 0.1414 | 608.0 | 554.6 | |
| 2.09 | 3.27 | 1.04 | 1.63 | 9.40 | 155.32 | -5.48 | 45.63 | 0.1325 | 1086.0 | 901.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 8.45 | 155.21 | -5.59 | 51.84 | 0.1232 | 1037.0 | 931.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
