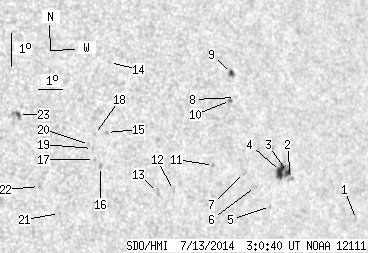

SDO HMI 2014-07-13 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.35 | 51.22 | 10.04 | 34.78 | 6.67 | 203.35 | 43.09 | 275.45 | 0.6825 | -1.1 | 83.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.97 | 4.41 | 209.75 | 49.49 | 272.27 | 0.7609 | -372.0 | -257.4 | |
| 0.00 | 2.45 | 0.00 | 1.76 | 5.79 | 206.85 | 46.60 | 274.07 | 0.7270 | -467.0 | -364.9 | |
| 2.91 | 16.44 | 2.08 | 11.75 | 6.01 | 206.74 | 46.49 | 274.37 | 0.7256 | -560.7 | -507.1 | |
| 7.26 | -3.00 | 5.18 | -3.00 | 6.06 | 206.44 | 46.18 | 274.44 | 0.7219 | -829.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 5.02 | 205.89 | 45.63 | 272.98 | 0.7154 | -297.0 | -257.4 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 5.66 | 205.29 | 45.04 | 273.88 | 0.7080 | -653.0 | -552.2 | |
| 0.00 | 1.73 | 0.00 | 1.20 | 6.11 | 204.86 | 44.61 | 274.52 | 0.7027 | -619.0 | -503.9 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 8.41 | 204.77 | 44.51 | 277.81 | 0.7023 | 489.0 | 527.3 | |
| 2.09 | 3.63 | 1.45 | 2.52 | 9.15 | 204.71 | 44.45 | 278.87 | 0.7021 | 631.3 | 413.0 | |
| 0.73 | 2.00 | 0.50 | 1.38 | 8.33 | 204.54 | 44.28 | 277.71 | 0.6994 | 595.1 | 400.3 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 6.39 | 203.57 | 43.31 | 274.94 | 0.6866 | -795.0 | -626.9 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 5.71 | 201.83 | 41.58 | 273.95 | 0.6642 | 487.0 | 438.8 | |
| 0.00 | 2.63 | 0.00 | 1.72 | 5.68 | 201.18 | 40.92 | 273.91 | 0.6556 | 315.0 | 394.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 9.73 | 199.71 | 39.45 | 280.30 | 0.6388 | 478.0 | 456.9 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 7.61 | 199.32 | 39.06 | 276.99 | 0.6316 | 664.0 | 582.7 | |
| 0.00 | 2.00 | 0.00 | 1.27 | 6.58 | 198.98 | 38.72 | 275.37 | 0.6264 | 646.0 | 532.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 6.80 | 198.76 | 38.51 | 275.74 | 0.6236 | 548.0 | 491.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 7.57 | 198.84 | 38.58 | 276.96 | 0.6251 | 584.0 | 488.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 7.14 | 198.72 | 38.46 | 276.29 | 0.6231 | 607.0 | 544.6 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 7.27 | 198.61 | 38.36 | 276.50 | 0.6218 | 698.0 | 594.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 5.22 | 197.27 | 37.01 | 273.20 | 0.6027 | 548.0 | 544.4 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 6.08 | 196.57 | 36.31 | 274.65 | 0.5930 | 725.0 | 603.0 | |
| 1.36 | 5.54 | 0.83 | 3.38 | 8.30 | 195.98 | 35.72 | 278.48 | 0.5863 | 759.3 | 638.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
