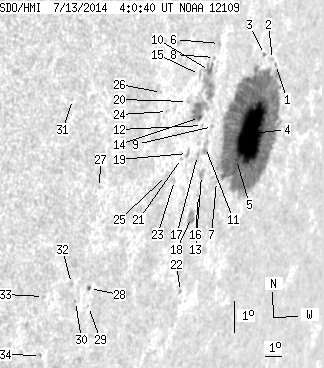

SDO HMI 2014-07-13 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.26 | 624.08 | 112.87 | 678.14 | -7.83 | 221.54 | 61.83 | 259.01 | 0.8913 | 588.9 | 250.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.25 | -5.83 | 223.35 | 63.64 | 261.50 | 0.9031 | 221.0 | 135.8 | |
| 0.00 | 1.63 | 0.00 | 1.85 | -5.66 | 223.11 | 63.40 | 261.66 | 0.9011 | -143.0 | -90.0 | |
| 0.45 | 1.27 | 0.50 | 1.41 | -5.47 | 222.52 | 62.82 | 261.79 | 0.8965 | -79.8 | -83.1 | |
| 97.54 | 511.29 | 108.17 | 566.49 | -7.89 | 222.13 | 62.42 | 259.05 | 0.8961 | 766.9 | 289.5 | |
| 0.27 | -4.00 | 0.30 | -4.00 | -8.65 | 221.41 | 61.70 | 258.08 | 0.8915 | 1223.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.83 | -4.93 | 219.54 | 59.83 | 261.94 | 0.8719 | -146.0 | -217.7 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -9.26 | 220.29 | 60.58 | 257.19 | 0.8836 | 384.0 | 352.2 | |
| 0.00 | 1.18 | 0.00 | 1.18 | -5.35 | 219.29 | 59.59 | 261.43 | 0.8703 | -222.0 | -169.1 | |
| 0.00 | 1.54 | 0.00 | 1.57 | -7.50 | 219.59 | 59.88 | 259.04 | 0.8755 | 478.0 | 341.4 | |
| 1.73 | 33.60 | 1.72 | 33.48 | -5.74 | 219.05 | 59.35 | 260.95 | 0.8687 | -456.8 | -191.1 | |
| 0.00 | 7.45 | 0.00 | 7.54 | -8.14 | 219.31 | 59.60 | 258.27 | 0.8740 | 545.0 | 474.4 | |
| 0.00 | 0.73 | 0.00 | 0.73 | -7.43 | 218.96 | 59.25 | 259.00 | 0.8701 | 449.0 | 432.2 | |
| 0.00 | 4.81 | 0.00 | 4.89 | -9.01 | 219.28 | 59.58 | 257.28 | 0.8751 | 75.0 | 50.3 | |
| 1.54 | 22.61 | 1.53 | 22.33 | -7.17 | 218.72 | 59.02 | 259.26 | 0.8677 | 784.6 | 533.6 | |
| 0.00 | 2.91 | 0.00 | 2.84 | -5.82 | 218.47 | 58.76 | 260.76 | 0.8638 | -317.0 | -309.1 | |
| 0.00 | 0.64 | 0.00 | 0.65 | -9.60 | 219.26 | 59.56 | 256.61 | 0.8758 | 258.0 | 256.3 | |
| 0.00 | 2.09 | 0.00 | 2.09 | -8.36 | 218.87 | 59.17 | 257.94 | 0.8707 | 137.0 | 135.3 | |
| 0.00 | 7.99 | 0.00 | 8.12 | -10.30 | 219.04 | 59.34 | 255.77 | 0.8751 | 563.0 | 473.5 | |
| 0.00 | 3.00 | 0.00 | 2.94 | -8.26 | 218.25 | 58.54 | 257.93 | 0.8652 | -286.0 | -230.7 | |
| 0.00 | 1.09 | 0.00 | 1.05 | -6.62 | 217.90 | 58.19 | 259.74 | 0.8599 | -195.0 | -49.3 | |
| 0.00 | 1.09 | 0.00 | 1.06 | -8.39 | 217.92 | 58.22 | 257.71 | 0.8627 | -463.0 | -404.4 | |
| 0.00 | 1.63 | 0.00 | 1.69 | -12.64 | 219.17 | 59.47 | 253.18 | 0.8799 | -523.0 | -404.1 | |
| 0.00 | 1.09 | 0.00 | 1.06 | -9.06 | 217.68 | 57.97 | 256.90 | 0.8616 | -523.0 | -418.5 | |
| 0.00 | 1.36 | 0.00 | 1.27 | -6.86 | 216.79 | 57.08 | 259.26 | 0.8504 | -360.0 | -271.3 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -8.87 | 217.16 | 57.46 | 257.01 | 0.8568 | -488.0 | -430.8 | |
| 0.00 | 0.64 | 0.00 | 0.59 | -6.25 | 216.34 | 56.63 | 259.90 | 0.8454 | -472.0 | -447.7 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -9.02 | 213.51 | 53.80 | 256.01 | 0.8235 | -487.0 | -429.9 | |
| 0.73 | 1.63 | 0.65 | 1.45 | -12.21 | 213.80 | 54.09 | 252.32 | 0.8330 | 526.6 | 491.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -12.79 | 213.92 | 54.22 | 251.68 | 0.8355 | 154.0 | 199.0 | |
| 0.00 | 0.91 | 0.00 | 0.80 | -12.58 | 213.17 | 53.46 | 251.71 | 0.8280 | 577.0 | 448.8 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -6.18 | 211.62 | 51.92 | 259.04 | 0.7993 | -429.0 | -355.5 | |
| 0.00 | 2.00 | 0.00 | 1.73 | -11.99 | 212.79 | 53.08 | 252.30 | 0.8230 | 145.0 | 169.1 | |
| 0.00 | 1.63 | 0.00 | 1.38 | -12.32 | 211.44 | 51.73 | 251.51 | 0.8110 | -184.0 | -323.8 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -14.22 | 211.86 | 52.15 | 249.38 | 0.8200 | -469.0 | -406.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
