SDO HMI 2014-07-13 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.77 | 197.77 | 24.34 | 98.87 | 8.24 | 163.74 | 4.04 | 273.28 | 0.1235 | -469.9 | -163.3 | |
|
previous
or next observation for the same group /

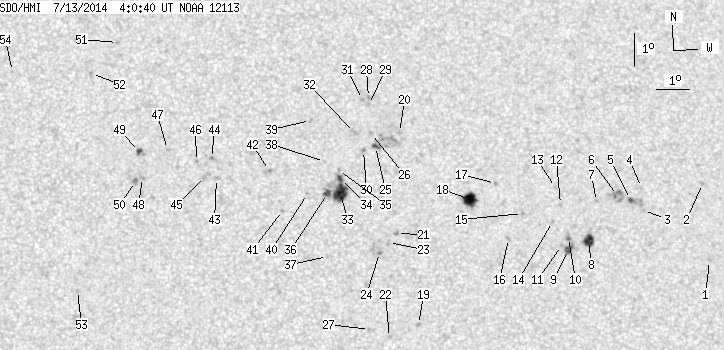

back to the solar disc SDO HMI 2014-07-13 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.97 | 172.95 | 13.25 | 278.46 | 0.2314 | -761.0 | -593.1 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 8.32 | 172.80 | 13.10 | 288.46 | 0.2374 | -835.0 | -664.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 7.53 | 170.92 | 11.22 | 287.42 | 0.2030 | -806.0 | -535.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.23 | 170.88 | 11.17 | 290.77 | 0.2060 | -711.0 | -535.6 | |
| 1.27 | 9.35 | 0.64 | 4.73 | 7.87 | 170.52 | 10.82 | 289.65 | 0.1983 | -1030.9 | -728.0 | |
| 0.00 | 12.90 | 0.00 | 6.51 | 8.00 | 170.12 | 10.41 | 290.94 | 0.1925 | -810.0 | -817.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.82 | 169.46 | 9.75 | 291.27 | 0.1809 | -827.0 | -715.0 | |
| 7.81 | 9.81 | 3.93 | 4.93 | 6.64 | 169.18 | 9.48 | 285.25 | 0.1703 | -1126.3 | -755.7 | |
| 3.27 | 7.72 | 1.64 | 3.87 | 6.37 | 168.56 | 8.85 | 284.60 | 0.1587 | -1117.1 | -755.0 | |
| 0.00 | 3.45 | 0.00 | 1.73 | 6.74 | 168.56 | 8.86 | 286.81 | 0.1605 | -1018.0 | -825.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.50 | 168.34 | 8.64 | 285.71 | 0.1557 | -822.0 | -694.7 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.75 | 168.34 | 8.63 | 293.21 | 0.1625 | -898.0 | -680.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.27 | 168.19 | 8.49 | 296.50 | 0.1639 | -826.0 | -604.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.23 | 168.08 | 8.37 | 290.75 | 0.1551 | -767.0 | -575.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.49 | 167.15 | 7.45 | 294.66 | 0.1420 | -889.0 | -729.8 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 6.73 | 166.70 | 7.00 | 290.69 | 0.1299 | -986.0 | -707.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.41 | 166.33 | 6.63 | 303.30 | 0.1372 | -887.0 | -711.7 | |
| 12.81 | 15.53 | 6.39 | 7.75 | 7.93 | 165.52 | 5.81 | 303.53 | 0.1209 | -1182.4 | -775.2 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 4.13 | 163.91 | 4.20 | 270.03 | 0.0734 | -1068.0 | -761.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.99 | 163.38 | 3.67 | 328.28 | 0.1206 | 825.0 | 639.9 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 6.91 | 163.26 | 3.55 | 308.24 | 0.0786 | -1073.0 | -867.0 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 3.74 | 163.02 | 3.31 | 263.22 | 0.0583 | -870.0 | -710.4 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 6.63 | 163.01 | 3.30 | 307.35 | 0.0723 | -801.0 | -721.2 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 6.33 | 162.73 | 3.02 | 306.19 | 0.0652 | -1007.0 | -878.3 | |
| 1.45 | 25.61 | 0.72 | 12.77 | 9.57 | 162.63 | 2.93 | 332.00 | 0.1078 | 1123.8 | 513.4 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 9.97 | 162.51 | 2.81 | 334.61 | 0.1130 | 898.0 | 742.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 3.98 | 162.41 | 2.70 | 266.85 | 0.0473 | -830.0 | -572.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.07 | 162.43 | 2.73 | 338.88 | 0.1301 | 948.0 | 780.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.86 | 162.43 | 2.72 | 338.27 | 0.1266 | 913.0 | 775.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.45 | 162.26 | 2.55 | 334.60 | 0.1030 | -713.0 | -591.9 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 11.01 | 162.24 | 2.54 | 340.04 | 0.1279 | 922.0 | 717.5 | |
| 0.00 | 3.81 | 0.00 | 1.90 | 10.00 | 161.99 | 2.28 | 339.01 | 0.1099 | -755.0 | -408.7 | |
| 15.71 | 36.60 | 7.81 | 18.19 | 8.17 | 161.54 | 1.84 | 335.71 | 0.0775 | -1168.0 | -575.4 | |
| 2.00 | -33.00 | 0.99 | -33.00 | 8.59 | 161.54 | 1.84 | 337.80 | 0.0843 | -1104.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.84 | 161.48 | 1.78 | 339.49 | 0.0879 | -702.0 | -621.5 | |
| 2.82 | -33.00 | 1.40 | -33.00 | 8.14 | 161.14 | 1.44 | 340.43 | 0.0744 | -1026.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.21 | 161.13 | 1.43 | 325.67 | 0.0441 | -923.0 | -699.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.11 | 161.05 | 1.35 | 345.02 | 0.0902 | -649.0 | -412.5 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 10.37 | 160.63 | 0.92 | 351.72 | 0.1102 | -862.0 | -737.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.14 | 160.53 | 0.82 | 348.52 | 0.0715 | -770.0 | -548.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 7.62 | 159.76 | 0.05 | 359.19 | 0.0610 | -859.0 | -639.2 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.84 | 159.36 | -0.35 | 4.20 | 0.0826 | 940.0 | 758.4 | |
| 0.00 | 2.36 | 0.00 | 1.17 | 8.60 | 157.72 | -1.98 | 23.74 | 0.0854 | 805.0 | 639.6 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 9.21 | 157.57 | -2.14 | 22.62 | 0.0962 | 926.0 | 782.7 | |
| 0.00 | 4.99 | 0.00 | 2.48 | 8.66 | 157.38 | -2.32 | 26.93 | 0.0889 | 1062.0 | 780.8 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 9.12 | 157.10 | -2.60 | 27.30 | 0.0982 | 815.0 | 626.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 9.48 | 156.20 | -3.50 | 32.86 | 0.1115 | 1027.0 | 752.4 | |
| 0.00 | 2.54 | 0.00 | 1.27 | 8.62 | 155.44 | -4.27 | 43.18 | 0.1080 | 1049.0 | 796.8 | |
| 1.63 | 4.72 | 0.82 | 2.36 | 9.42 | 155.34 | -4.37 | 39.18 | 0.1195 | 1053.9 | 836.7 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 8.50 | 155.22 | -4.48 | 45.38 | 0.1091 | 995.0 | 875.5 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.76 | 154.60 | -5.10 | 30.02 | 0.1742 | 870.0 | 635.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.80 | 153.81 | -5.90 | 36.96 | 0.1681 | 898.0 | 705.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 5.16 | 153.47 | -6.24 | 80.38 | 0.1102 | 929.0 | 667.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.84 | 151.33 | -8.38 | 46.61 | 0.1972 | 774.0 | 561.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
