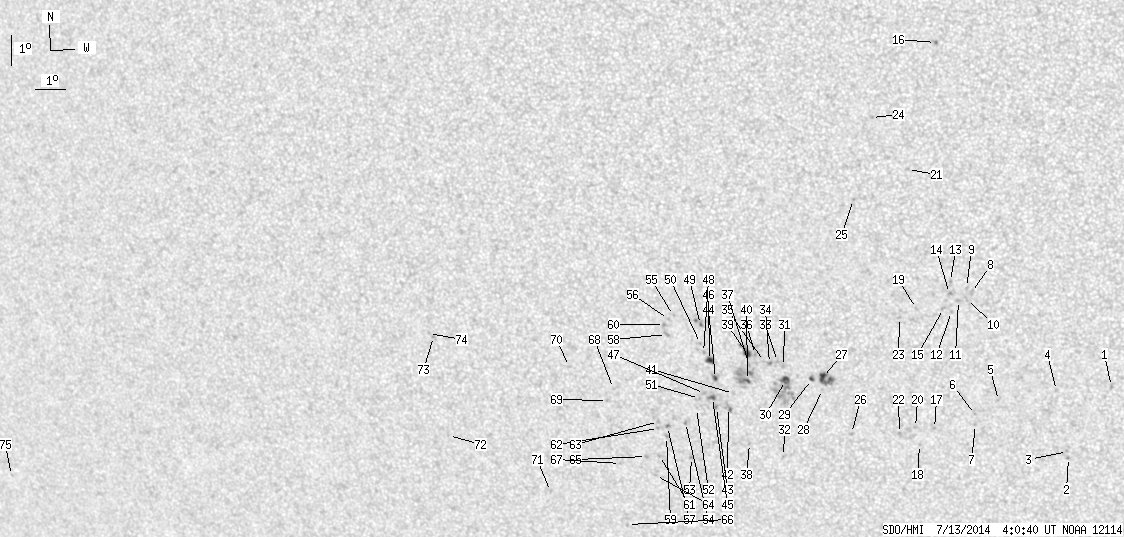

SDO HMI 2014-07-13 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.52 | 184.42 | 9.74 | 102.94 | -19.95 | 147.34 | -12.36 | 154.20 | 0.4580 | 44.4 | 97.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.33 | 158.59 | -1.12 | 177.46 | 0.4164 | 809.0 | 658.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.74 | 157.14 | -2.56 | 174.78 | 0.4557 | 743.0 | 629.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.53 | 157.11 | -2.59 | 174.68 | 0.4526 | 732.0 | 634.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.47 | 156.79 | -2.91 | 173.48 | 0.4208 | 676.0 | 484.3 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.81 | 154.89 | -4.81 | 169.46 | 0.4306 | 721.0 | 608.2 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -21.29 | 154.12 | -5.59 | 168.06 | 0.4403 | 703.0 | 502.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.63 | 154.11 | -5.60 | 168.20 | 0.4456 | 582.0 | 488.6 | |
| 0.00 | 2.72 | 0.00 | 1.46 | -17.23 | 154.13 | -5.57 | 165.71 | 0.3773 | 524.0 | 386.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -17.07 | 153.98 | -5.73 | 165.21 | 0.3754 | 599.0 | 575.6 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -17.46 | 153.97 | -5.74 | 165.46 | 0.3816 | 728.0 | 701.6 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -17.50 | 153.71 | -6.00 | 164.86 | 0.3832 | 831.0 | 658.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.86 | 153.47 | -6.24 | 164.55 | 0.3899 | 697.0 | 537.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.88 | 153.47 | -6.23 | 163.83 | 0.3746 | 894.0 | 693.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -17.27 | 153.43 | -6.28 | 164.02 | 0.3809 | 1124.0 | 891.4 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -17.77 | 153.22 | -6.49 | 163.89 | 0.3895 | 719.0 | 615.4 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -9.25 | 153.21 | -6.50 | 154.20 | 0.2578 | 932.0 | 796.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.77 | 152.75 | -6.96 | 165.54 | 0.4526 | 799.0 | 591.8 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.32 | 152.22 | -7.49 | 164.85 | 0.4629 | 619.0 | 537.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.77 | 152.35 | -7.36 | 161.87 | 0.3937 | 711.0 | 593.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.74 | 152.12 | -7.59 | 164.29 | 0.4547 | 741.0 | 622.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -13.27 | 152.23 | -7.48 | 157.01 | 0.3258 | 830.0 | 624.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.95 | 151.58 | -8.13 | 163.37 | 0.4602 | 790.0 | 540.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.07 | 151.78 | -7.92 | 160.85 | 0.4012 | 775.0 | 638.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.63 | 151.15 | -8.56 | 151.71 | 0.3090 | 728.0 | 535.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -14.25 | 150.48 | -9.23 | 153.70 | 0.3524 | 855.0 | 653.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.97 | 149.98 | -9.73 | 160.36 | 0.4681 | 637.0 | 547.6 | |
| 3.81 | 13.80 | 2.11 | 7.63 | -20.09 | 149.15 | -10.56 | 157.20 | 0.4458 | 1002.7 | 798.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.50 | 149.12 | -10.59 | 157.51 | 0.4517 | 460.0 | 360.8 | |
| 1.00 | 2.18 | 0.55 | 1.21 | -20.16 | 148.78 | -10.93 | 156.56 | 0.4491 | 821.6 | 686.5 | |
| 3.54 | 31.06 | 1.97 | 17.32 | -20.21 | 147.92 | -11.79 | 154.98 | 0.4552 | 904.8 | 291.2 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -19.74 | 147.89 | -11.82 | 154.45 | 0.4489 | 839.0 | 700.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.78 | 147.63 | -12.08 | 156.86 | 0.4928 | 640.0 | 530.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.58 | 147.70 | -12.01 | 153.94 | 0.4479 | 869.0 | 715.6 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -19.65 | 147.43 | -12.28 | 153.51 | 0.4508 | 920.0 | 735.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -19.59 | 147.27 | -12.44 | 153.14 | 0.4510 | 715.0 | 604.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -19.36 | 146.99 | -12.72 | 152.38 | 0.4499 | 872.0 | 756.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -19.73 | 146.76 | -12.95 | 152.37 | 0.4566 | 167.0 | 189.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.36 | 146.52 | -13.19 | 154.60 | 0.4939 | -800.0 | -588.5 | |
| 2.72 | 8.36 | 1.51 | 4.63 | -19.33 | 146.73 | -12.98 | 151.87 | 0.4514 | 889.6 | 708.5 | |
| 1.00 | 19.89 | 0.56 | 11.10 | -20.23 | 146.65 | -13.06 | 152.71 | 0.4642 | 694.2 | 311.5 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.67 | 146.14 | -13.56 | 152.29 | 0.4738 | -635.0 | -411.6 | |
| 0.00 | 4.63 | 0.00 | 2.62 | -21.15 | 145.93 | -13.78 | 152.42 | 0.4816 | -765.0 | -637.8 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -21.15 | 145.52 | -14.18 | 151.75 | 0.4846 | -936.0 | -739.4 | |
| 1.27 | 3.72 | 0.71 | 2.09 | -20.18 | 145.58 | -14.12 | 150.80 | 0.4713 | -793.9 | -548.3 | |
| 0.91 | 3.72 | 0.51 | 2.10 | -20.82 | 145.42 | -14.28 | 151.22 | 0.4810 | -1038.3 | -850.3 | |
| 2.91 | 4.54 | 1.62 | 2.54 | -19.58 | 145.44 | -14.27 | 149.88 | 0.4645 | -874.0 | -626.7 | |
| 0.00 | 2.36 | 0.00 | 1.33 | -20.69 | 145.17 | -14.54 | 150.65 | 0.4812 | -887.0 | -655.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -19.32 | 145.26 | -14.44 | 149.27 | 0.4625 | -809.0 | -659.1 | |
| 0.36 | 5.45 | 0.20 | 3.02 | -18.39 | 145.25 | -14.46 | 148.12 | 0.4505 | -998.2 | -788.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.02 | 145.19 | -14.52 | 148.79 | 0.4592 | -863.0 | -688.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.86 | 144.98 | -14.73 | 150.53 | 0.4848 | -870.0 | -697.3 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -21.20 | 144.84 | -14.86 | 150.68 | 0.4902 | -632.0 | -496.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.87 | 144.49 | -15.22 | 151.84 | 0.5145 | -806.0 | -769.4 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -21.68 | 144.42 | -15.29 | 150.51 | 0.4996 | -919.0 | -768.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -18.11 | 144.38 | -15.33 | 146.26 | 0.4543 | -859.0 | -693.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -18.25 | 144.20 | -15.51 | 146.13 | 0.4575 | -745.0 | -544.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.83 | 143.79 | -15.92 | 149.68 | 0.5063 | -1011.0 | -878.6 | |
| 0.00 | 2.82 | 0.00 | 1.57 | -18.74 | 144.08 | -15.62 | 146.57 | 0.4648 | -872.0 | -697.6 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -22.17 | 143.71 | -15.99 | 149.93 | 0.5112 | -956.0 | -662.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.41 | 144.05 | -15.66 | 146.09 | 0.4609 | -876.0 | -703.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.83 | 143.39 | -16.31 | 150.13 | 0.5218 | -458.0 | -523.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.90 | 143.47 | -16.23 | 149.27 | 0.5096 | -758.0 | -567.5 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -21.67 | 143.50 | -16.21 | 149.06 | 0.5064 | -910.0 | -664.2 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -23.52 | 143.17 | -16.54 | 150.50 | 0.5322 | -584.0 | -513.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.87 | 142.94 | -16.77 | 149.50 | 0.5258 | -771.0 | -680.7 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -25.24 | 141.94 | -17.77 | 150.48 | 0.5623 | -399.0 | -398.7 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -23.13 | 142.00 | -17.70 | 148.42 | 0.5361 | -710.0 | -592.4 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -20.58 | 142.09 | -17.61 | 145.68 | 0.5045 | -673.0 | -657.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.99 | 141.84 | -17.87 | 145.79 | 0.5116 | -706.0 | -544.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -19.88 | 140.67 | -19.03 | 142.75 | 0.5087 | -520.0 | -430.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -24.16 | 139.38 | -20.33 | 146.00 | 0.5689 | -727.0 | -480.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -22.33 | 136.05 | -23.66 | 139.85 | 0.5778 | -498.0 | -331.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -19.00 | 136.07 | -23.64 | 135.62 | 0.5440 | -853.0 | -677.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -18.91 | 135.91 | -23.80 | 135.30 | 0.5448 | -632.0 | -464.0 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -24.41 | 118.13 | -41.57 | 127.37 | 0.7625 | -511.0 | -455.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
