SDO HMI 2014-07-13 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.27 | 615.25 | 107.15 | 681.16 | -7.80 | 221.64 | 62.48 | 259.14 | 0.8962 | 602.2 | 254.6 | |
|
previous
or next observation for the same group /

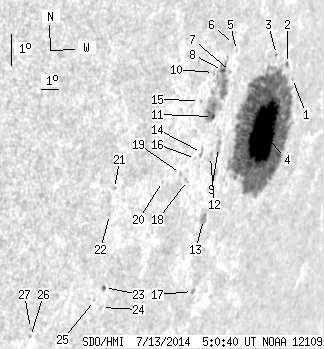

back to the solar disc SDO HMI 2014-07-13 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.30 | -6.30 | 223.83 | 64.67 | 261.14 | 0.9110 | 245.0 | 232.3 | |
| 0.00 | 2.00 | 0.00 | 2.33 | -5.80 | 223.36 | 64.20 | 261.61 | 0.9072 | 131.0 | 161.9 | |
| 0.00 | 0.91 | 0.00 | 1.03 | -5.47 | 222.52 | 63.37 | 261.86 | 0.9007 | -129.0 | -85.6 | |
| 91.64 | 508.16 | 103.56 | 573.28 | -7.89 | 222.19 | 63.04 | 259.14 | 0.9007 | 780.9 | 291.5 | |
| 0.00 | 0.73 | 0.00 | 0.75 | -5.17 | 219.84 | 60.68 | 261.80 | 0.8792 | -237.0 | -162.5 | |
| 0.00 | 2.54 | 0.00 | 2.60 | -4.97 | 219.62 | 60.46 | 261.99 | 0.8772 | -305.0 | -212.5 | |
| 0.00 | 1.18 | 0.00 | 1.21 | -5.80 | 219.57 | 60.41 | 261.05 | 0.8777 | -297.0 | -308.5 | |
| 1.54 | 33.42 | 1.56 | 33.84 | -5.74 | 219.06 | 59.90 | 261.04 | 0.8734 | -489.7 | -220.1 | |
| 0.00 | 6.54 | 0.00 | 6.74 | -8.14 | 219.32 | 60.16 | 258.37 | 0.8786 | 514.0 | 466.1 | |
| 0.00 | 2.09 | 0.00 | 2.08 | -5.76 | 218.51 | 59.35 | 260.92 | 0.8688 | -436.0 | -361.1 | |
| 1.45 | 29.15 | 1.46 | 29.25 | -7.14 | 218.72 | 59.56 | 259.39 | 0.8723 | 809.1 | 501.2 | |
| 0.00 | 3.63 | 0.00 | 3.70 | -8.39 | 218.88 | 59.73 | 258.00 | 0.8754 | 127.0 | 134.2 | |
| 0.00 | 6.72 | 0.00 | 6.94 | -10.37 | 219.01 | 59.85 | 255.80 | 0.8794 | 585.0 | 491.3 | |
| 0.00 | 2.82 | 0.00 | 2.81 | -8.23 | 218.29 | 59.14 | 258.07 | 0.8703 | -218.0 | -170.8 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -6.59 | 217.82 | 58.66 | 259.86 | 0.8639 | -76.0 | -122.0 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -8.40 | 217.97 | 58.82 | 257.82 | 0.8678 | -395.0 | -374.0 | |
| 0.00 | 2.27 | 0.00 | 2.39 | -12.64 | 219.13 | 59.97 | 253.29 | 0.8839 | -453.0 | -356.0 | |
| 0.00 | 0.64 | 0.00 | 0.63 | -9.06 | 217.66 | 58.50 | 257.00 | 0.8662 | -472.0 | -436.1 | |
| 0.00 | 1.73 | 0.00 | 1.67 | -8.81 | 217.19 | 58.03 | 257.19 | 0.8617 | -502.0 | -465.3 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -9.00 | 216.19 | 57.03 | 256.77 | 0.8533 | -289.0 | -257.3 | |
| 0.00 | 1.18 | 0.00 | 1.04 | -9.06 | 213.55 | 54.39 | 256.11 | 0.8292 | -590.0 | -524.0 | |
| 0.00 | 1.18 | 0.00 | 1.04 | -9.86 | 213.47 | 54.32 | 255.14 | 0.8301 | -344.0 | -287.1 | |
| 0.64 | 1.63 | 0.57 | 1.48 | -12.18 | 213.84 | 54.68 | 252.51 | 0.8383 | 595.9 | 473.4 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -12.82 | 213.87 | 54.72 | 251.79 | 0.8401 | 374.0 | 310.7 | |
| 0.00 | 0.73 | 0.00 | 0.65 | -12.57 | 213.42 | 54.26 | 251.95 | 0.8353 | 504.0 | 459.4 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -13.53 | 210.38 | 51.22 | 249.91 | 0.8093 | -556.0 | -467.6 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -13.27 | 210.30 | 51.15 | 250.19 | 0.8078 | -432.0 | -401.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
