SDO HMI 2014-07-13 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.73 | 597.76 | 117.77 | 676.03 | -7.80 | 221.73 | 63.12 | 259.24 | 0.9010 | 655.7 | 250.5 | |
|
previous
or next observation for the same group /

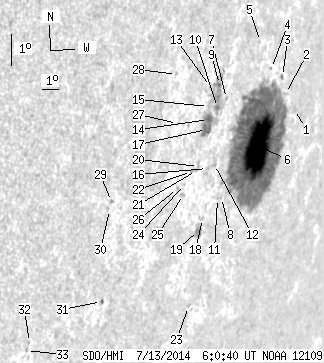

back to the solar disc SDO HMI 2014-07-13 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 3.19 | -6.87 | 224.55 | 65.94 | 260.69 | 0.9203 | -132.0 | -123.3 | |
| 0.00 | 1.00 | 0.00 | 1.21 | -6.32 | 223.73 | 65.12 | 261.17 | 0.9142 | 363.0 | 249.9 | |
| 0.64 | 1.82 | 0.76 | 2.16 | -5.78 | 223.39 | 64.78 | 261.72 | 0.9113 | 174.3 | 135.8 | |
| 0.00 | 1.09 | 0.00 | 1.26 | -5.47 | 222.54 | 63.93 | 261.93 | 0.9049 | -128.0 | -132.2 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -4.58 | 221.62 | 63.01 | 262.79 | 0.8971 | 192.0 | 241.0 | |
| 89.38 | 503.56 | 103.06 | 578.88 | -7.86 | 222.20 | 63.59 | 259.26 | 0.9048 | 877.0 | 293.5 | |
| 0.00 | 1.00 | 0.00 | 1.05 | -6.21 | 219.67 | 61.06 | 260.69 | 0.8835 | -298.0 | -259.1 | |
| 0.00 | 0.64 | 0.00 | 0.69 | -9.31 | 220.12 | 61.51 | 257.30 | 0.8909 | 427.0 | 432.3 | |
| 1.18 | 30.52 | 1.22 | 31.39 | -5.74 | 219.14 | 60.53 | 261.13 | 0.8786 | -481.1 | -207.8 | |
| 1.00 | -9.00 | 1.03 | -9.00 | -6.46 | 219.15 | 60.54 | 260.33 | 0.8795 | -290.5 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -9.33 | 219.86 | 61.25 | 257.24 | 0.8890 | 245.0 | 261.0 | |
| 0.00 | 2.36 | 0.00 | 2.48 | -8.24 | 219.37 | 60.76 | 258.36 | 0.8836 | 383.0 | 380.1 | |
| 0.00 | 1.18 | 0.00 | 1.19 | -5.77 | 218.58 | 59.97 | 261.01 | 0.8741 | -335.0 | -336.3 | |
| 4.09 | 22.98 | 4.17 | 23.46 | -6.80 | 218.65 | 60.04 | 259.86 | 0.8759 | 638.6 | 454.0 | |
| 0.00 | 1.09 | 0.00 | 1.11 | -6.39 | 218.57 | 59.96 | 260.31 | 0.8747 | 168.0 | 202.6 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -8.33 | 218.95 | 60.34 | 258.18 | 0.8803 | 155.0 | 156.6 | |
| 6.90 | -14.00 | 7.03 | -14.00 | -7.10 | 218.59 | 59.98 | 259.50 | 0.8758 | 663.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.34 | -9.90 | 219.08 | 60.47 | 256.45 | 0.8836 | 220.0 | 197.5 | |
| 0.00 | 9.36 | 0.00 | 9.79 | -10.27 | 218.94 | 60.33 | 256.01 | 0.8830 | 528.0 | 386.3 | |
| 0.00 | 1.45 | 0.00 | 1.48 | -8.23 | 218.36 | 59.75 | 258.18 | 0.8754 | -227.0 | -229.1 | |
| 0.00 | 0.73 | 0.00 | 0.74 | -8.35 | 218.27 | 59.66 | 258.03 | 0.8748 | -278.0 | -269.4 | |
| 0.00 | 1.00 | 0.00 | 1.01 | -8.36 | 217.97 | 59.36 | 257.96 | 0.8723 | -229.0 | -318.8 | |
| 0.00 | 1.27 | 0.00 | 1.36 | -12.68 | 219.17 | 60.56 | 253.38 | 0.8885 | -400.0 | -387.8 | |
| 0.00 | 0.82 | 0.00 | 0.82 | -8.75 | 217.64 | 59.03 | 257.46 | 0.8701 | -397.0 | -377.3 | |
| 0.00 | 1.73 | 0.00 | 1.73 | -9.06 | 217.66 | 59.05 | 257.11 | 0.8708 | -531.0 | -431.9 | |
| 0.00 | 0.91 | 0.00 | 0.90 | -8.85 | 217.24 | 58.63 | 257.27 | 0.8669 | -421.0 | -448.2 | |
| 0.00 | 1.09 | 0.00 | 1.05 | -6.80 | 216.78 | 58.17 | 259.53 | 0.8600 | -107.0 | -186.0 | |
| 0.00 | 1.18 | 0.00 | 1.12 | -5.27 | 216.47 | 57.86 | 261.25 | 0.8551 | -331.0 | -355.8 | |
| 0.00 | 1.27 | 0.00 | 1.14 | -9.02 | 213.54 | 54.93 | 256.27 | 0.8342 | -298.0 | -409.9 | |
| 0.00 | 0.64 | 0.00 | 0.57 | -9.27 | 213.49 | 54.88 | 255.97 | 0.8342 | -568.0 | -496.1 | |
| 0.54 | 1.63 | 0.50 | 1.50 | -12.18 | 213.84 | 55.23 | 252.66 | 0.8433 | 360.0 | 388.8 | |
| 0.00 | 0.91 | 0.00 | 0.77 | -13.27 | 210.37 | 51.76 | 250.38 | 0.8137 | -358.0 | -324.8 | |
| 0.00 | 1.27 | 0.00 | 1.08 | -13.52 | 210.29 | 51.68 | 250.06 | 0.8136 | -208.0 | -349.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
