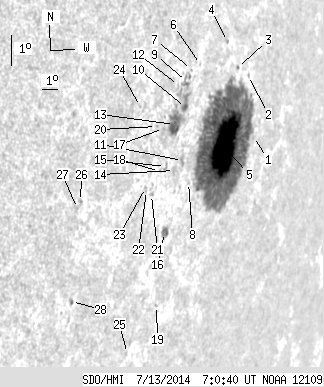

SDO HMI 2014-07-13 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.09 | 596.60 | 124.04 | 688.66 | -7.80 | 221.68 | 63.62 | 259.33 | 0.9047 | 679.2 | 230.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 2.42 | -7.69 | 224.25 | 66.18 | 259.84 | 0.9227 | -302.0 | -325.7 | |
| 0.00 | 1.00 | 0.00 | 1.21 | -5.75 | 223.36 | 65.30 | 261.82 | 0.9149 | 82.0 | 82.8 | |
| 0.00 | 1.27 | 0.00 | 1.50 | -5.44 | 222.49 | 64.43 | 262.03 | 0.9085 | -40.0 | -77.6 | |
| 0.00 | 1.09 | 0.00 | 1.24 | -4.58 | 221.63 | 63.57 | 262.86 | 0.9014 | 141.0 | 183.2 | |
| 93.01 | 503.95 | 109.42 | 591.68 | -7.86 | 222.15 | 64.09 | 259.34 | 0.9084 | 886.9 | 266.7 | |
| 0.00 | 0.82 | 0.00 | 0.88 | -5.18 | 219.91 | 61.85 | 261.96 | 0.8887 | -153.0 | -166.3 | |
| 0.00 | 0.91 | 0.00 | 0.96 | -5.30 | 219.35 | 61.28 | 261.75 | 0.8843 | -151.0 | -159.4 | |
| 0.00 | 0.91 | 0.00 | 0.99 | -8.84 | 219.97 | 61.90 | 257.90 | 0.8933 | 388.0 | 393.1 | |
| 0.00 | 9.63 | 0.00 | 10.08 | -5.65 | 219.09 | 61.03 | 261.31 | 0.8826 | -494.0 | -336.7 | |
| 1.82 | 14.53 | 1.91 | 15.22 | -6.46 | 219.18 | 61.12 | 260.41 | 0.8843 | -332.5 | -180.1 | |
| 0.00 | 4.00 | 0.00 | 4.27 | -8.12 | 219.37 | 61.31 | 258.59 | 0.8878 | 455.0 | 348.8 | |
| 0.00 | 1.54 | 0.00 | 1.59 | -5.74 | 218.60 | 60.54 | 261.13 | 0.8787 | -294.0 | -294.7 | |
| 12.26 | 27.89 | 12.71 | 28.92 | -6.95 | 218.58 | 60.52 | 259.77 | 0.8800 | 638.9 | 414.6 | |
| 0.00 | 3.54 | 0.00 | 3.73 | -8.40 | 218.93 | 60.87 | 258.20 | 0.8847 | 99.0 | 111.2 | |
| 0.00 | 2.63 | 0.00 | 2.72 | -8.23 | 218.32 | 60.26 | 258.27 | 0.8796 | -231.0 | -199.8 | |
| 0.00 | 6.99 | 0.00 | 7.45 | -10.33 | 218.86 | 60.80 | 256.04 | 0.8868 | 524.0 | 410.8 | |
| 0.00 | 1.36 | 0.00 | 1.38 | -7.03 | 217.92 | 59.85 | 259.56 | 0.8746 | 222.0 | 223.5 | |
| 0.00 | 0.82 | 0.00 | 0.84 | -8.37 | 217.98 | 59.92 | 258.06 | 0.8770 | -333.0 | -313.9 | |
| 0.00 | 1.09 | 0.00 | 1.19 | -12.65 | 219.20 | 61.14 | 253.54 | 0.8929 | -329.0 | -301.8 | |
| 0.00 | 1.27 | 0.00 | 1.27 | -6.94 | 217.47 | 59.40 | 259.59 | 0.8708 | -185.0 | -156.9 | |
| 0.00 | 1.45 | 0.00 | 1.48 | -9.06 | 217.67 | 59.61 | 257.22 | 0.8754 | -486.0 | -422.6 | |
| 0.00 | 0.73 | 0.00 | 0.73 | -8.92 | 217.32 | 59.26 | 257.31 | 0.8723 | -464.0 | -489.9 | |
| 0.00 | 0.64 | 0.00 | 0.64 | -8.82 | 217.24 | 59.17 | 257.41 | 0.8715 | -418.0 | -366.9 | |
| 0.00 | 0.82 | 0.00 | 0.79 | -6.25 | 216.38 | 58.32 | 260.18 | 0.8605 | -435.0 | -397.9 | |
| 0.00 | 1.00 | 0.00 | 1.06 | -14.09 | 217.95 | 59.88 | 251.67 | 0.8857 | -393.0 | -233.5 | |
| 0.00 | 1.45 | 0.00 | 1.32 | -9.02 | 213.54 | 55.48 | 256.40 | 0.8393 | -489.0 | -471.8 | |
| 0.00 | 1.18 | 0.00 | 1.07 | -9.23 | 213.43 | 55.36 | 256.12 | 0.8386 | -357.0 | -308.2 | |
| 0.00 | 2.18 | 0.00 | 2.03 | -12.18 | 213.91 | 55.85 | 252.81 | 0.8488 | 340.0 | 284.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
