SDO HMI 2014-07-13 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.08 | 48.34 | 11.78 | 34.49 | 6.51 | 204.09 | 46.02 | 275.14 | 0.7186 | -329.3 | -97.8 | |
|
previous
or next observation for the same group /

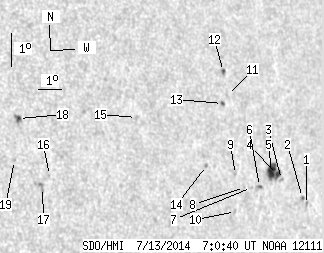

back to the solar disc SDO HMI 2014-07-13 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.53 | 5.01 | 208.01 | 49.95 | 273.06 | 0.7659 | -422.0 | -418.0 | |
| 0.36 | 1.54 | 0.28 | 1.18 | 5.24 | 207.84 | 49.78 | 273.35 | 0.7640 | -567.5 | -514.5 | |
| 0.00 | 1.73 | 0.00 | 1.30 | 5.84 | 206.92 | 48.86 | 274.13 | 0.7534 | -379.0 | -302.1 | |
| 3.18 | 17.62 | 2.38 | 13.14 | 6.00 | 206.75 | 48.69 | 274.35 | 0.7515 | -596.9 | -496.4 | |
| 9.54 | -4.00 | 7.10 | -4.00 | 6.11 | 206.49 | 48.42 | 274.49 | 0.7484 | -803.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.60 | 5.68 | 205.88 | 47.82 | 273.91 | 0.7414 | -653.0 | -583.7 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 5.67 | 205.52 | 47.45 | 273.89 | 0.7371 | -584.0 | -511.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 5.69 | 205.20 | 47.14 | 273.91 | 0.7334 | -605.0 | -538.0 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 6.11 | 204.84 | 46.78 | 274.48 | 0.7291 | -690.0 | -576.9 | |
| 0.00 | 1.73 | 0.00 | 1.24 | 4.98 | 204.72 | 46.66 | 272.93 | 0.7278 | -490.0 | -316.8 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 8.53 | 204.82 | 46.76 | 277.82 | 0.7294 | 584.0 | 379.3 | |
| 0.82 | 2.18 | 0.59 | 1.57 | 9.27 | 204.76 | 46.70 | 278.84 | 0.7292 | 616.9 | 449.9 | |
| 0.64 | 2.00 | 0.46 | 1.44 | 8.30 | 204.56 | 46.49 | 277.51 | 0.7262 | 477.6 | 398.8 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 6.45 | 203.59 | 45.53 | 274.97 | 0.7141 | -781.0 | -611.4 | |
| 0.00 | 2.00 | 0.00 | 1.35 | 8.06 | 200.79 | 42.72 | 277.40 | 0.6797 | 260.0 | 290.9 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 6.46 | 197.06 | 39.00 | 275.15 | 0.6301 | 535.0 | 433.1 | |
| 0.00 | 3.36 | 0.00 | 2.13 | 6.11 | 196.75 | 38.69 | 274.60 | 0.6258 | 714.0 | 644.8 | |
| 1.54 | 5.00 | 0.97 | 3.14 | 8.25 | 196.03 | 37.96 | 278.11 | 0.6172 | 873.3 | 660.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 6.98 | 195.74 | 37.67 | 276.06 | 0.6122 | -365.0 | -384.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
